Specifications
Plasma cutter1.Aviation aluminum
2.Double drive.
3.Imported plasma cutting power
4.Wide compatibility

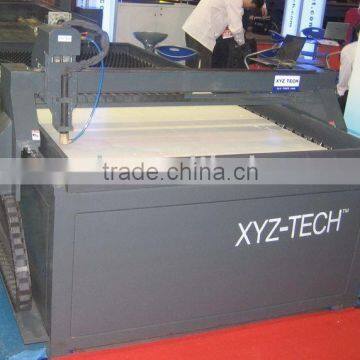

XJ1325 cnc plasma cutter
1. Technical parameters
| Model | XJ1325 | |||||
| Working Area | 1,300×2,500 | |||||
| Gross Power | 500W | |||||
| Cutting speed | 0-8000mm/min | |||||
| Working material | aluminium sheet,metal plate,white steel plate,galvanized sheet | |||||
| Drive mechanism | German imported ballscrew for x,y,z axis | |||||
| Rated power | 60A | |||||
| Cutting thickness | 0.5-8mm | |||||
| In-put power | 3-phase 380V | |||||
| Working type | no touching surface | |||||
| Frequency | 50HZ | |||||
| Operating system | DSP off-line control system | |||||
| Interface | USB | |||||
| Flash Memory | 128M | |||||
| soft ware | Type3, Wentai, ArtCAM software | |||||
| Method of payment | T/T | |||||
| Delivery Time | 20-30 Days | |||||
| Packaging | Standard ExportWooden Box | |||||
| Port of Shipment | Rijeka / croatia | |||||
2. Main features
1.Adopt aviation aluminum, lightweight and move quickly
2.Double drive structure, seamless gear transmission and high quality linear rail ensures the high working accuracy and speed.
3.Imported plasma cutting power which finish cut swiftly and with big power
4.Be able to cut aluminum, steel and any other conductive metal at max speed 8000mm/min
5.Widely compatible with any design software
3.Applicable material : stainless steel, iron panel, titanium panel, aluminum panel,etc.
4.Guarantee & Aftersales Service
Guarantee for one year.
24-hour technical support by email or calling.
User-friendly English manual for machine using and maintaining.
