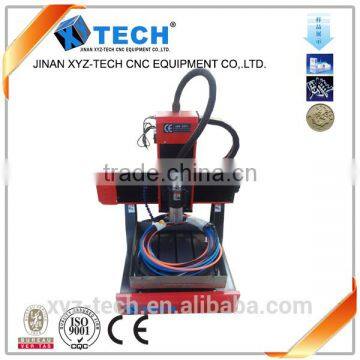

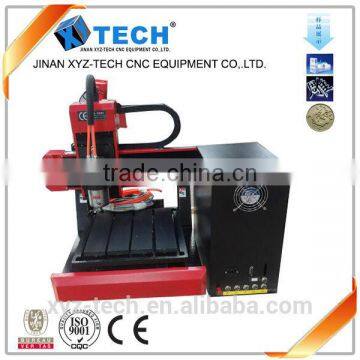

Mini Cnc Router Xj3030 for Metal and Stone Engraving

FOB Price

US$ 2,000 - 5,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Place of Origin	Shandong, China	Brand Name	XYZ-TECH
Model Number	XJ3030	Voltage	220V
Power(W)	800W	Dimension(LWH)	715x699x610mm
Weight	100KG	Certification	ISO/BV/CE
Warranty	One Year	After-sales Service Provided	Engineers available to service machinery overseas

mini cnc router xj3030 for metal and stone engraving

Proper Features

Lathe bed of mini CNC engraving machine is cast wholly and firmly with aliminum alloy and will not deform....
The mini CNC engraving machine is desktop, small, easy to move and use, smart working job with high precision.
High speed driver stepper motor could enhance work efficiency.
Dust-proof and water-proof device makes CNC engraving machine be preventive from dust and water and favorable for maintenance.
Humanlistic design, CNC engraving machine can be disassembled, so it is easily transported.
Applicablematerial:microlite,naturalgranite,seeingstone,marble,bowlder,bluestone ,rostone,glass,aluminum,iron,plastic and wood etc.
Applicable industry: mould and label signage making stone &metal industry.

Technical parameter

X Y Z Working Area	300mm300mm80mm Z Strock can be higher
Drive mechanism	German imported ballscrew for x,y,z axis
Table Structure	T-Slot Extrusions
Table surface	PVC materials
Frame	Cast Iron
X Y Tansmission	Ball screw rod with Round Rail ,Optional:Rack gear, Square Rail.
Z Transmission	Rail linear bearing,Ball Screw Rod.Round Rail.Optional:Square Rail
Engavering accuracy	0.02-0.05mm
Reposition accuracy	0.02-0.05mm
Max air moving speed	8000mm/min
Max working speed	6000mm/min
Spindle Power	0.8KW water cooling spindle without brush.Optional:Self cooling Spindle.
Spindle Max Rotary Speed	24000r/min
Motors and Drivers	Stepper Motor and Driver(Optional:Servo Motor and Driver)
Working Valtage	AC220V/50HZ 3PH(Optional:380V)
Command Language	G c
Operating System	NcStudio PCI Card,Optional:DSP Panel
Interface	USB
Flash memory	128 U Disk
Spindle Collect	ER11-ER20
Running Environment	Temperature: 0°C~45°CRelative humidity: 30%~75%
Packing Tape	Wooden case

sample of mini cnc router xj3030 for metal and stone engraving
