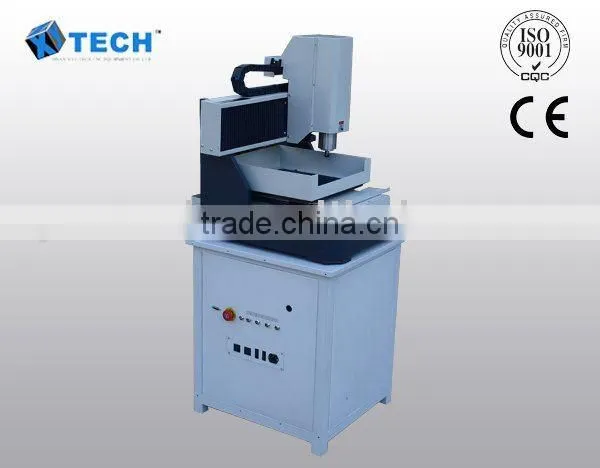

CNC Engraver for Jadestone and Metal

FOB Price

US$ 100 - 8,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	XYZ-TECH
Model Number	XJ3636

Product Description

Specifications

Jadestone CNC Engraver , newest design , water cooling system,wholly iron cast ,moving working table ,square linear way,

Jadestone CNC Engraver,CE Authorized Products,

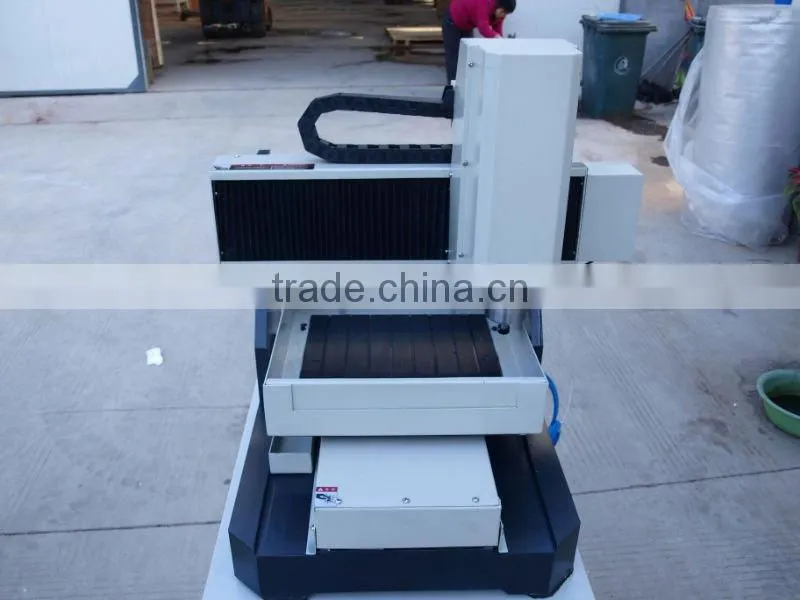

this is the newest model ,with moving working table , water cooling system,integral cast iron frame ,square linear guide way ,and ball-screw transmission for x,y, z axis , more scientific to ensure ensure the parallelism ,verticality and concentricity and grestly increase the precision and speed of the engine bed.

Features:

Integral cast-iron frame, embedded square linear, much more stable and solid structure.
Rolling ball screw from Germany, two nut eliminating clearance, advanced fixing mode of three bearings.
Configured 1.5kw inverter-driven spindle motor cooled by water
Adopt the most advanced DSP controlling system
Easy operation, sturdy, durable, reliable performance, good price,
Dust-proof ,water-proof , up-down working table ,rotary device ,servo system system are optional

Application field:

special for jade plaques engraving,

also for Sign board process, mould, bronzing ,badge, pattern mould, art carve, sign and label etc...

Parameters:

Model	XJ3636 (360x360)
Spindle motor	1.5KW, 800w inverter-driven spindle motor cooled by water
Engraving speed	6000 approximately 12000mm / min
Rotation speed of spindle	approximately 24000 RPM
Engraving tools	3. 175 4 6 (optional)
Format dictates	G-code
transmission	Two-nut rolling ball screws from Germany for x,y,z axis square linear guide way
Resolution	0. 01mm
High Speed	synchronization of processing curves and straight lines can be up to speed of 12m / min
Massive Memory Capacity	Standard Capacity of 128MB, Store 20 files simultaneously makes processing at ease.
Quick Data Transmission	USB interface, work without computer, not occupying computer resources
Multi-Compatibility	Be compatible with popular CAD / CAM
Software	type 3 / Artcam / Casmate / Proe / UG / Artgrave etc.

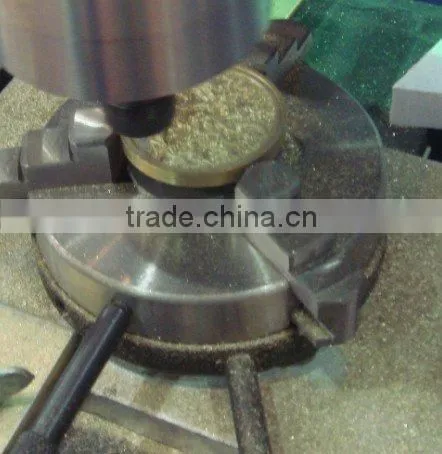

also can work with cylinder and round workpiece
