Engraving Machine(CE)

Engraving Machine(CE) thumbnail-1
Engraving Machine(CE) photo-1
US$ 100 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
XYZ-TECH
Model Number:
XJ1212
Contact Supplier Request Quote Chat Now
Jinan XYZ-Tech CNC Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name XYZ-TECH
Model Number XJ1212
Condition New

Specifications

XJ-1212 engraving machine(CE)flexible,precision,introducing un-space ball from germany technology,align with high power..

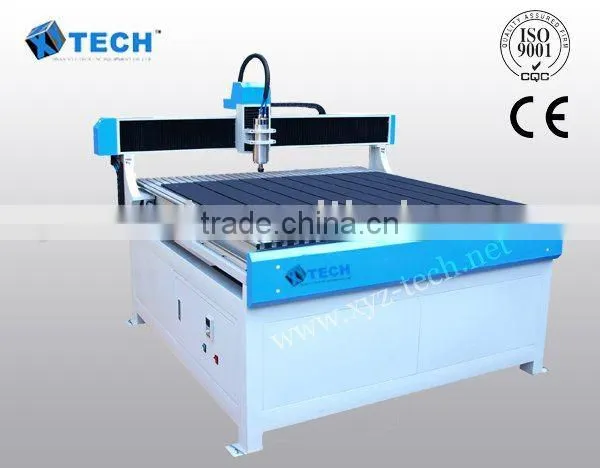

XJ-1212 CNC Router(CE)

Model XJ-1212
Working Area 1,200×1,200×100mm
Spindle Motor 1.5KW Inverter-driven spindle motor cooled by water (or air for option)
Working Mode Stepper motor
Control System DSP off-line control panel with USB interface(128MB) or PCIMC(NCSTUDIO) control system
Drive Mechanism German imported ballscrew for x,y,z axis
Table Surface T-slot extrusions
Frame Cast wholely by Iron
Motion Positioning Accuracy ±0.02/300mm
Repositioning Accuracy ±0.01mm
Max Motion Speed 25,000mm/min
Max Engraving Speed 9,000mm/min
Rotating Speed of Spindle 2,4000rpm
Engraving Tools 3.175mm, 4mm 6.00mm
Dictate Formate G code, *.u00, *.mmg, *.plt/HPGL/NC
Operating Voltage AC220/50Hz
Software Type3 original with Dongle or Wentai , ARTCAM/CAXA
Z high setting Auto Z origin tool high sensor
Packing Size 1850*1710*1400mm
Net/Gross Weight 370kg/420kg
Noise Level Racing LAeep dB(A)72±1
Engraving LAeep dB(A)80±2
Engraving Peak LAeep dB(C)95
Optional Parts Dust Collecting System
Rotary Device
Mist Sprayer & Flume
DSP System w/Portable Control Pad (128MB)



 Proper Features:

1)Intergrated optimization design,high quality aliminum alloy frame,which ensure solid and warp-proof;

2)Flexible,precision,introducing un-space ball screw from Germany,along with high power driving motor,imported couping,movements is more stable and high precision for  long time.

3)High power non-brushing motor,N-CVT,power saving,lower noise,strong cutting capbility,which ensuring batch process for a long life.

4)Restoring function enable the machine stop running automatically while power off,and automatically resume to work when power on ,and also can store the break point fron which for later operation to start,with the function of anticipating working time,auto tool sensor,the rotationg speed and processing depth could be adjusted optionally.



Application:

sign board process,mould,and bronzing moulf,motor,trim injection mould,badge,pattern mould,art carve,dial,font mould,sign and label, Applied in metal, wood and stone processing.



Guarantee&Aftersales service:
exhaust guarantee for half year
24 hour technical support by email or calling
User-friendly english manual and Video CD for machine using and maintaining
