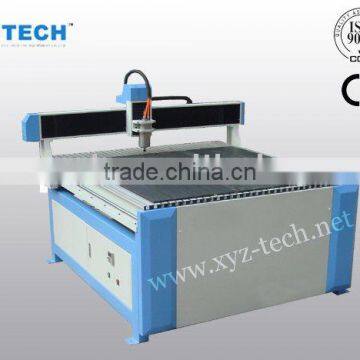

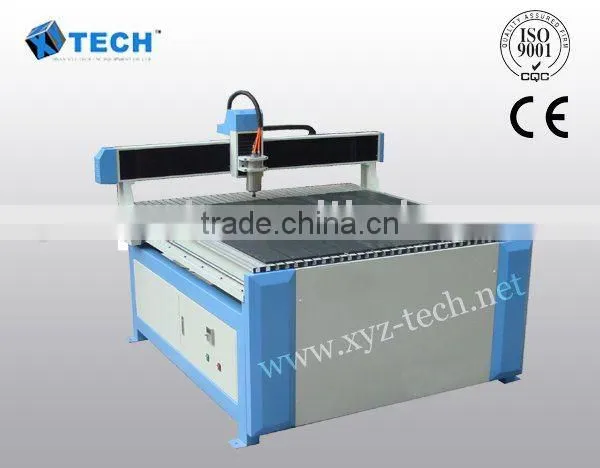

XJ1212 Acrylic Wood Cnc Engraving Machine

Name: XJ1212 Acrylic Wood Cnc Engraving Machine
Brand: XYZ-TECH
SKU: 144439040
Availability: InStock

US$ 100 - 8,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

XYZ-TECH

Model Number:

XJ-1212, XJ-1218, XJ-1224

Jinan XYZ-Tech CNC Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name XYZ-TECH

Model Number XJ-1212, XJ-1218, XJ-1224

Rated Power 350w

Engraving Speed 3~4m/min

Main Axle Rotational Speed 0-24000rpm

Feeding Height 100mm

Milling Cutter Diameter 3.175,6mm

Application metal,acrulic,density board,ABS

Dimensions 1200*1200*100mm

Weight 450kg

Specifications

cnc engraving machie
*1200*1200*80mm working area
* ball-screw transmission for xyz axises
*sexy appearence,easy operation,hi

cnc engraving machine

Technical parameter

Model specification	XJ-1212
Working range	1200120080mm
Reposition accuracy	0.02mm
Working speed	8m/min
Working delicacy	±0.01mm
Spindle power	1.5/2.2/3kw(optional). Invert-driven spindle motor cooled by water(or air)
Driving mode	Step motor
Spindle rotating speed	0~24000rpm/min
Working voltage	110v/220v/380v 50Hz/60Hz
Cutter	Φ3.175, Φ6, Φ12.7
Command	G-codemmgplt.*u00
Control system	DSP(128MB) or PC/MC control system
Drive machine	Gear-wheel on x.y.z axises
Guarantee&Aftersales Service	1 year

Stevendard features

Integrated optimization design, high quality iron cast frame, which ensured solid and warp-proof.
The cnc engraver, equiping introducing un-space ball-screw from Germany technology, aligning with high power driving motor and import coupling, which ensure movement more stable and precision higher, live in a long life time.
High power non-brushing spindle and N-CVT, making power saving, lower noise and strong cutting capability, ensure batch process for a long time.
The operation is easy to learn because of our maching with the top technique in the field. Restoring function enable the machine stop running automatically while power off, and automatically resume to work when power on, and also can store the break point from which for later operation to start, with the function of anticipating working time, auto tool sensor, the rotating speed and processing depth could be adjusted optionally.

Application field

Applicable material:

Chest species, tablet species , building models , signs , metal, wooden models, embossed pictures etc.
