Specifications

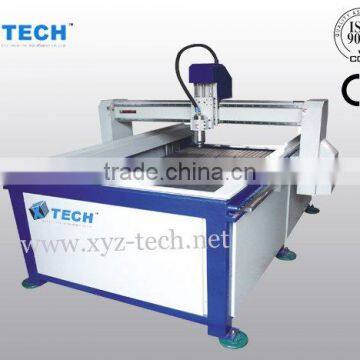

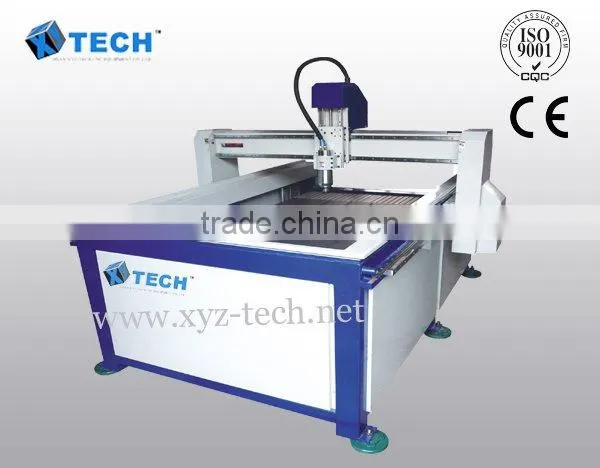

This CNC engraver Applicable to process wooden products, cylinder objects, stone, PVC, and other big thickness material.xj1218 CNC engraver
Applicable to process wooden products, cylinder objects, stone, PVC, and other bid thickness material.
Proper features:
1. The solderless joint athe bed ensures a long term stable working.
2. Equiping with high speed adjustable lifting up-down platform can really achieve big thickness matarial processing and rotary engraving.
3. Standard allocation DSP off-line control wjth 128M memory and extended by USB flash stick.
4. Be compatible with CAD/CAM software like Type3, ArtCAM, Wentai,Proe etc.
Guarantee & Aftersales Service
Guarantee for one year
24-hour technical support by email or calling
User-friendly English manual and Video CD for machine using and maintaining
Technical parameters:
Model | XJ-1218 |
X-Y-Z axis working area | 1,200*1,80000*150mm |
Working table moving size | 400mm |
Resolutions | 0.0254mm |
X-Y movement | Germany imported Rack and pinion ,gear drive |
Z movement | Germany imported Ball screw drive |
Max. speed | 60,000mm/min |
Spindle | 2.2kw,3Kw,4.5kw, water cooling (air-cooling for option), 24,000rpm |
Drive motors | Stepper(optional for servo) |
Working voltage | AC 380V/50-60Hz, 3- phase |
Command code | G code |
Computer interface | USB 2.0 |
Collet | 3.175mm, 6mm, 12.7mm |
Software | Type 3,Wentai, ArtCAM software |
Controls | DSP system with special stand control panel |
Packing | 1,400kgs |
Optional device | Rotary device |
DSP system w/portable control pad(128MB) | |
Vacuum holding, AC380V/50-60Hz,5.5Kw.3 phases | |
Dust collector | |
Oil lubrication system |
