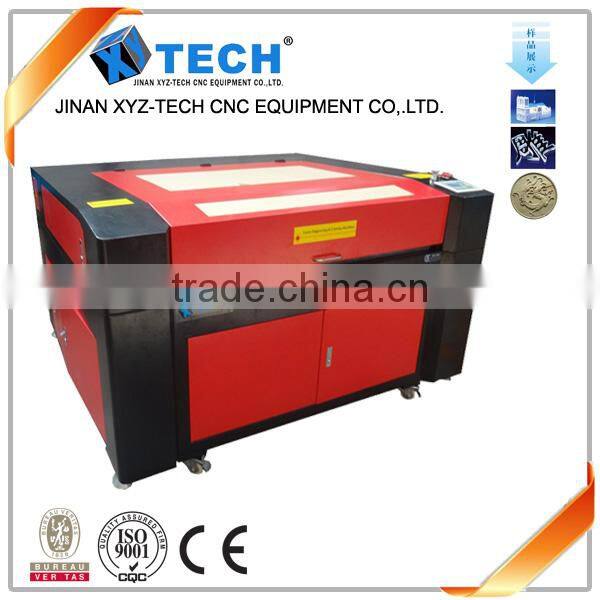

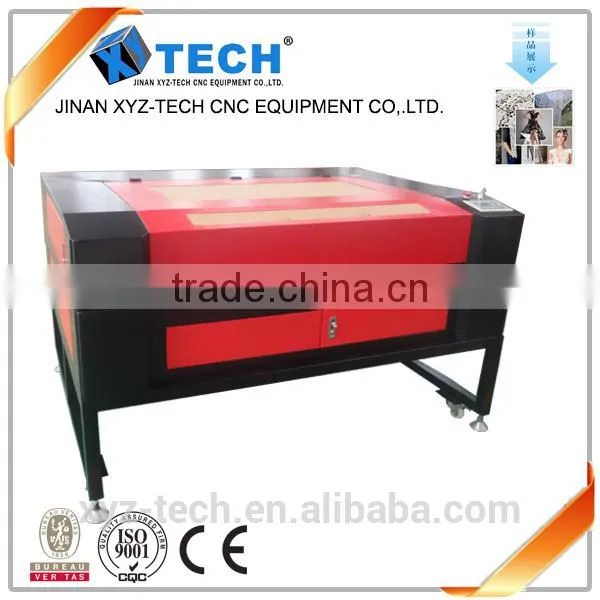

Low cost china portable laser glass cutting machine
1) Scientific and advanced mechanism, imported stepper motor and guide-rails ensures long time movement without adjusting,the machine is durable and steady. Perfect dustproof and pollution defending design grestly improves the machine stability.

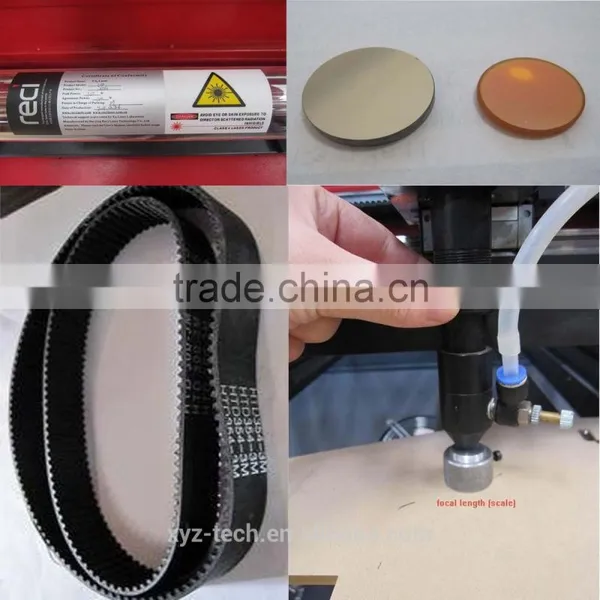

2) Adopting unique optics structure of fly ray, which has low warp,steady and easy adjusting. Imported K9 reflecting lens and ANSE focus lens ,of which reflectivity and penetrability is the most strong among congener fittings,while the facula is thinner with strong power of cutting . It maximum the work efficiency and reduce the cost of movement.
3) Can be restored from power off , resume on break point.
4) Independent developed power of laser tube adopts PWM direct control technology and new switch of high voltage .It can ensure reliable performance and strong ability of anti-jamming.
5) Full-automatic water cooling system can be optional.
6) Back door can be opened to process long material and easily feeding.
7) The latest DSP laser control system has user_friendly windows operation interface , supporting dictate format of DWG, PLT, BMP , DXF ,AI, transmitting files directly from CoreDraw ,AutoCAD etc.
Suitable Material:
It can engrave and cut on most of nonmetal material or painted metals. It is applicable to wood ,playwood ,MDF, ware ,plastics ,resin material,glass,painted metals,porcelain ,ox horn ,cloth,white jade, paper, marble,granite,anode oxidize aluminum, rubber, fiber glasses ,plastic, printting rubbeplank, double color board, synthesize crystal, carton,etc.
Model |
XJ 1390 |
Working area |
1300*900mm |
Laser type |
Hermetic and detached CO2 laser tube, water-cooling |
Laser tube power |
80w laser tube (60w/100w/130w option) |
Cooling system |
Water circulation |
Engraving speed |
1000mm/s |
Cutting speed |
400mm/s |
Engraving depth of acrylic |
2mm |
Cutting depth of acrylic |
5-8mm (depend on different materials) |
Minimum forming character |
1mm*1mm English Letter |
Maximum scanning precision |
0.0254mm |
Positioning precision |
0.01mm |
Communication interface |
USB |
Drive mode |
Step motor |
Power supply |
220V (or 110V) +/-10% 50Hz (or 60Hz) |
Work table |
Blade table/Honeycomb table (electric up&down table option) |
Software included |
Laser cut or RD software |
Design software |
Coreldraw(11/12/X3/X4/X5/X6), AutoCAD(compatible); Photoshop etc. |
Picture format supported |
PLT,DXF,DST,BMP,AI(direct);JPG,GIF,PGN,TIF(conversion) |
Operation system |
Windows2000/XP/VISTA/7/8,32/64Bits |
Color optional |
Blue&white; red&black |
Packing size(mm) |
1820*1350*1300mm |
Gross weight |
450kg |
If you have any questions, welcome to communicate with us.
