Specifications
laser cutting and carvinghigh practicability with USB 2.0 interface output.
Transmit files directly from Coreldraw,AutoCAD

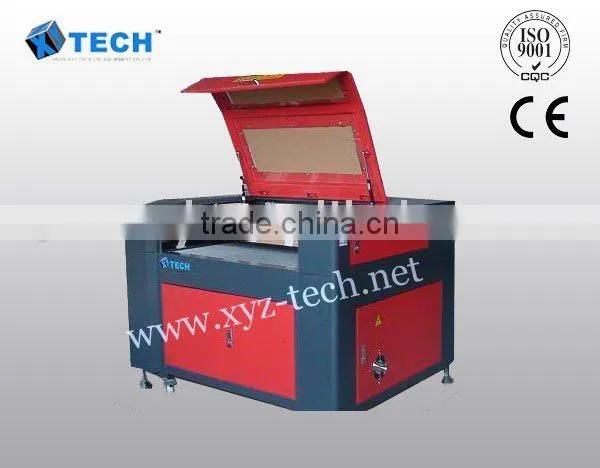

XJ1280 CO2 Laser Engraving Machine (CE Certificate):
Features:
1) Compact and professional design, high practicability.
2) Adopt advanced DSP digital control system, international satndard laser power supply,integrated framework style.
3) USB 2.0 interface output can support off-line working.
4) Transmit files directly from Coreldraw and Auto-CAD.
5) Big power and high stability laser tube,imported lens and mirror, long life-span, one step cutting can reach 30mm thickness on acrylic.
6) Imported linear rail and high quality tapes for transmission, equiping speed-down structure,ensure high quality and high stability cutting.
Specifications:
| Machine Performance:(CE) | |
| Laser-type | Hermetic and detached CO2 laser tube |
| Laser-power | 80W(60W,100W for option) |
| Cooling mode | Circulating-water-cooling |
| Power adjusting | 0-100%controlling,no segment and adjusting by software |
| Machine control and drive | Speedy DSP controlling, steper motor |
| Max engraving speed | 1200mm/s |
| Max cutting speed | 500mm/s |
| Repeating location/Resolution | ±0.01mm/1000dpi |
| Minimum Character | Chinese character 1.5mm, english letter 1mm |
| Max power | 750W |
| Adjustable up-down distance of laser head | 30mm |
| Working travel area | 1,200*800mm, 800mm width with infinity material-feeding |
| Table area | 1250*850mm |
| Up-down range of working table | mechanical 280mm, 260mm with vacuum table |
| Machine dimension | 1,600×1,130×910mm |
| Working voltage | AC220V/110V 50HZ/60HZ |
| Working environment | Temperature:0-45,Humidity:5%-95%,and congeal-water removed |
| Controlling software language | Simplified Chinese,complicated Chinese, English, and procuring of multi-languages |
| Dictate format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw direct outputting |
| Accessories(free of charge): | |
| RD-lasercut original software and necessary attachment like exhaust fan,air-pump, water-pump,air pipe,data cable,power cord are all for free. | |
Optional equipment:
Rotary attachment Dia.130mm (Chuck fixing)
Motorized up-down table
Special water-cooling chiller CW3000 or CW5000
Red-light position
Vacuum Table
DSP Off-line operation with usb flash
Applicable area:
a) Advertising industry:
i) Double-colored board carving
ii) Organic glass carving and cutting
iii) Label carving
iv) Crystal cup carving
v) Warranty signed carving
b) Carved gifts and crafts industry:
i) Wood
ii) Bamboo
iii) Ivory
v) Bone
v) Leather
vi) Marble
c) Packing and printing industry:
i) Rubbery board
ii) Plastic board
iii) Double-layered board
v) Model cutting board
d) Leather clothing industry:
i) Complex characters and pattern carving
ii) Cutting on hypoderm
iii) Synthetic leather
iv) Man-made leather
v) Cloth
e) Architectural model industry:
i) ABS board cutting
ii) Model carving
f) Production totem industry:
i) Appliance signs
ii) Anti-fake commodities marking
