Specifications
XJ6090 mini cylinder laser engraver machine1) 600*400mm working area
2) CO2 laser, USB interface
3) Ce authorized

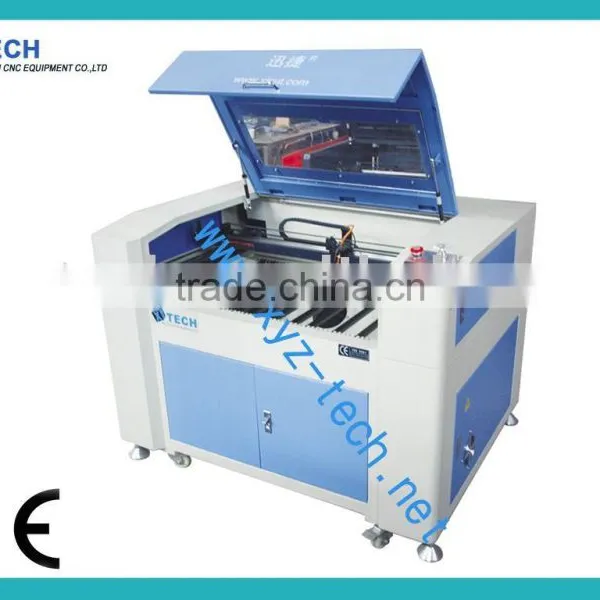

XJ6090 mini cylinder laser engraver machine
1.Machine Performance:
Laser Type |
Hermetic and detached CO2 Laser Tube (RECI) |
laser Power |
40w,60w, 80w for option |
Cooling mode |
Circulating-water-cooling |
Power adjusting |
0-100% controlling, no segment and adjusting by software |
Machine control and drive |
Speedy DSP controlling, 3-phase step motor |
Max Engraving speed |
1200mm/s |
Max Cutting Speed |
500mm/s |
Resolution |
1000dpi |
Repeating location |
±0.01mm |
Minimum Character |
Chinese character 1.5mm, christcross-row 1mm |
Max Power: 750w
Adjustable up-down distance of laser head: 30mm (big thickness available if up-down moving table)
Up-down range of working table: Mechanical 280mm, 260mm with vacuum table
Working voltage: AC110V/220V 50hz/60hz (optional)
working enviroment: Temperature:0-45, Humidity: 5%-95%, and congeal-water removed.
Controlling software language: Simplified chinese, complicated chinese, English, and procuring of multi-languages
Dictage format: .plt/.dst/.dxf/.bmp/.dwg/.al/.las, support Autocad, coreldraw direct outputing.
2.Application:
1) Advertising industry: Double-colored board carving, Organic glass carving and cutting, Label carving, Crystal cup-carving, Warranty signed carvinggg
2) Carved gifts and Crafts industry: wood/Granite, Bamboo, Ivory, Bone, Leather
3) Leather clothing industry: Complex characters and pattern carving, Cutting on Hypoderm, Synthetic Leather, Man-amde Leather, Cloth.
4) Arcitectural model industry: ABS board cutting, Model carving
5) Packing and Printing Industry: Rubber board, Plastic board, Double-layered board, Model cutting board
6) Production totem industry: Appliance signs, Anti-fake commodities marking
3.Guarantee & Aftersales service:
Laser Tube 10,000 hours' working time.
Guarantee the complete machine for one year, except the consumable parts.
24hour technical support by email or calling.
User-friendly english manual for machine using and maintaining.

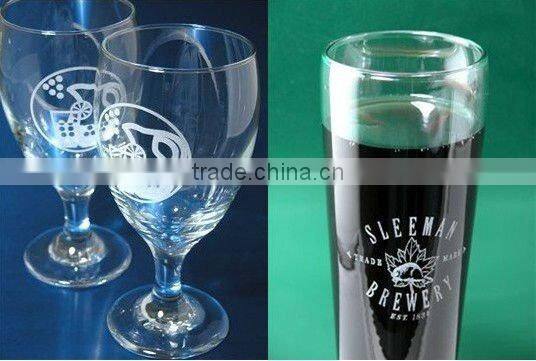

4.sample
