Specifications
Laser wood carving machineElaborate software design
Adjustable laser head and motorized up-down table
Smooth cutting edge

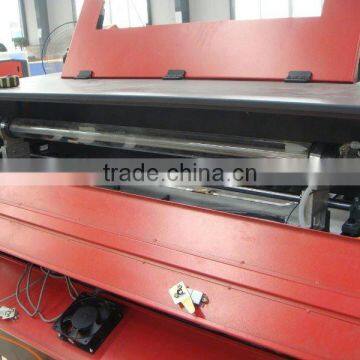

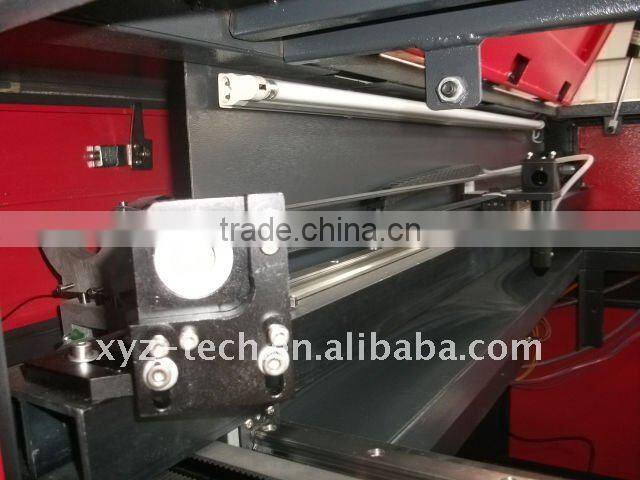

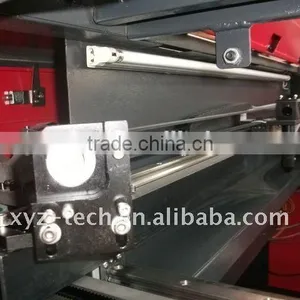

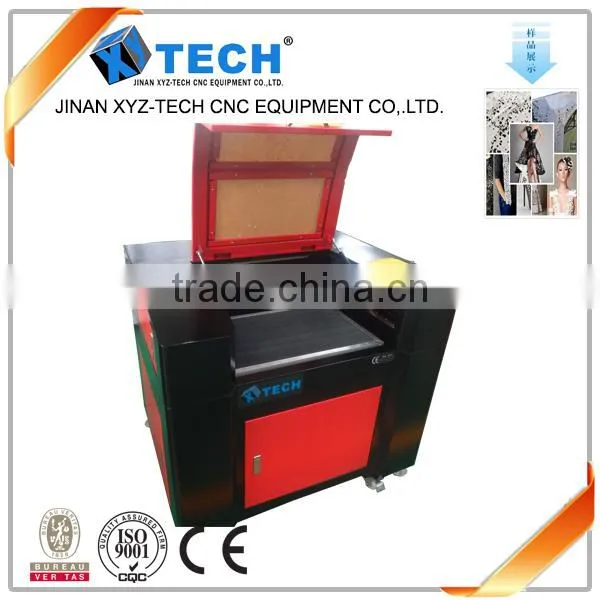

XJ6090 CO2 Laser wood carving machine:
Features and specialities:
1) Reasonable Gantry Structure, Stable laser Path, the whole structure is very firm.
2) Machine consists of solid laser carving machine main parts, RECI CO2 Laser Tube with assoicated laser power supply, water-cooling system. It has the advantage of compact structure, easy operation, stable optical path and other unique features.

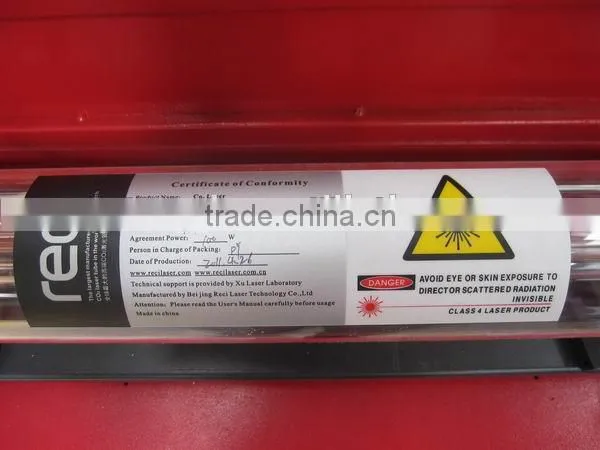

3) We adopt RECI CO2 Quality Laser Tube with Associated laser power supply. Life-span is 10,000hours' working time, 300days warrantited.
4) Welcome you trial order.
Specifications:
Machine Performance: | |
Laser-type | Hermetic and detached CO2 laser tube |
Laser-power | Shanpu 60W(RECI W2-90w,W4-120w,W6-150w for option) |
Cooling mode | Circulating-water-cooling |
Power adjusting | 0-100%controlling,no segment and adjusting by software |
Machine control and drive | Speedy DSP controlling, steper motor |
Max engraving speed | 1200mm/s |
Max cutting speed | 500mm/s |
Repeating location | ±0.01mm |
Minimum Character | Chinese character 2.0mm, christcross-row 1mm |
Max power | 750W |
Adjustable up-down distance of laser head | 25mm |
Working travel area | 600*900mm, 600mm width with infinity material-feeding |
Table area | 1250*850mm |
Up-down range of working table | 280mm |
Working voltage | AC220V 50HZ |
Working environment | Temperature: 0-45°C,Humidity: 5%-95%,and congeal-water removed |
Controlling software language | Simplified Chinese,complicated Chinese, English, and procuring of multi-languages |
Dictate format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw direct outputting |
| Guarantee&Aftersales service : | |
| laser tube 10,000 hours' working time, 300days warrantied. | |
| exhaust guarantee for one year | |
| 24 hours technical support by email or calling | |
| User-friendly english manual and video CD for machine using and maintaining | |

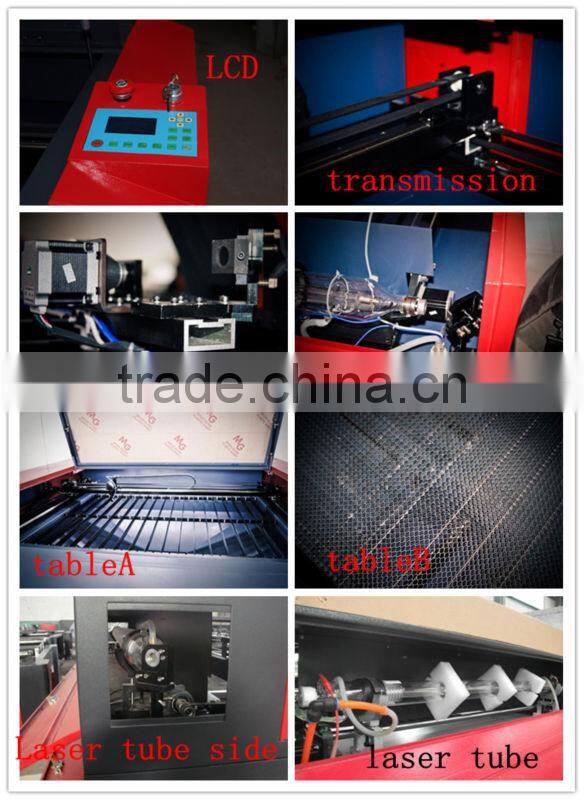

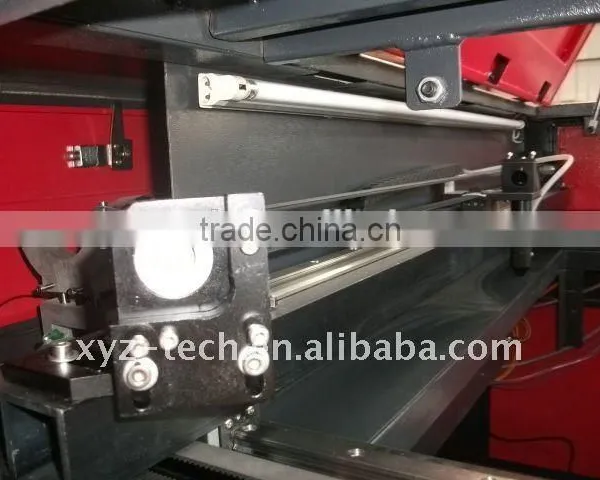

Main Parts of the machine:
Our workshop:
We started to produce Mechanical and Laser Engraving Machine in 1994. Nearly 20 years rich experience in producing saling and service ensures you high quality machine and perfect service.
Our Export Percentage up to 81%~90%.
OEM Service Offered Design Service Offered Buyer Label offered.
We have business relationship with Maersk Sealand, one of the best shipping company in the world. Land, sea and air transportation covering the world to ensure you get your parcel timely.
We have R&D Production Department, Quality Control Department, and Sales &Services Department to offer you top quality machine, perfect after-sales service.
Working Procedure:
What’s the guarantee, in case the machine breaks down?
The machine has one year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
How's the payment?
Telegraphic Transfer(T/T).
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
According to your requirement,we will recommend the best suitable machine for you:
1.What is your Max.size of your processing materials?
2.What kind of material will you work on?
3.Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
4.You also can send your product samples to us.
According to your sample,we will recommend the best suitable machine for you.
If you have any question or need, please feel free to tell me
Warranty and Service:
1.one year equipment warranty and maintenance for lifetime.
2.Free installation and test before sending and free training for operators
3.Advice for the solutions best for customers requirements.
4.free training and sample provided
Jinan XYZ-TECH CNC EQUIPMENT Co.,Ltd specialized in laser engraving machine, laser cutting machine, CNC router, Laser marking machine etc. we are looking for agents and hope to cooperate with you
Looking for agent and distributors all over the world !
