Specifications
mini CO2 laser engraver machine price*high quality,competitive price
*double guide rail
*CE certificate

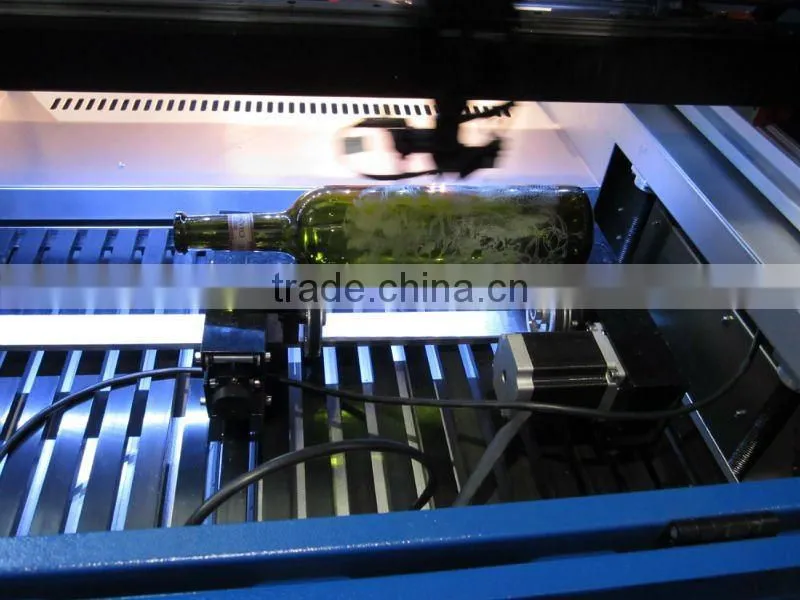

*rotary attached
xj6040 mini CO2 laser engraver machine price
1. Technical parameters:
Machine Description | XJ-6040 Laser Engraving and Cutting Machine |
Machine Performance: | |
Laser-type | Hermetic and detached CO2 laser tube |
Laser-power | 40W (60W for option) |
Cooling Mode | Circulating-water-cooling |
Power Adjustment | 0-100% controllable, no segment and adjusting by software |
Machine Control and Drive | Speedy DSP controlling, stepper motor |
Max Engraving Speed | 1200mm/s |
Max Cutting Speed | 500mm/s |
Repeating Location | ±0.01mm |
Minimum Character | Chinese character 1.5mm, crisscross-row 1mm |
Max Power | 750W |
Adjustable Up-down Distance of Laser Head | 250mm |
Working Travel Area | 600×400mm, 400mm width with infinity material-feeding |
Table Area | 650×450mm |
Up-down Range of Working Table | Mechanical 400mm |
Working Voltage | AC220V 50Hz |
Working Environment | Temperature: 0-45, Humidity: 5%-95%, and congeal-water removed |
Controlling Software Language | English, Simplified Chinese, Traditional Chinese, and procuring of multi-languages |
Dictate Format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw direct outputting |
Body Dimension (L×W×H) | 910×940×1050mm |
Packaging Dimension (L×W×H) | 1120×1050×1140mm |
Packaging | Wooden case |
Gross Weight | 159kg |
Machine Color | Optional |
Delivery Time | 15 days |
Payment | T/T |
| |
Optional Equipment | Rotary attachment |
| Motorized up-down table |
| Water-cooling unit |
| Red-light position |
| Vacuum table |
| DSP Off-line operation with usb flash |
2. Main features
1) Machine body adopts integrally close-in construction, which
makes a even, stable operation.
2) High speed USB2.0 achieves completely off-line work
30 The controlling system includes a 64M EMS memory, which can simultaneously
save different files.
4) Human-computer interface with LCD display, easy operation.
5) The newest intellectualized software, can support direct output of
AutoCAD, CorelDraw, etc.
6) Super laser beam with the merits of narrow lancing, smooth cut edge and
big cutting power
7) Imported linear guide and leather belt transport.
3.Guarantee & Aftersales Service:
Laser tube 2400 hours' working time
Comprehensive guarantee for half year
24-hour technical support by email or calling
User-friendly English manual for machine using and maintaining
