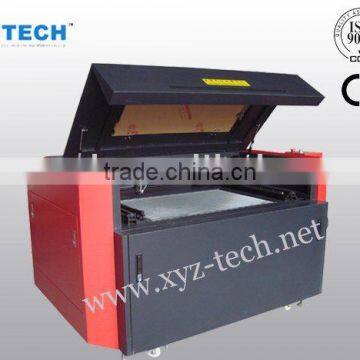

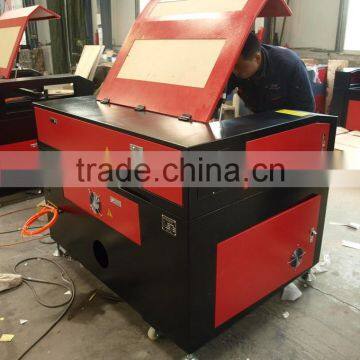

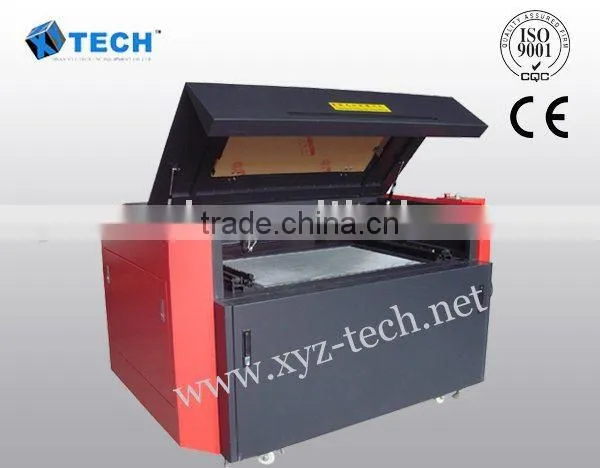

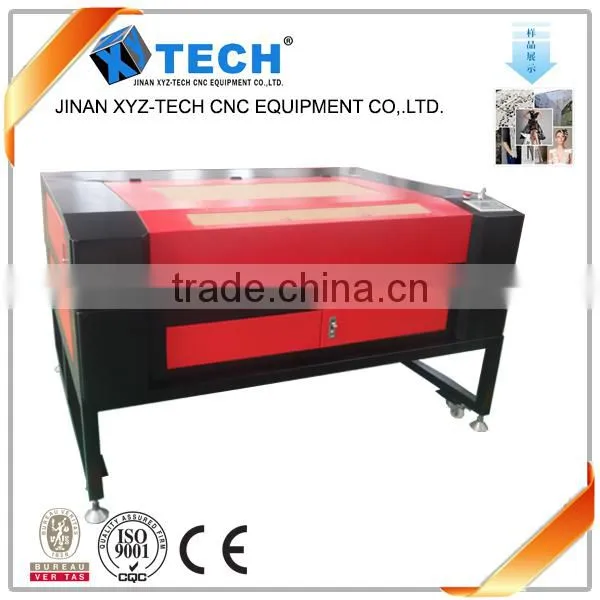

factory direct sale low cost XJ1390 (52''x36'') laser cutting equipment
1.Adopt advanced laser engraving and cutting control system: LEETRO control system/Ruida control software
2.Unique intelligent predictive algorithm and improved control algorithm which ensure the high processing speed and stability.
3.Storage function: The main board has EMS Memory which enables the user to store more than 100 files.
4.Real time regulation: Users can regulate the laser power according to needs to improve the cutting effect.
5.Accurate frame: linear guide seat is onetime molded by aluminum material so that can not be distorted.
6.The linear guide rail, idler wheels and bearings are imported from Taiwan, which makes the machine work very stably and precisely
7. We adopt RECI CO2 Quality Laser Tube with Associated laser power supply. Life-span is 10,000hours' working time, 300days warrantited.
Technical Specification | |
Machine Description | XJ1390 Laser Engraving and Cutting Machine |
Price (FOB Qingdao Port,China) | 90W laser tube as standard |
| 120W // 150W laser tube for option |
Engraving area | 1300*900mm |
laser tuber | 90W // 120W // 150W |
body dimension(L*W*H) | 1720* 1180* 1050mm |
Packing dimension(L*W*H) | 1900* 1300* 1200mm |
Packing | standard wooden case |
Gross weight | 292kg |
Machine color | Optional |
Delivery time | 7-10 days |
Payment | T/T |
Machine Performance: | |
Laser-type | Hermetic and detached CO2 laser tube |
Laser-power | 90W(120W ,150W for option) |
Cooling mode | Circulating-water-cooling |
Power adjusting | 0-100%controlling,no segment and adjusting by software |
Machine control and drive | Speedy DSP controlling, steper motor |
Max engraving speed | 1200mm/s |
Max cutting speed | 500mm/s |
Repeating location// Resolution | ±0.01mm // 1000dpi |
Minimum Character | Chinese character 1.5*1.5mm, english letter 1*1mm |
Max power | 750W |
Adjustable up-down distance of laser head | 30mm |
Working travel area | 1,300*900mm, 900mm width with infinity material-feeding |
Table area | 1350*950mm |
Up-down range of working table | mechanical 280mm, 260mm with vacuum table |
Working voltage | AC220V 50HZ |
Working environment | Temperature: 0-45,Humidity: 5%-95%,and congeal-water removed |
Controlling software language | Simplified Chinese,complicated Chinese, English, and procuring of multi-languages |
Dictate format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw direct outputting |
Recommended Spare Parts | |
Laser tube 90W 120W/ 150w |
|
Reflect-lens |
|
Focus lens |
|
Accessories | |
water-cooling system | 1 unit |
gas exhaust | 1 unit |
air cooling device for laser head | 1 unit |
Professional "RD-laserCut" original sofeware & control card | 1 unit |
laser tube | 1 piece |
We have many model laser machine with different working areas. and you could choose the right model according to the size of your processing materials.
XJ1280: 1200*800mm // XJ6090: 600*900mm // XJ6040: 600*400mm// XJ3050: 500*300mm

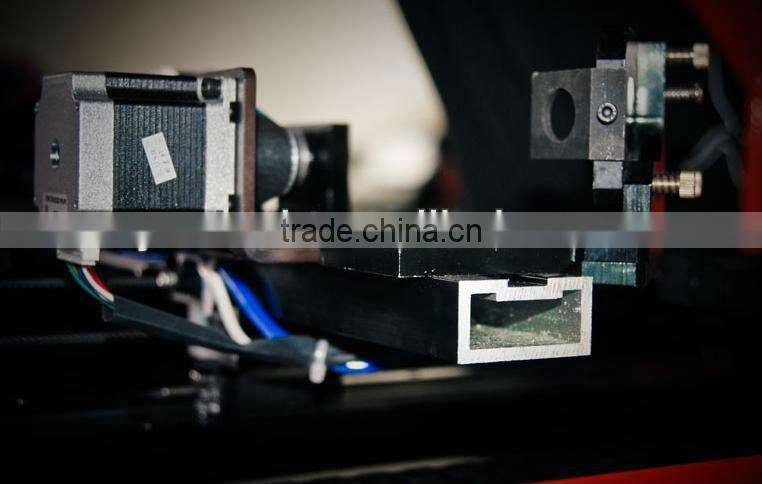

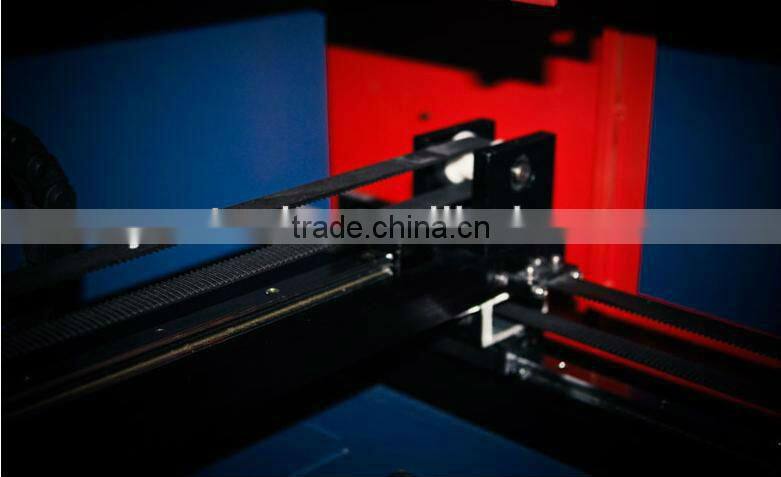

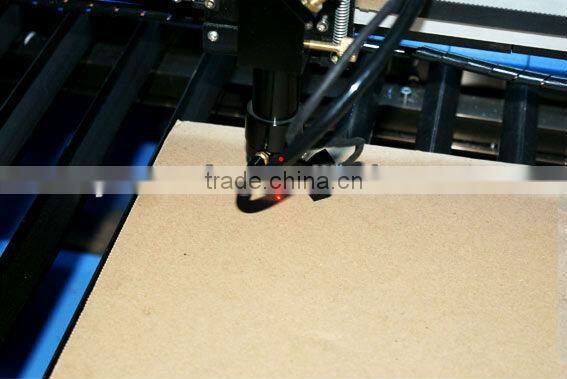

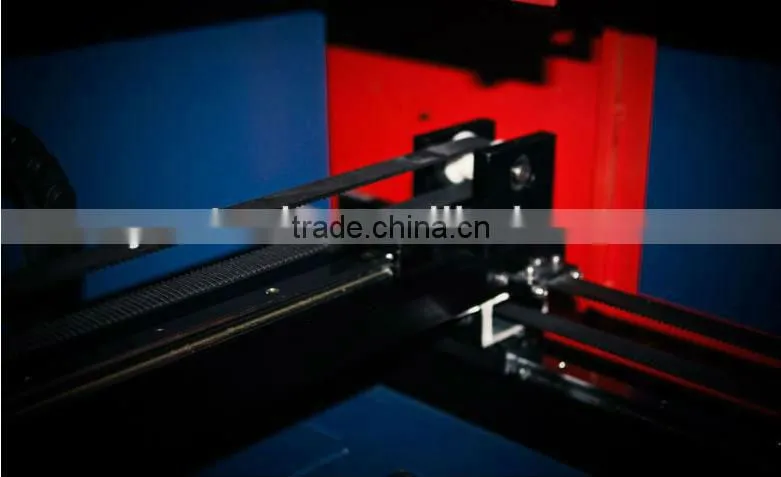

Special Structure for the laser cutting equpiment:

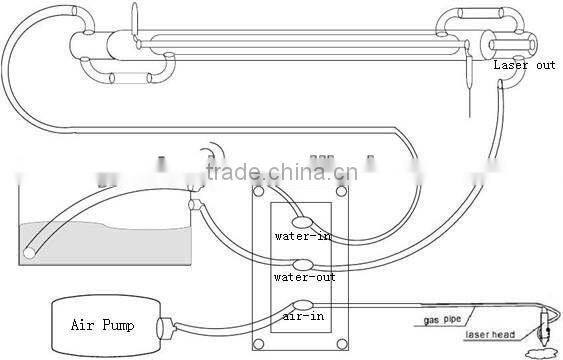

The laser tube installation
Options:

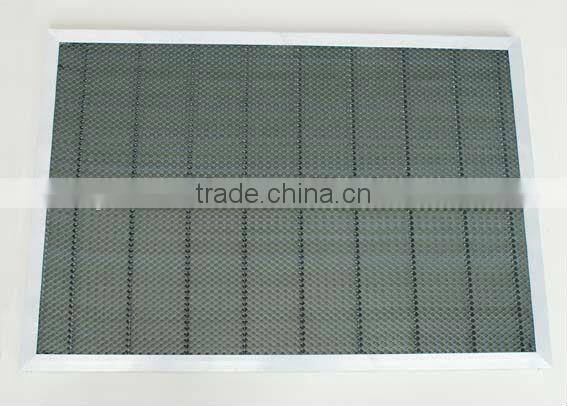

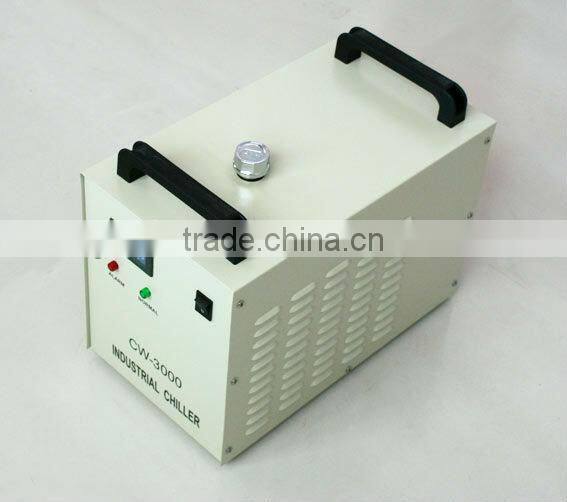

Honeycomb work table Water chiller CW3000

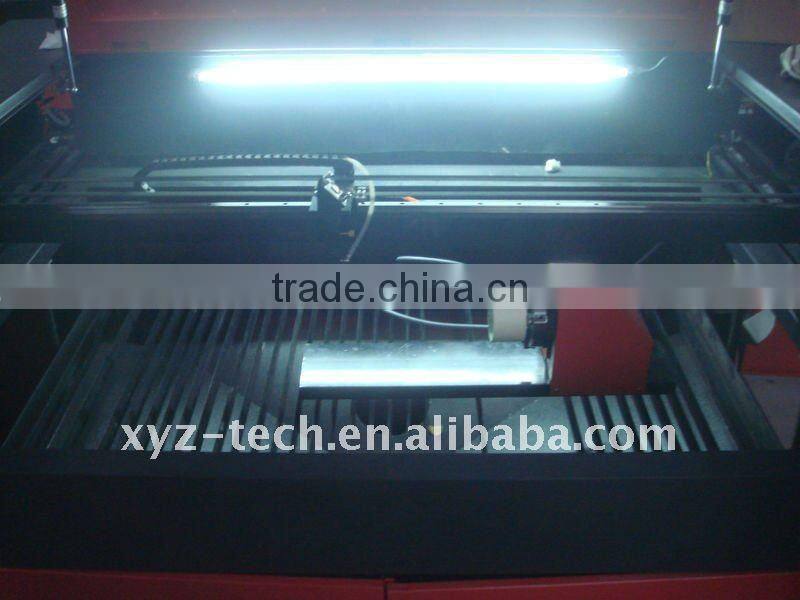

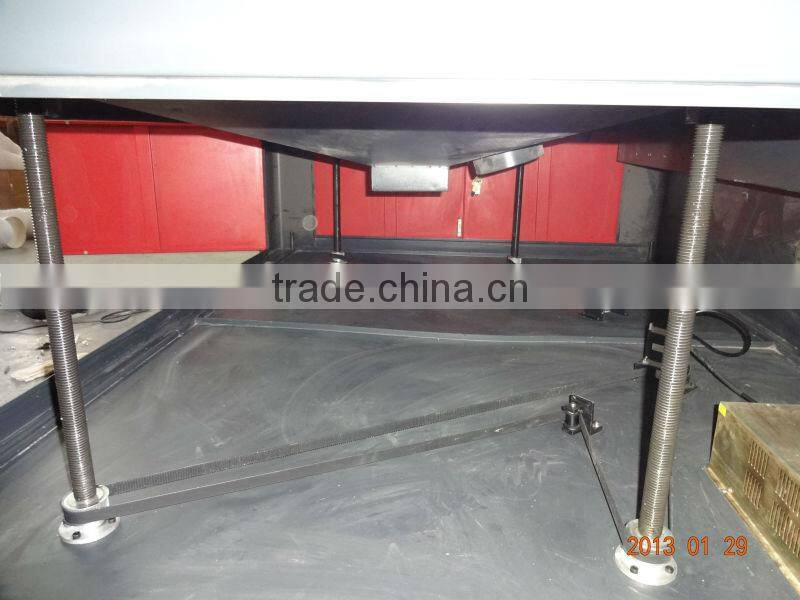

the automatic up-down work table Rotary Device with Dia 130mm

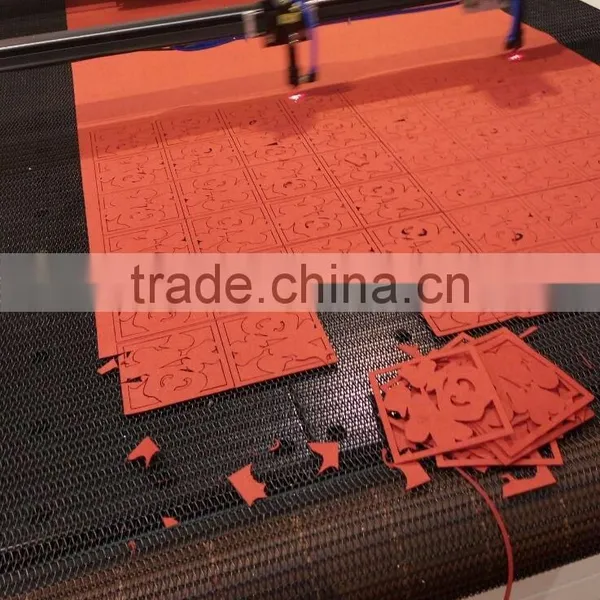

Samples made our LASER CUTTING Equipment:
Application:
1) Advertising industry:
a) Double-colored board carving
b) Organic glass carving and cutting
c) Label carving
d) Crystal cup carving
e) Warranty signed carving
2) Carved gifts and crafts industry:
a) Wood
b) Bamboo
c) Ivory
d) Bone
e) Leather
f) Marble
3) Packing and printing industry:
a) Rubbery board
b) Plastic board
c) Double-layered board
d) Model cutting board
4) Leather clothing industry:
a) Complex characters and pattern carving
b) Cutting on hypoderm
c) Synthetic leather
d) Man-made leather
e) Cloth
5) Architectural model industry:
a) ABS board cutting
b) Model carving
6) Production totem industry:
a) Appliance signs
b) Anti-fake commodities marking
According to your requirement,we will recommend the best suitable machine for you:
1.What is your Max.size for your processing materials?
2.What kind of material will you work on?
3.Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
4.You also can send your product samples to us.
According to your sample,we will recommend the best suitable machine for you.
If you have any question or need, please feel free to tell me.
Guarantee & Aftersales service:
Laser Tube 10,000 hours' working time.
Guarantee the complete machine for one year, except the consumable parts.
24hour technical support by email or calling.
User-friendly english manual for machine using and maintaining.
We started to produce Mechanical and Laser Engraving Machine in 1994. Nearly 20 years rich experience in producing saling and service ensures you high quality machine and perfect service.
Our Export Percentage up to 81%~90%. OEM Service Offered Design Service Offered Buyer Label offered.
We have business relationship with Maersk Sealand, one of the best shipping company in the world. Land, sea and air transportation covering the world to ensure you get your parcel timely.
We have R&D Production Department, Quality Control Department, and Sales &Services Department to offer you top quality machine, perfect after-sales service.
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
Why choose laser cutting equipment ?
Laser cutting technology is widely used in the processing of metallic and nonmetallic materials,
Compared with other cutting methods, laser cutting is characterized by the high cutting speed and quality summarized as the following aspects:
1. Due to the small laser spot, high density and cutting speed, laser cutting will get better cutting quality.
2. Laser cutting incisions are thin and parallel, perpendicular to the surface degrees, available to cut complicated shape work piece.
3. Laser cutting surface is smooth and beautiful, and even can be used as a machining process, without machining, the parts can be used directly.
4. As non-contact processing, after laser machine cutting, heat-affected zone is very small, and the deformation of the work piece, high precision, and greatly improved the quality of the product.
5. High cutting speed, the maximum cutting speed can reach 6-9meter/minute.
6. Friendly environment, low noise and low pollution.
