JQ 6010 Laser engraving machine with removable upper half

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 450 Set / Sets per Month
Port QINGDAO CHINA
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Laser Type	CO2		Place of Origin	Shandong, China
Brand Name	JQ		Model Number	JQ 6010

Packaging Details

Packed with CE standard plywood case with steel pipe pallet. The package is from inside to outside. Preservative film---Foam---Preservative film --- Plywood case ---Enlace steel belt---Paint the mark---Foam(avoid damp)---Over preservative film (avoid damp)

Product Description

Specifications

Laser engraving machine with removable upper half
1.Best CO2 laser tube
2.long life power supply
3.Continue working after off

JQ 6010 Laser engraving machine with removable upper half

1.Performance Features:

1. Configure high power laser tube.

2. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.

3. Owns functions of restoring from power off, continuation on break point.

4.Transmit files directly in Coreldraw, AutoCAD,etc.

5. Adopt international linear rail, more precision.

2.Parameters

Model	JQ-1060
Laser Power	60W
Laser Type	CO2 sealed, glass laser tube, water cooling
Work Area	1000 X 600 mm
Cooling Type	Water-cooled and Protection System
Engraving Scanning Speed	0-60000 mm/min
Cutting Speed	0-1000mm/min
Laser Output Control	1-100% Software Setting
Smallest Character Engraving	English: 1.0X1.0 mm
Highest Scanning Precision	2500DPI
Power Supply	AC 110-220V±10%, 50-60Hz
Operating Temperature	0°-45°C
Operating Humidity	5%-95%
Locating Precision	≤±0.01mm
Supported File Format	DSTPLTBMPDXFAI
Compatible Software	TAJIMACORELDRAWPHOTOSHOPAUTOCADAll Type of AUTOCAD Software in cloth
Slope Engraving	360°Slope Can Be Designed Easily
Driving System	Stepper Electrical Motor
Package Dimension	1600X1110X1300 mm
Net Weight	260 KGS
Gross Weight	280 KGS
Optional Spare Parts	Up-down Worktable, Rotary System, Honeycomb Worktable
Removable Spare Parts	Laser Tube and Lens

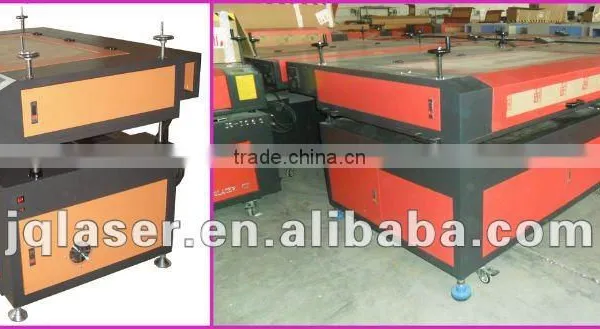

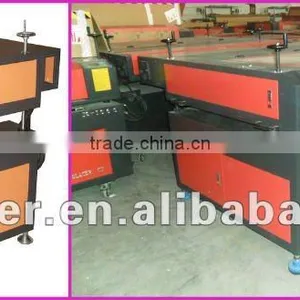

This machine can be put on materials which need to be engraved. So when you engrave large and heavy materials. You need not worry that materials can't be put into the work area of machine, You just put the upper half of this machine on the materials. Then you could start work.
