Specifications
metal laser cutting machine for steel carbon steel1 high power supply
2 high specification
3 for thick me
metal laser cutting machine
The advantages of JQ-YAG-500W metal laser cutting machine
The product adopts YAG solid-state laser optical system. The optical mode is scientific and stable. Anyway, the cut kerfs are very small and precision.
- It adopts dual rails positioning system and ball screw driven system. The machine has the advantages of fast speed, high precision, moving smoothly, dynamic performance and long life.
- X-axis and Y-axis are both equipped with limited switches that used to prevent the crash caused by the over travel. Anyway, there are polyurethane anti-collision blocks on the machine in case of the failure of the limited switches. The limited switches and the blocks guaranteed the operating security.
- With the automatic programming system, the graphic files can be changed into job program directly.
- This equipment adopts mechanical following cutting head. Make use of the photoelectric autofcous, adjusting the focus distance, raising to process the precise degree, keeping the material surface from row wound/ damage,
The product parameters of JQ-YAG-500W metal laser cutting machine:
No |
Items |
Parameters |
Unit |
1 |
Machine Name |
Metal laser cutting machine |
|
2 |
Machine Model |
JQ-YAG-500 |
|
3 |
Laser wavelength |
1064 |
nm |
4 |
Laser pulse frequency |
0.1-500 |
Hz |
5 |
Width of pulse |
0.2- 20 |
ms |
6 |
Working current |
100-400 |
A |
7 |
Laser rated power |
200-500 |
W |
8 |
Laser power source |
18 |
kw |
9 |
Chiller |
5 |
kw |
10 |
X axis,Y axis route |
1300×2500 |
mm |
11 |
Z axis route |
50 |
mm |
12 |
X.Y located precision |
+/-0.05 |
mm/m |
13 |
X.Y repeated located precision |
+/-0.05 |
mm/m |
14 |
X.Y max moving speed |
16 |
m/min |
15 |
X.Y max cutting speed |
4 |
m/min |
16 |
Min line width |
0.2 |
mm |
17 |
Located apparatus |
Red light direction |
|
18 |
Way of air protection |
Coaxial |
|
19 |
Control system |
Software of JQ Laser |
|
20 |
Suitable file format |
dxf,ai,plt |
|
21 |
Driving way |
Servo motor |
|
22 |
Continuous working time |
24 |
H |
23 |
Max cutting thickness (Carbon steel) |
10 |
mm |
24 |
Applied material |
Stainless steel, carbon steel, copper, aluminum sheet and so on |
|
25 |
Machine size |
5.0×5.0×1.2 |
m |
26 |
General power |
12-20 |
KW |
27 |
Electrical source voltage |
380V±10%/50Hz/100A |
|
28 |
Spare parts |
Xe lamp, water, auxiliary gas(N2, O2) |
|
29 |
Grade of laser |
Class IV |
|

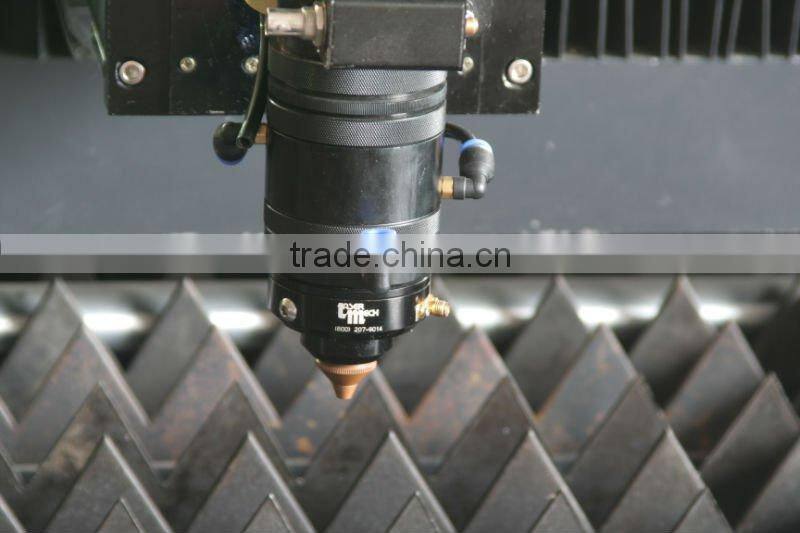

laser head from america

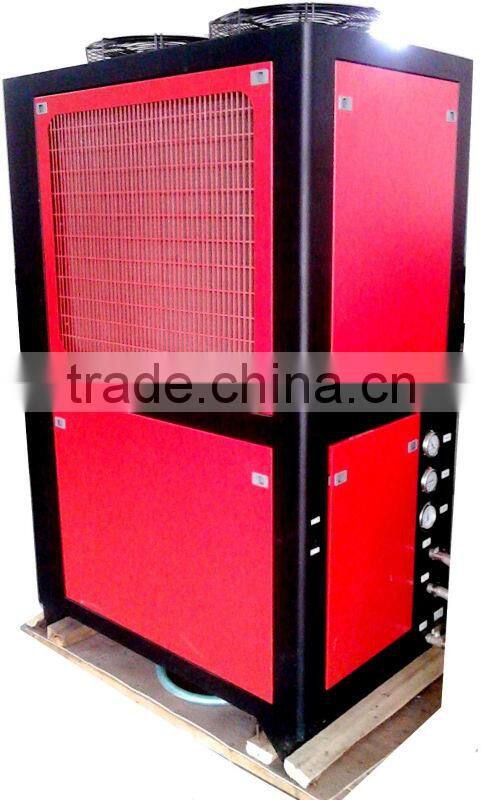

water chiller 7 HP

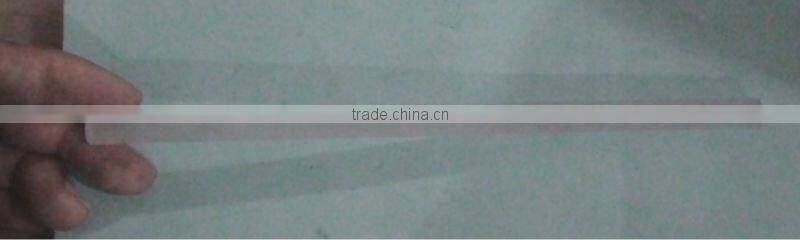

crystal rod

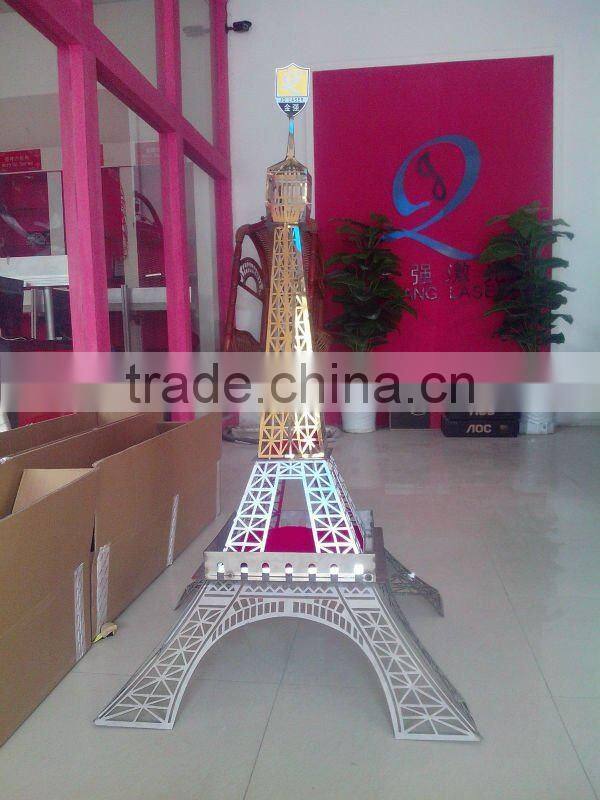

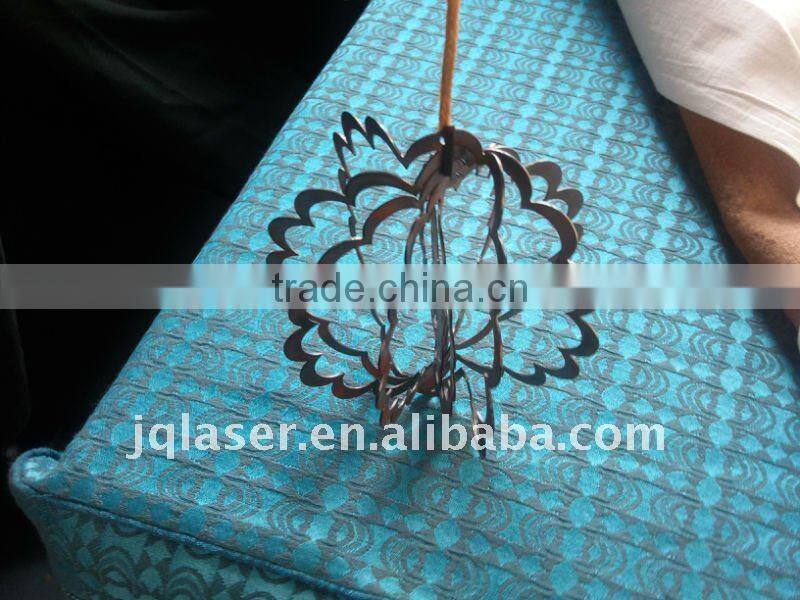

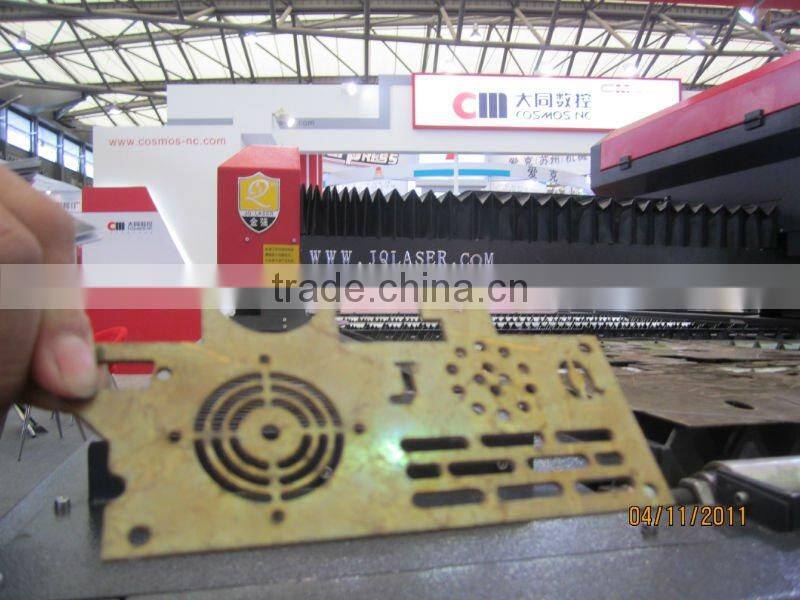

samples

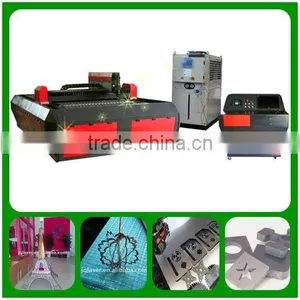

JQ-YAG-500W Metal Laser Cutting Machine
