MEGATRO 110KV SGN-15-18-21 tension transmission monopole

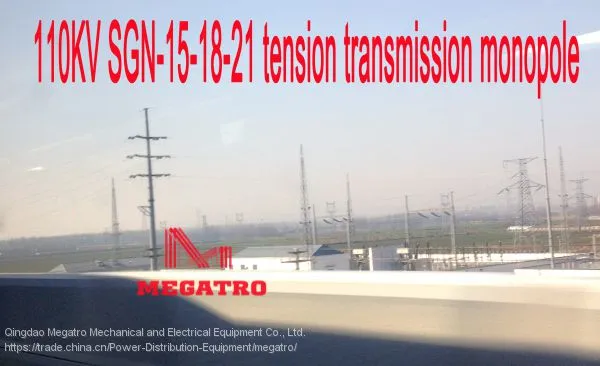

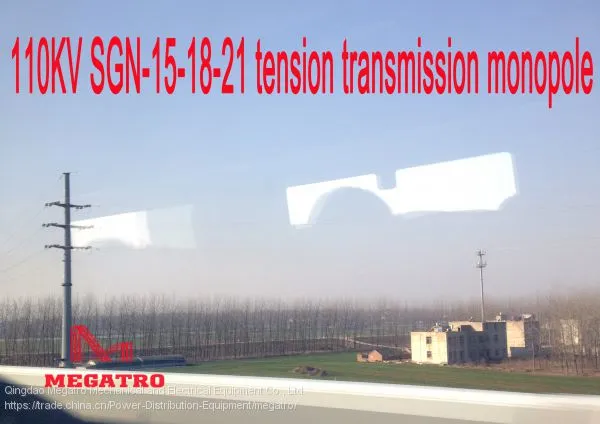

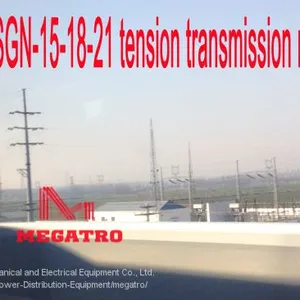

This photo refers to our 110KVTransmission line drum type double circuit tension thin wall reinforced steel pole, with Nominal height15, 18, and 21m.
application condition | ||
Power voltage | pole name | double circuit tension pole |
pole code | SGN-15（18,21） | |
110KV | Transmission lineangle | 0° |
Nominal height(m) | 15.0（18.0,21.0） | |
design condition
| Horizontal span(m) | 120 |
Vertical span(m) | 150 | |
Climate condition
| Max.Wind speed(m/s) | 25 |
Conductor Ice thickness(mm) | 5 | |
Mini. Temperature(℃) | -20 | |
Max. Temperature(℃) | +40 | |
Remark：1 All pole earth wire protection angle to conductor is below 20°. 2 All pole adopt thin wall reinforced concrete steel pole structure. 3 In order to reduce transersal welding, all pole section length at least 12m. 4 Both conductor and earth wire cross-arm are resquare hexonal taper structure and connect with pole body by flange.. 5 All conductor and earth wire cross-arm top covered by welded plate. 6 Pole deflection is controlled within 20%. | ||
Remark: above technical data only references for our client, we can design every type for our overseas clients.
MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Our MEGATRO provide and design this 110KV SGN-15-18-21 tension pole mainly for our Chinese and overseas client. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.
A complete selection of towers including self-support, lattice steel tower, monopoles and guyed towers, form custom-designed radar towers to broadcast towers and energy infrastructure. MEGATRO carries a variety of related products including fall protection, transmission lines, antennas, obstruction lights, and accessories, and other products if client need, MEGATRO also tailored product as per client condition.
MEGATRO mainly design all kinds of towers and posts for:
a. Telecoms
b. Power transmission
c. TV and Radio Broadcast
d. Roads and City Development
e. Wind energy solution
f. Steel structure and workshop
Our complete selection of towers includes:
a. Self-supporting
b. Monopoles
c. Guyed towers
d. Custom-designed radar towers
e. Broadcast towers
f. Power transmission
MEGATRO also designs and manufactures tower related products including:
a. Fall protection
b. Antenna brackets
c. Other accessories if needed by clients
Today, with over 10 years of experience and our commitment to excellence, MEGATRO remains an industry leader in the manufacture and design of steel tubular & angular & monopole structures for all Highway, Municipal, Custom, telecom, lighting and electric Utility applications. MEGATRO has a complete staff of professional engineering personnel trained in the PLS Pole program and three different manufacturing processes for producing steel towers, poles and other supports. We utilize the latest versions of PLS-CADD, PLS-POLE, TOWER, AutoCAD and other CAD software.
MEGATRO performs in-house design activities specializing in electrical overhead transmission &telecom tower steel works, which include wind and earthquake loading, static analysis, stress analysis by finite element methods and fatigue. Our Engineering Department is boasting of highly qualified engineering who are conversant with international codes and standards. The work is carried out with extensive use of CAE/CAD via a large of computer network. The computer hardware & drafting software are liked to the CNC workshop equipment for downloading of information thereby eliminating error and saving valuable production time.
Besides, MEGATRO is one of the few manufactures who assemble a face of 110KV SGN-15-18-21 tension pole This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies. After fabrication all 110KV SGN-15-18-21 tension poles are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers. MEGATRO' 110KV SGN-15-18-21 tension pole systems can accommodate a variety of cross-arm. MEGATRO also offers a wide variety of accessories and mounts
