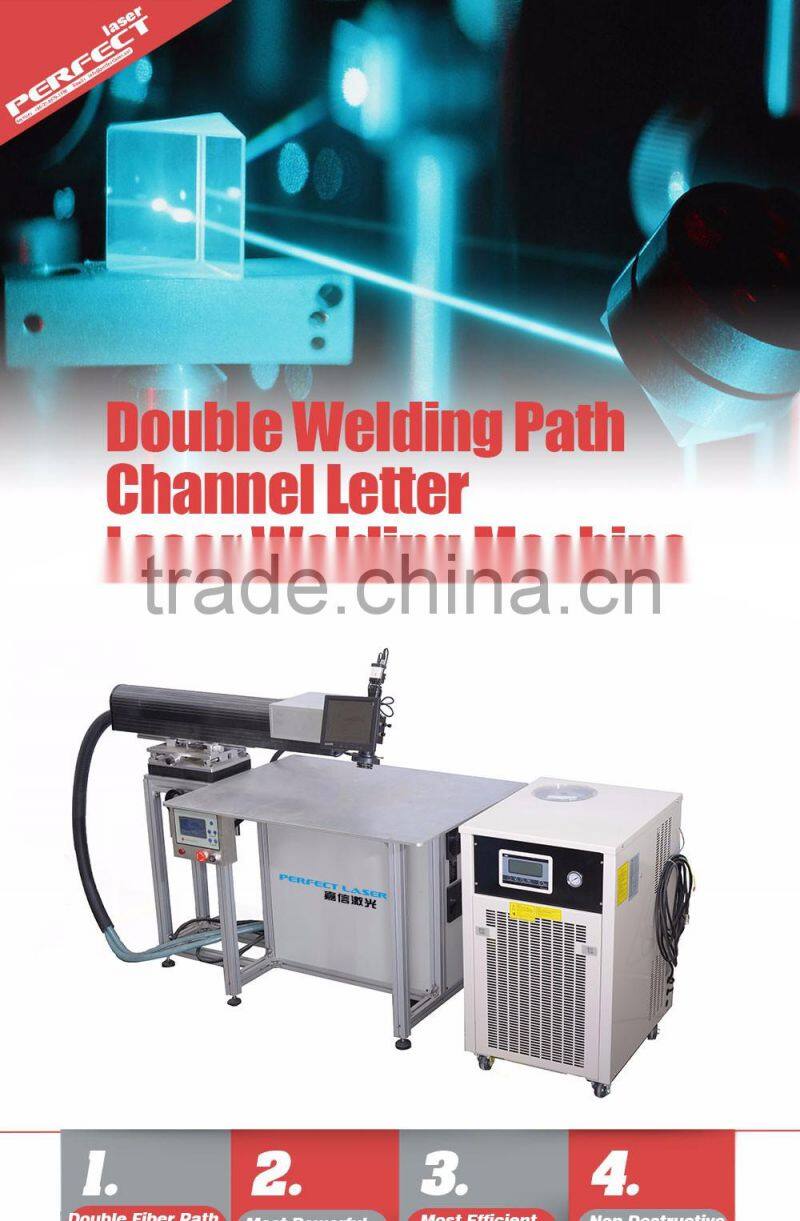

Perfect Laser PE-W400II 400w Fiber China Stainless Steel Laser Welding Machine
Application of China Stainless Steel Laser Welding Machine:

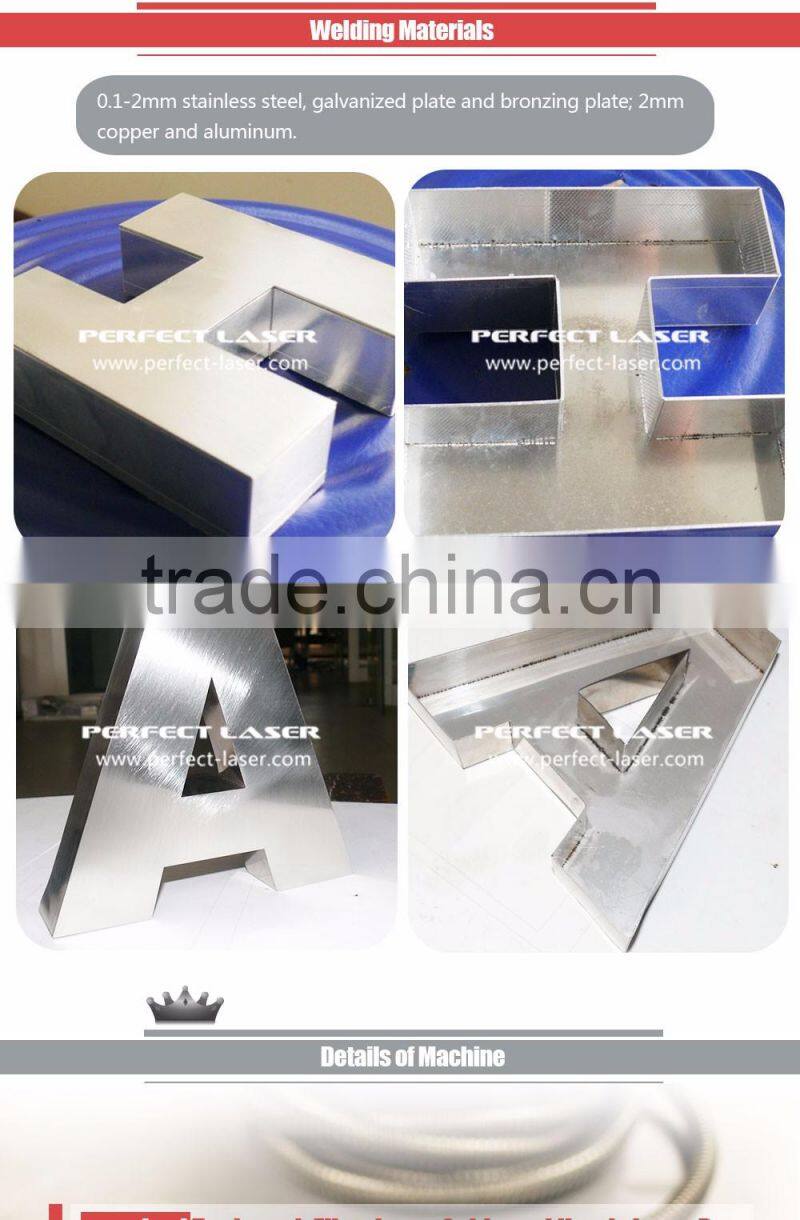

Advertising letter laser welding machine is used for making a variety of stainless steel letter, LED luminous characters, LOGO, signs and other fast welding.

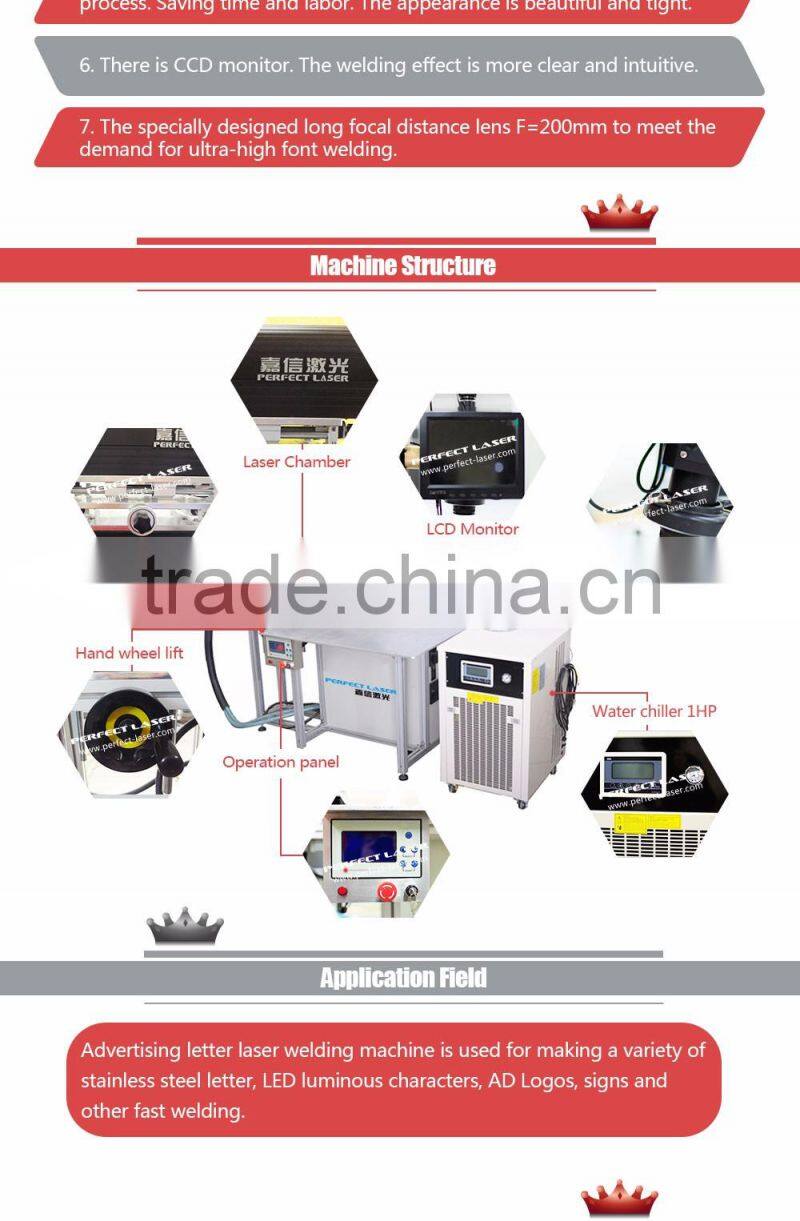

Features of China Stainless Steel Laser Welding Machine:

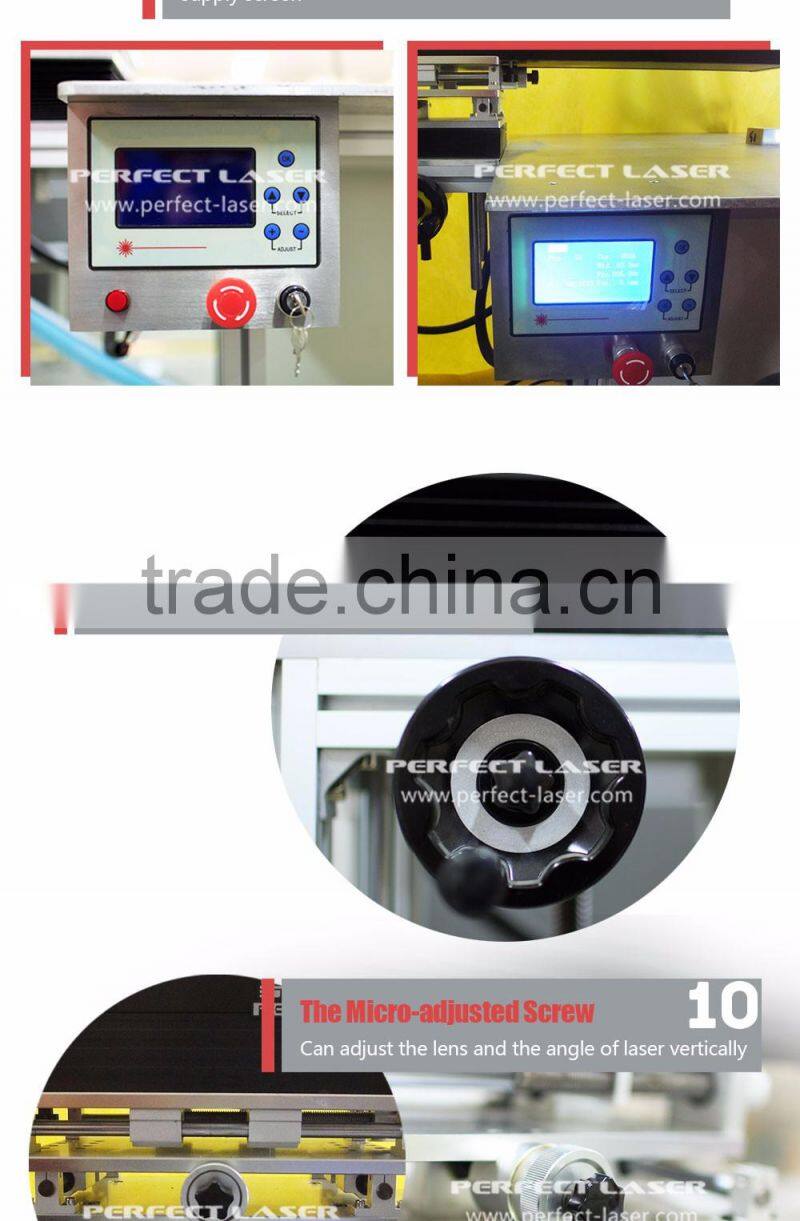

1.Laser head can electrically move back and forth, up and down, left and right and rotate 360 degree.
2. Heat affected zone is small. The work piece surface will not deformed.
3. For letters in the advertising industry, there is specially lengthened optical path and th elescopic scope can be added to 800mm.
4. There is no raised spot after welding. No requirement of polishing process. Saving time and labor. The appearance is beautiful and tight.

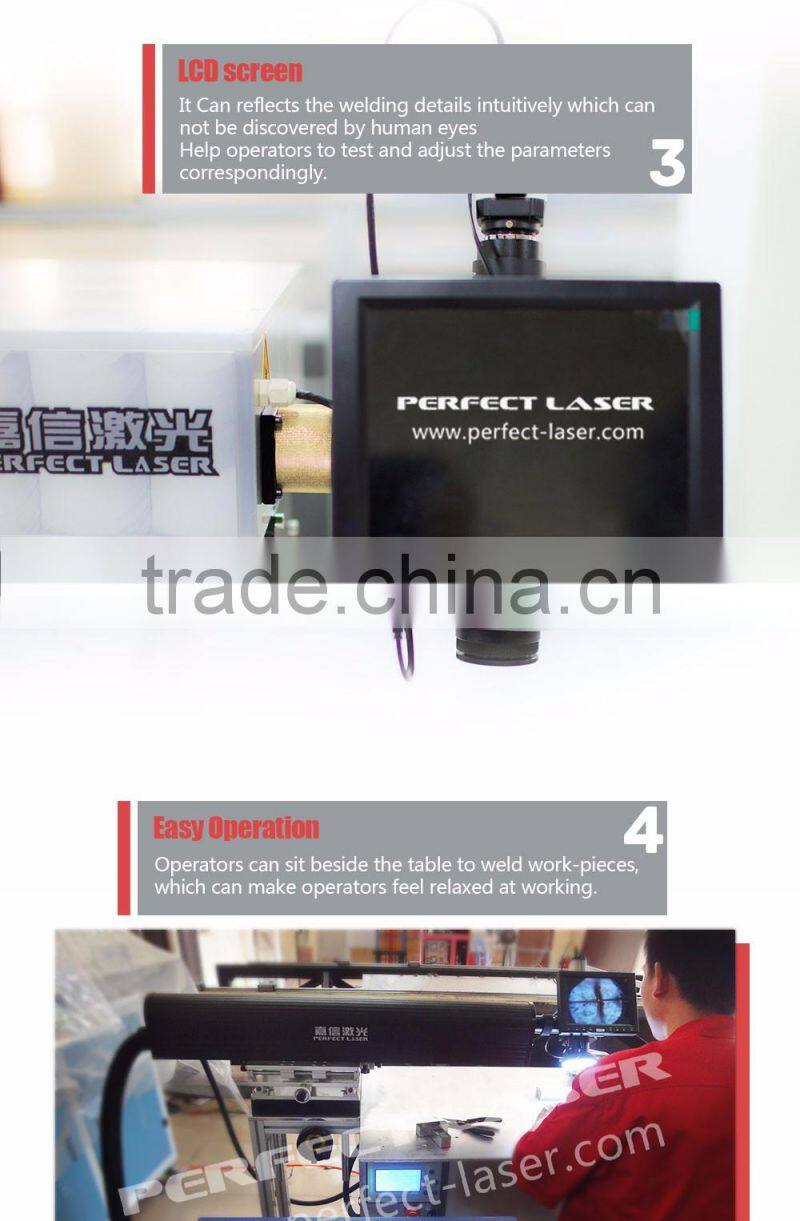

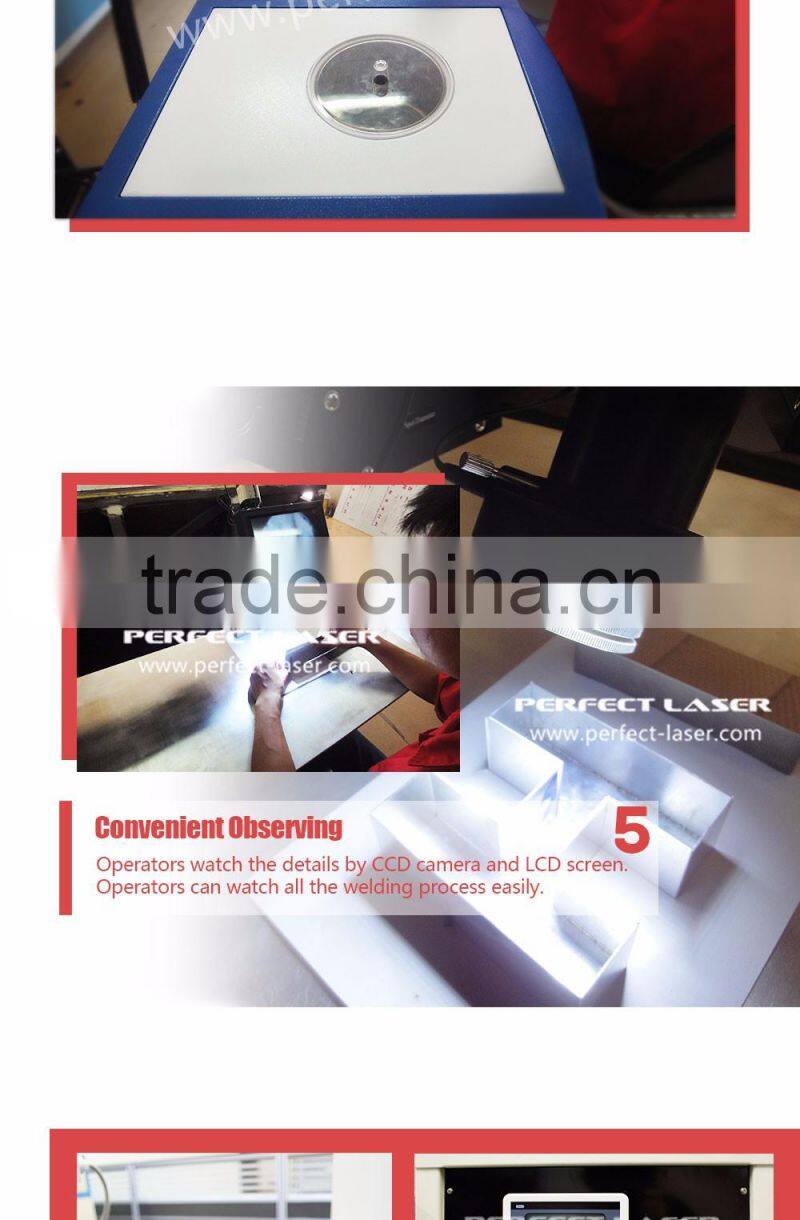

5. There is optional CCD monitor. The welding effect is more clear and intuitive.
6. The specially designed long focal distance lens F=200mm to meet the demand for ultra-high font welding.
Technical data of China Stainless Steel Laser Welding Machine:
PE-W400 China Stainless steel laser welding machine | |
Max laser power | 400W |
Laser wave-length | 1064nm |
Single power energy | 90J |
Welding depth | 0.1-1.2mm |
Pulse width | 0.3-20ms |
Welding frequency | 0.5-40HZ |
Adjustable facular size | 0.2-2mm |
Power consumed | ≤9KW |
Electrical source | 220V±10%/50Hz/40A |
Standard worktable | 800*1000mm |
Positioning | Optional CCD + Red Dot |
2-linertary | 200mm |
Mobile level | 200mm |
