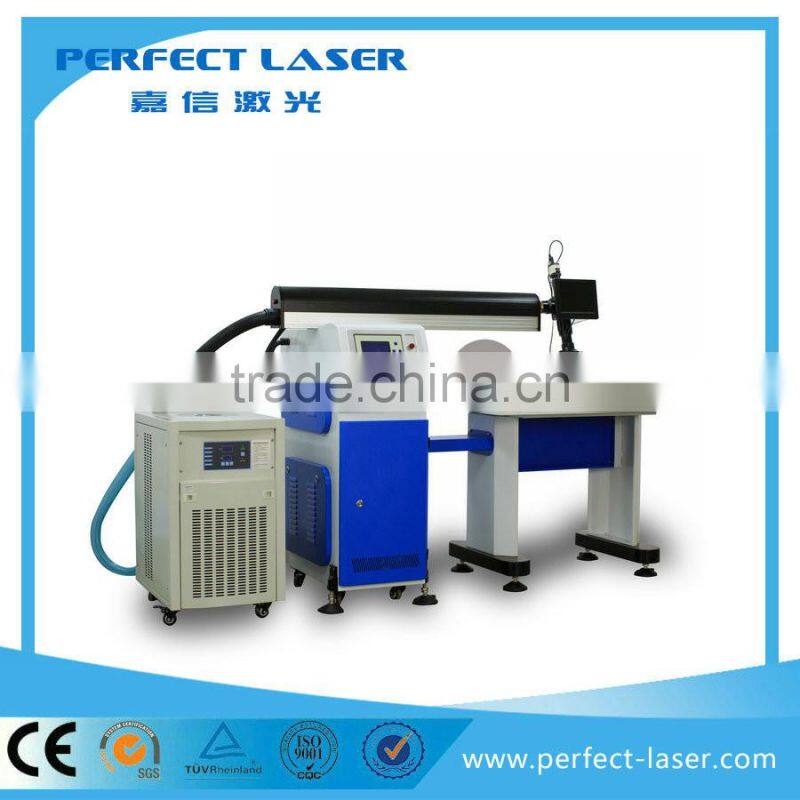

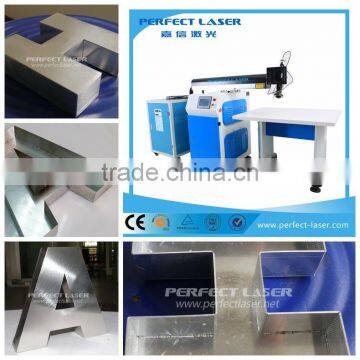

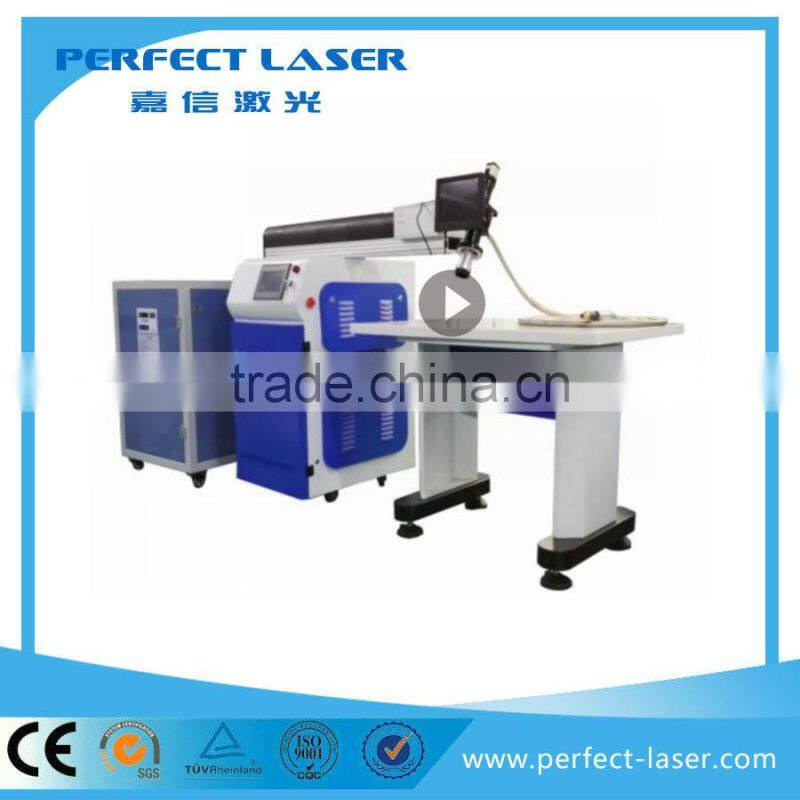

3d Letter CNC Laser Welding Machine For Advertising Sign 300w 450w

Name: 3d Letter CNC Laser Welding Machine For Advertising Sign 300w 450w
Brand: Perfect Laser
Price: USD $5,000 - 9,500 / Set

FOB Price

USD $5,000 - $9,500 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Shanghai/ Shenzhen
Payment Terms:T/T L/C Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Hubei, China	Brand Name:	Perfect Laser
Model Number:	PE-W500	Single Pulse Energy:	90J	Pulse Width:	0.3-20ms
Wavelength:	1064nm	Focal Spot Diameter:	0.2-2mm	Max. Output Power:	9KW
Dimensions:	1850mmx700mmx1380mm	Usage:	Sign Letter Laser Welding Machine	Power(W):	300W 450W 500W
Certification:	CE	Warranty:	1 Year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

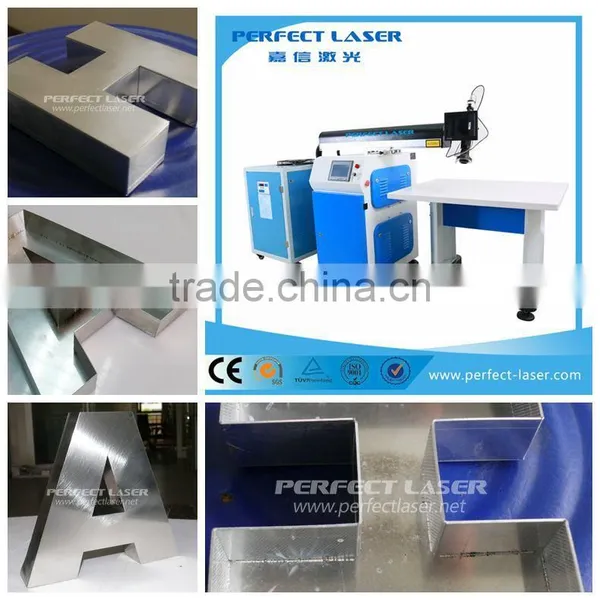

300w 450w 500w Automatic Channel Letter Welding Machine in Sign and Advertisement

Skype: perfectlaser08 Whatsapp: +8613659885038 mail :

Product Application

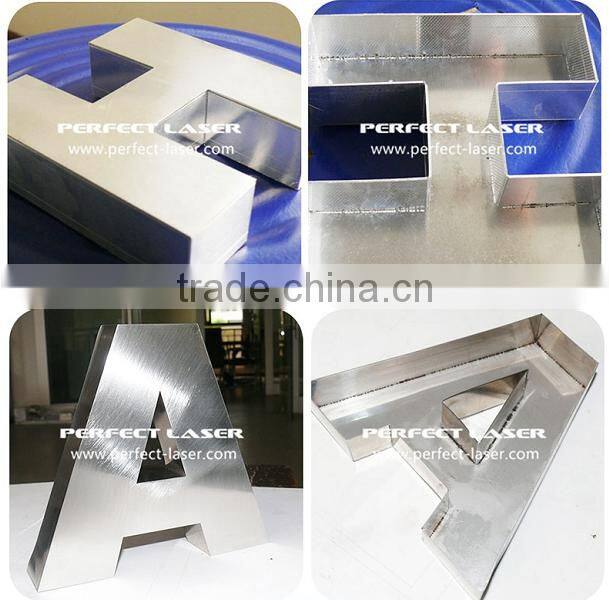

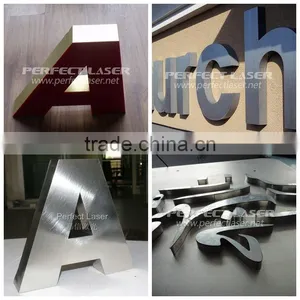

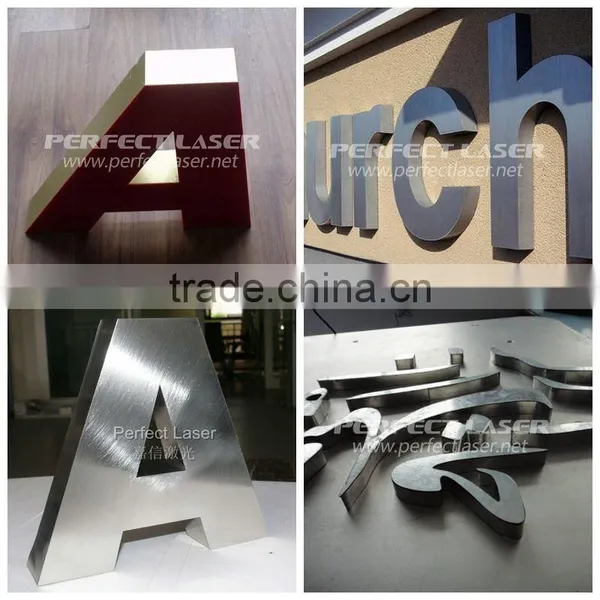

Perfect Laser ! 500W Single Path Advertising Channel Letter Letter Words laser welding machine is used for making a variety of stainless steel letter, LED luminous characters, AD Logos, signs and other fast welding.Logo making, fine word production, metal word production, Copper factory, advertising production company, and so on.

0.1-2mm stainless steel, galvanized plate and bronzing plate; 1mm copper and aluminum.

Technical Data
Model	PE-W300	PE-W500	PE-W300-II	PE-W500-II
Name	300W Laser welding machine	500W Laser welding machineKw/rpm	300W Double light path Laser welding machine hand held	500W Double light path Laser welding machine hand held
Machinery Part	Laser cavity length of 1100 mm, the laser head can rotate 360 degrees.
Working Area	750*1000MM
Load Bearing	≤200KG
Machine Power Supply	220V±10%/50/60Hz	380V±10%/50/60Hz	220V±10%/50/60Hz	380V±10%/50/60Hz
Laser Type	Nd:YAG impulse xenon lamp
Spot Size	0．2-3．0mm
Laser Wave Length	1064nm
Impulse Width	≤10ms
Laser Power	300W	400W	300W	500W
Single Pulse Energy	90J	120J	90J	120J
Impulse Rate	≤30Hz	≤50Hz	≤30Hz	≤50Hz
Laser Power	500W	400W	300W	500W
Single Pulse Energy	120J	120J	90J	120J
Impulse Rate	≤50Hz	≤50Hz	≤30Hz	≤50Hz
Laser Output Focal Length	150-250mm	150-250mm	150-250mm Laser head120mm	150-250mm Laser head120mm
Laser Cooling	Water cooling
Cooling Capacity	2700W	5000W	2700W	5000W
Total Power	<7KW	<12KW	<7KW	<12KW
Viewing System	CCD

Main Features

1.Red light finds the welding point fast, CCD intuitive observation, optional microscope.
2.Marble working platform, to ensure that the bright face plate does not scratch.
3.Machining speed, dedicated fixed focus position of the rotation of the bearing rod, without the need for CCD and microscope. It can quickly focus on the welding.
4.Small thermal deformation and heat affected zone.
5.local heat treatment can be carried out on the metal word;
6.Available for the processing of complex shape of parts and small words.
7.Processing without noise, no pollution to the environment;
8.Ultra fine bearing rotating positioning rod, friction plate welding word, also need not adjust the spot position in the font corner.
9.Owing to the advanced processing method, the quality of the existing metal character is greatly improved.
10.LED ring special lighting lamp, no dead spot.
11. The self-produced high peak laser power supply, for other brand is difficult to weld aluminum. The machine can easily achieve (400W models for welding aluminum models).
12 standard models and double light path optional hard light welding small, 5 meter long fiber welding with Chinese characters.

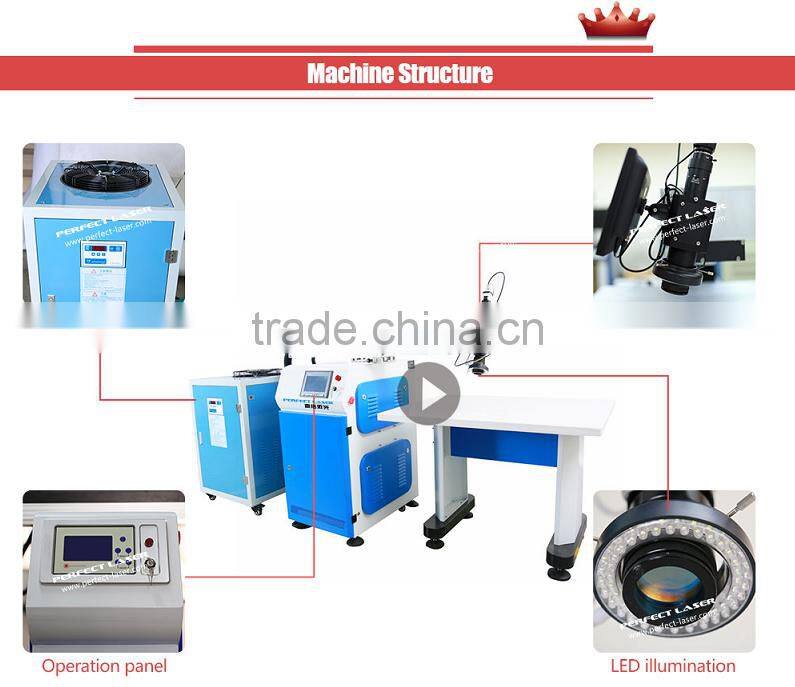

Detailed Images

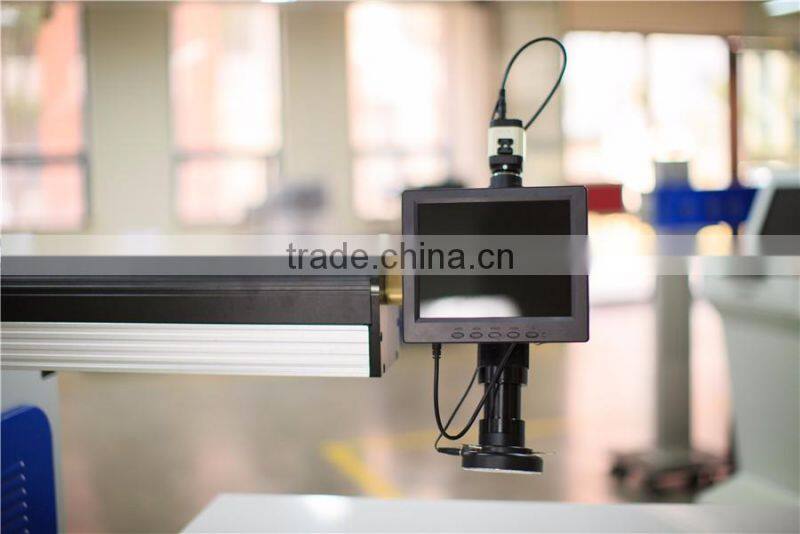

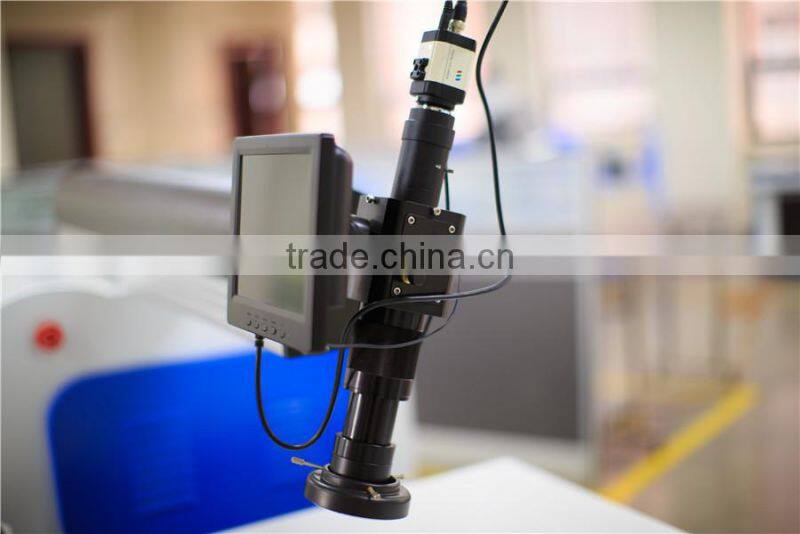

CCD Camera

Adopts China famous brand CCD camera, LCD screen and red pointer
CCD camera can photo-shot the welding details and transmit the signal to LCD screen.
The welding effect is more clear and intuitive.

Laser Head

The laser head can rotate 360 degrees, which is more convenient for positioning and welding of special shaped objects.

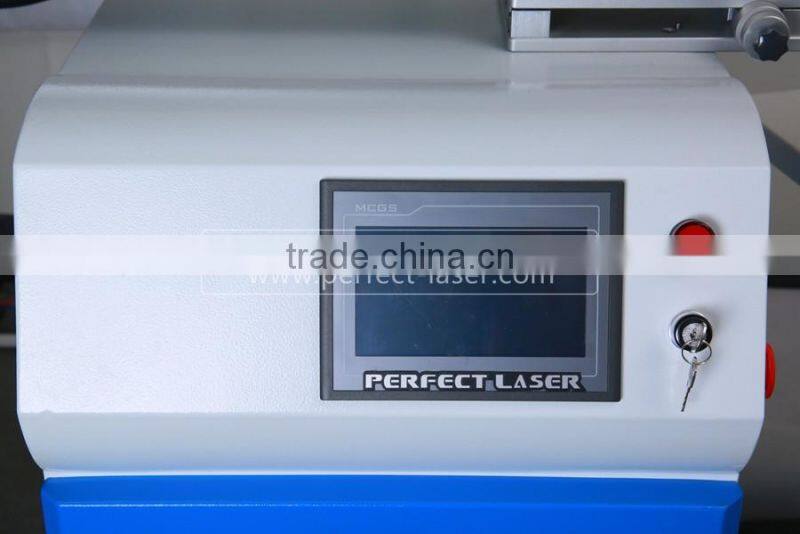

LCD Colorful Screen

Pulse width, frequency and speed can be adjusted on the screen and no need PC. You can save 10 sets of parameters in need.

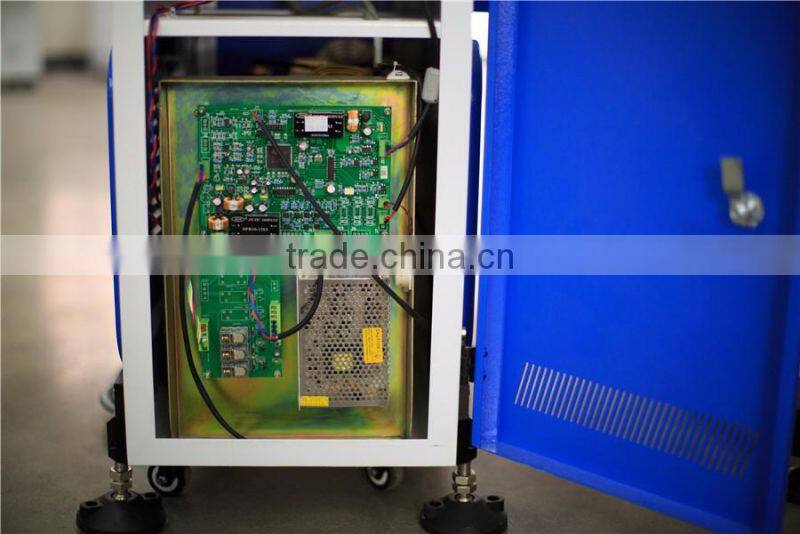

Electrical Controlling System

Controlling board and cable connection are integrated to avoid confusion.

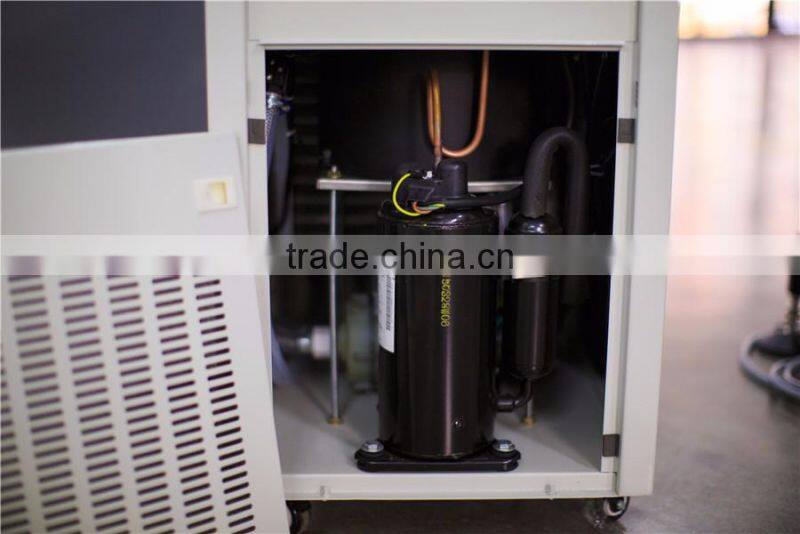

Water Chiller.

1HP water chiller can cool the machine and make the machine work in good condition.

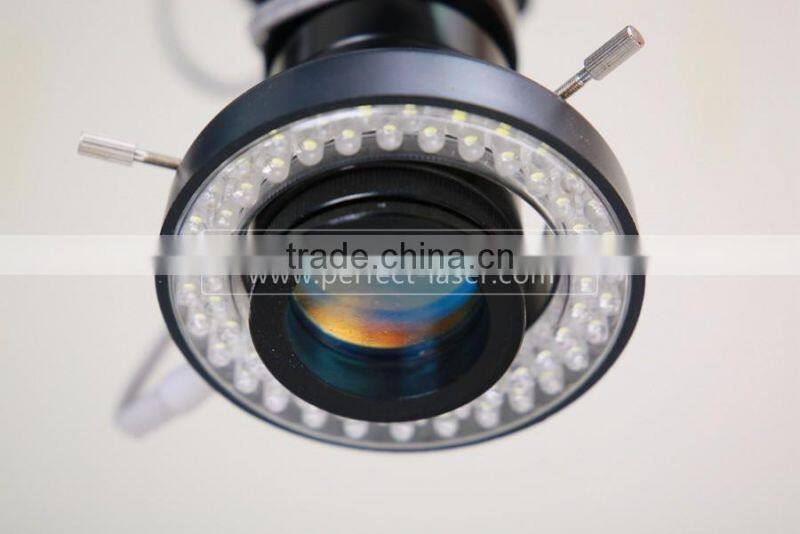

LED Light.

Helpful when the working environment dark.

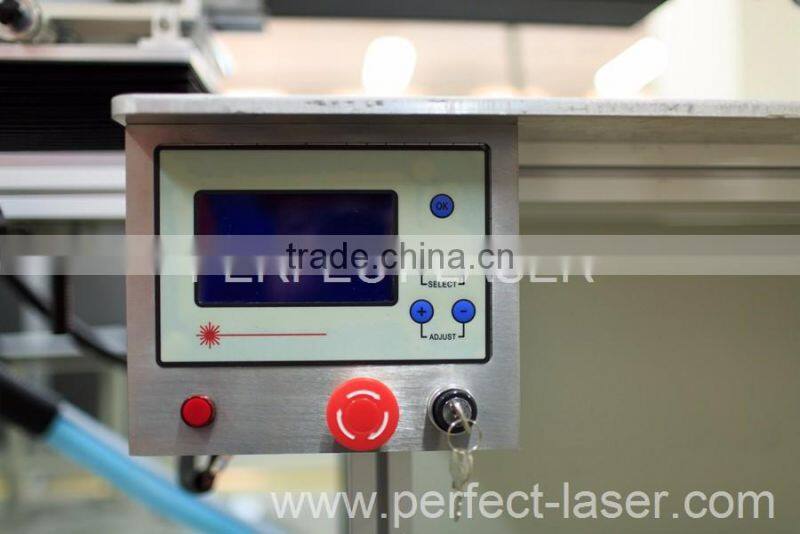

Power Supply Screen.

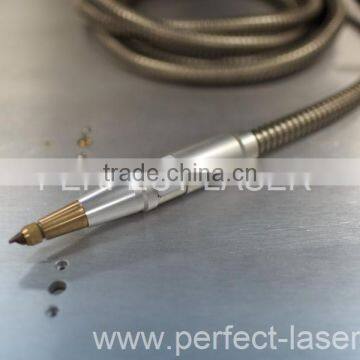

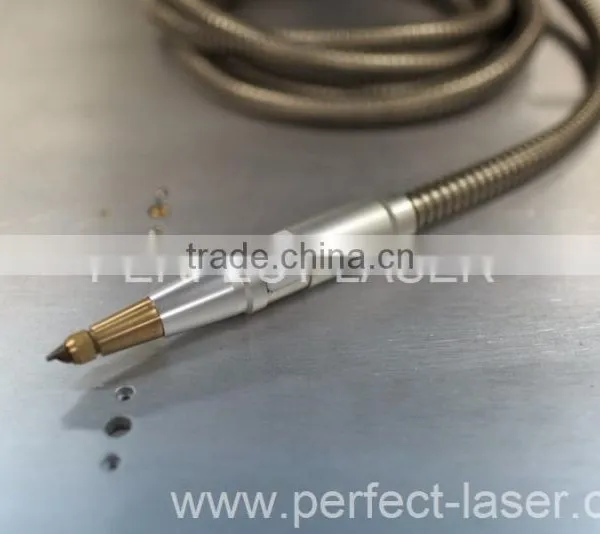

Two ways to operate the machine. One by laser head, another one by fiber cable .

It can be easily to be switch here

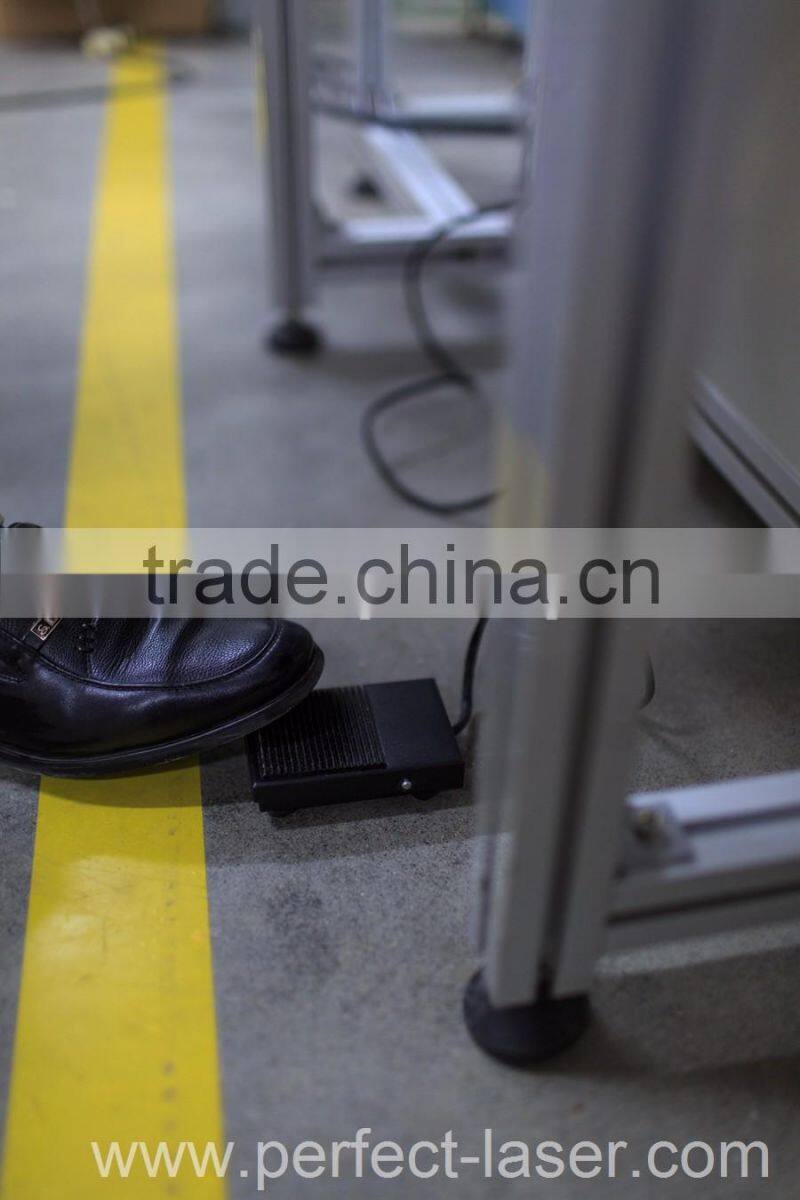

Foot Pedal.

Can be controlled by foot pedal at the same time

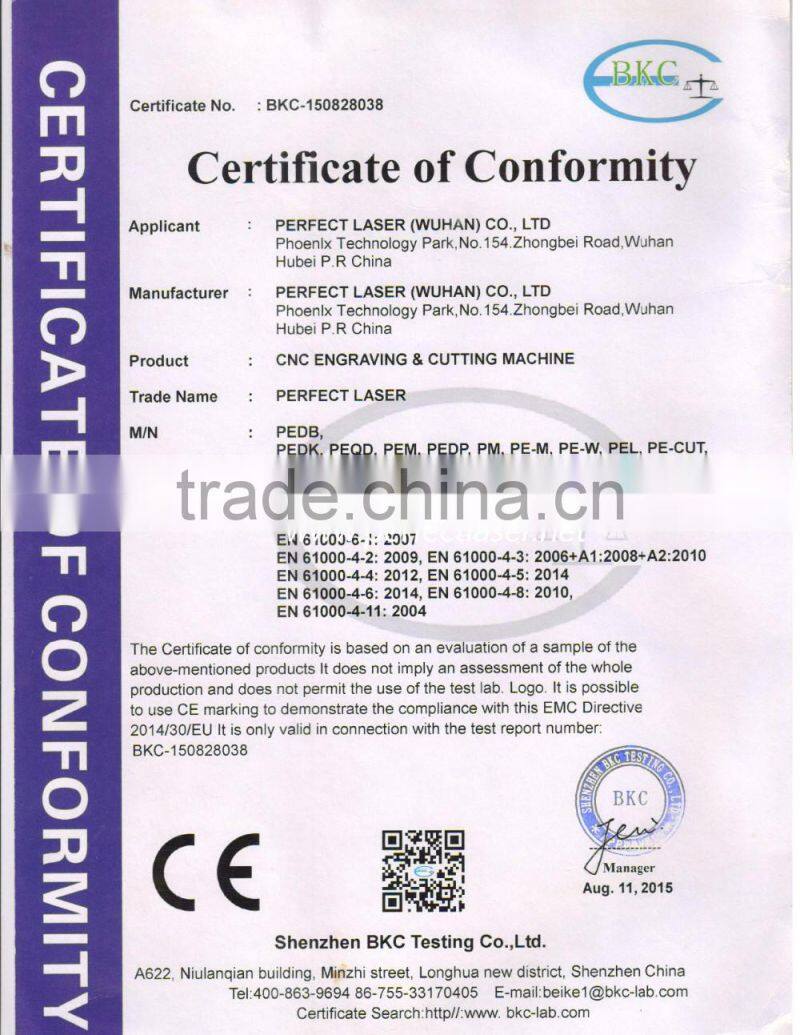

Certifications

Our Service

Pre-Sales Service

Free Pre-Sales Consulting / Free Sample Marking
Perfect Laser offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users.
Free Sample Making is available.
Free Sample Testing is available.
We offer progressing solution design to all the distributor and users.

Strict Quality Control of Production
Adopt advanced testing equipment, such as: laser power meter, laser testing machine, CNC high-precision processing machine, 3D measuring machine, Perfect Laser setup a complete & strict quality control system, which ensures the excellent quality of our machines.

5-7 Days Quick Delivery
We have mass production and stock & ready item, for these items, we offer 5-7 days quick delivery time. For big machine and special requirement, we will trade you as the priority customer and to produce your cargo in the first time.

Perfect Laser, You Best Choice
To be the customer of Perfect Laser, we will cooperate based on complete trust and comfortable. You will find we are a reputable supplier and worth your trust. We understand every customer is valuable. We will value every chance you give to us.

Contact us Today!

After-Sales Service

1 Year Quality Guarantee
Perfect Laser offer 1 year guarantee for our machinery and 3 months guarantee for consumables. And to became you are our long-term customer, we will prolong the quality guarantee period specially for you.

12 hours Quick Feedback & After-Sales Service
We will offer "Training Video", "Instruction Book", "Operation Manual" to you, which is easily to learn and operate.
We will supply brochures for simple trouble-shootings of the machine, which will help you dealing with the common problems happened to the machine.
We will offer plenty of technical support online, just like detailed technical and installation instructions. For example, when you meet a maintenance problem, we will make a video with completed and detailed operation process according to the problem, it just seems that I am on the spot by your side to instruct you how to deal with the problem.

Quick Back-up Parts Available & Technical Assistance
Our extensive inventory of spare parts means replacements get shipped to you as quickly as possible. Immediate technical assistance is only an email or phone call away.

Free Training Service
We insist that our customers receive personal, hands-on training with every machine we sell. This training is free, and we will work with you for as long as it takes to ensure you feel comfortable operating your new laser machine. We pride ourselves on our expertise and our ability to educate our customers in the installation, proper maintenance, and most efficient use of Perfect Laser machines.

Special Designing, Customized, OEM Order is accepted
Perfect Laser is rather willing to help you to realize your special idea and requirement by our innovative ability. So please do not hesitate to contact us when you need special design or customized machine and OEM machines.

Packing & Delivery

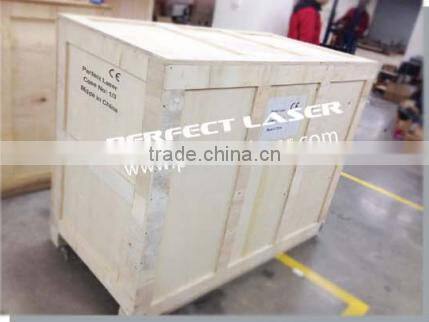

Packaging
Size	159 (L) * 87 (W) * 128 (D)
Weight	300kgs
Packaging Details	1. We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof. 2. Air-Worthy Packing or Sea Packing which comply with international standard.

Perfect Laser-Laser Welding Machine PE-W300

Power: 300w , single path,
Working area:750*1000mm
Welding thickness:
Aluminum: 0.5-1.2mm
Stainless steel, galvanized sheet: 0.5-2mm

Perfect Laser-Laser Welding Machine PE-W300II

Power: 500w , single path,
Working area:750*1000mm
Welding thickness:
Aluminum: 0.5-1.2mm
Stainless steel, galvanized sheet: 0.5-2mm

Perfect Laser-Laser Welding Machine PE-W500II

Power: 300w , Dual path,
Working area:750*1000mm
Welding thickness:
Aluminum: 0.5-2mm
Stainless steel, galvanized sheet: 0.5-2mm
