MIMAKI CJV150 all-in-one series of printer cutter
More efficient!
Shorten the delivery time, up to 17.5 m2 / h high-speed printing
1.Specifications:
| model | mimaki CJV150 |
| Print System | On-demand piezo, one print head per color 8 channels for a variety of |
| ink configurations | |
| Maximum print width | CJV150-75: 31.4 inches (800 mm) |
| CJV150-107: 42.9 inches (1090 mm) | |
| CJV150-130: 53.5 inches (1361 mm) | |
| CJV150-160: 63.3 inches (1610 mm) | |
| Print resolution | 360, 540, 720, 1,080, 1,440 dpi |
| Ink Type | Mimaki SS21 Eco-Solvent: C, M, Y, K, Lc, Lm, Lk, Or, W, Si |
| Mimaki ES3 Eco-Solvent: C, M, Y, K, Lc, Lm, W | |
| Mimaki Sb54 Dye Sublimation: Bl, M, Y, K, Lbl, Lm | |
| Ink Capacity | 440ml cartridges available for most colors |
| 220ml cartridges only for Silver and White ink | |
| Optional: 2-liter bulk ink system standard for most colors | |
| Maximum media width | CJV150-75: 31.8 inches (810 mm) |
| CJV150-107: 43.1 inches (1100 mm) | |
| CJV150-130: 53.9 inches (1371 mm) | |
| CJV150-160: 63.7 inches (1620 mm) | |
| Max roll weight | 88 lbs. (40 kg) |
| Media thickness | 1.0 mm |
| Operational environment | Temp: 59c– 86cF (15 – 30 C) |
| 35-65% RH (non-condensing) | |
| Connectivity | USB 2.0 |
| Power supply | Single-phase AC 100-120V (AC 220-240V) x2 |
| Dimensions (W × D × H) | CJV150-75: 77 x 28 x 55 inches (195 x 71 x 140 cm) |
| CJV150-107: 89 x 28 x 55 inches (226 x 71 x 140 cm) | |
| CJV150-130: 99 x 28 x 55 inches (251 x 71 x 140 cm) | |
| CJV150-160: 109 x 28 x 55 inches (277 x 71 x 140 cm) | |
| Weight | CJV150-75: 278 lbs. (126 kg) |
| CJV150-107: 313 lbs. (142 kg) | |
| CJV150-130: 346 lbs. (157 kg) | |
| CJV150-160: 370 lbs. (168 kg) |
MIMAKI CJV150 Ink system:
| Ink for the Mimaki CJV150 Series | ||||||||||
| Eco Solvent ink (SS21) | Cyan | Magenta | Yellow | Black | Light Cyan | Light Magenta | Light Black | Orange | White | Silver |
| 2L MBIS Pack* | SPC-0588C | SPC-0588M | SPC-0588Y | SPC-0588K | SPC-0588LC | SPC-0588LM | SPC-0588LK | SPC-0588OR | ||
| 440ml cartridge | SPC-0501C | SPC-0501M | SPC-0501Y | SPC-0501K | SPC-0501LC | SPC-0501LM | SPC-0501LK | SPC-0501OR | ||
| 220ml cartridge | SPC-0504W-2 | SPC-0504Si | ||||||||
| Eco Solvent ink (ES3) | Cyan | Magenta | Yellow | Black | Light Cyan | Light Magenta | Light Black | Orange | White | Silver |
| 440ml cartridge | SPC-0440C | SPC-0440M | SPC-0440Y | SPC-0440K | SPC-0440LC | SPC-0440LM | ||||
| 220ml cartridge | SPC-0433W-2 | |||||||||
| Dye Sublimation ink (Sb54) | Blue | Magenta | Yellow | Black | Light Blue | Light Magenta | Light Black | Orange | White | Silver |
| 2L MBIS Pack* | SB54-BLT-2L | SB54-MT-2L | SB54-YT-2L | SB54-KT-2L | SB54-LBT-2L | SB54-LMT-2L | ||||
| 440ml cartridge | SB54-BLT-44 | SB54-M-44 | SB43-Y-44 | SB54-K-44 | SB54-LBL-44 | SB54-LMT-44 | ||||

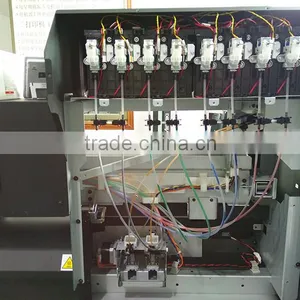

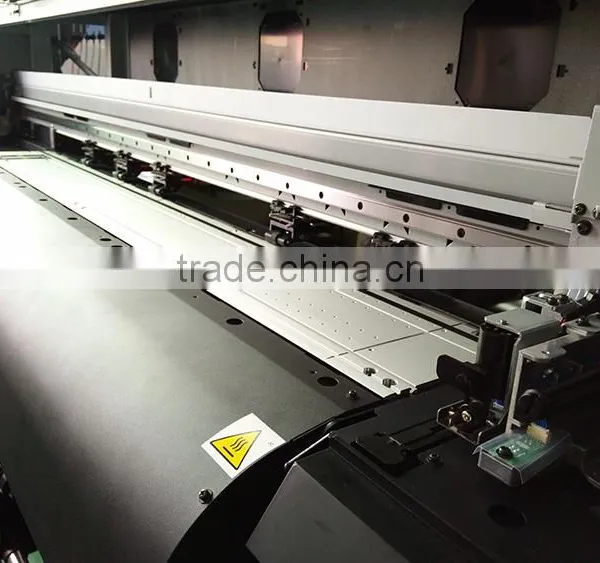

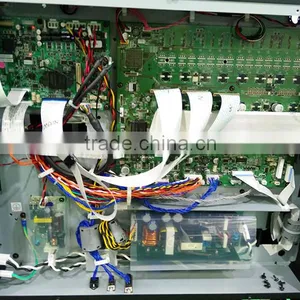

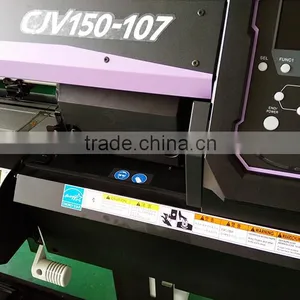

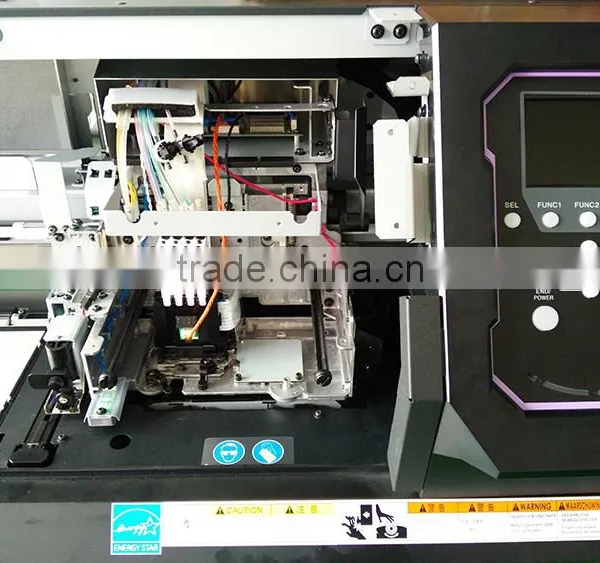

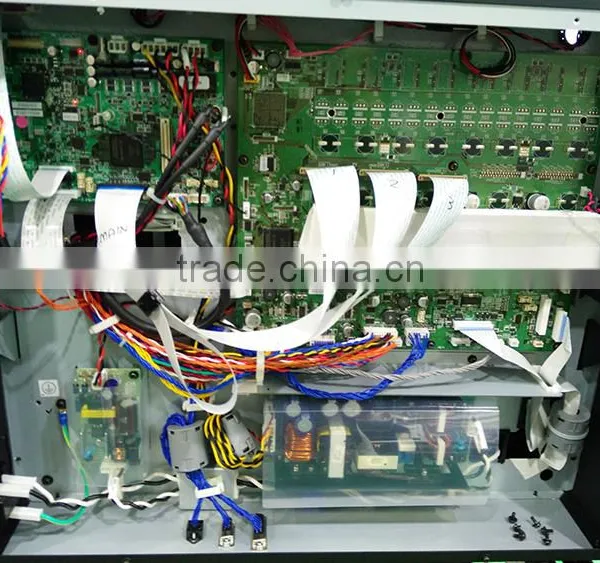

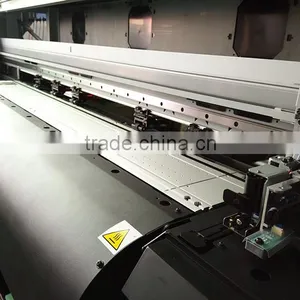

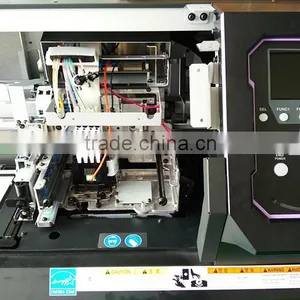

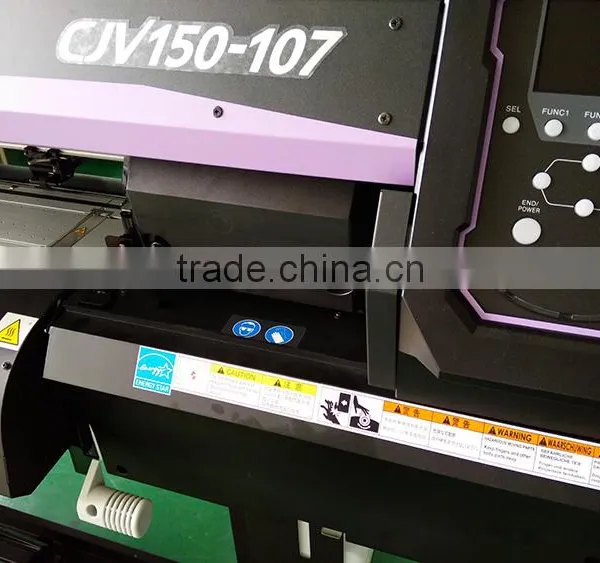

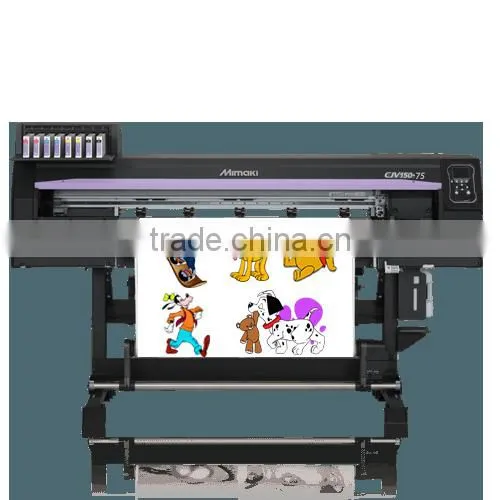

2. Mimaki cutter plotter show:
3. why select Mimaki CJV 150 printer cutter:
To achieve the fastest 17.5 m2 / h (540 x 720 dpi, four color), standard mode 11.9 m2 / h (540 x 1080 dpi, four color) of the high-speed printing.
1.When printing ink with symmetric arrangement, the bidirectional also can realize stable high quality.
2.Slashing the manual operation time, "clamping pressure automatic switching function"
3.The function of automatic cartridge switching UISS
4.High precision, high quality!!!!!
5.A maximum resolution of 1440 dpi, implementation, more fine print.
Has realized the accurate contour cutting, read "continuous cutting mark function"
6.Two kinds of solvent ink, with more extensive applications:
SS21 solvent ink
ES3 green solvent ink
White ink (SS1, ES3 ink ink has)
Equipped with silver ink (ES3 ink)
7.Software team rich
8.Raster Link Pro 5 continuous printing and cutting
9.Fine Cut 8 for Illustrator to achieve more advanced cutting effect.
Simple Studio anyone can easily printing and cutting

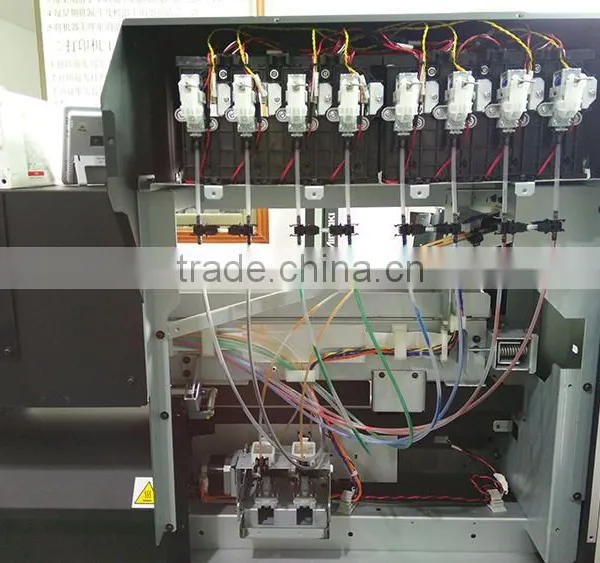

4.Mimaki CJV150 printer cutter processing:
5.The effect of Eco-solvent transfer paper:
6. Printer and cutter for cotton solution:
Guangzhou Elephant Digital Technology Co.,Ltd.
1.Established in 2004, our factory had passed Audit report of SGS & ROHS Certification approval.
2.We are a heat press machine manufacturer, and orginal Epson, Mutoh and Mimaki Sublimation printer Agent, Hotsale printer with high quality and competitive price.
3.We are the one of four Korea Inktec sublimation ink Agent in China.
4.In the heat transfer business, we accumulate 10 years experience and win many support and
faith from old and new customers.
5.We hope to establish good relationship with creative doubleins and strengthen mutual cooperation. Please contact me if you have any question.
Guangzhou Elephant Digital Technology Co.,Ltd
1. With 10 years' manufacture & sales experience, we prefer LONG-TERM COOPRATION WITH YOU!
2. Main product lines:
1) Sublimation printer series: Epson, Mimaki, MUTOH.
2) Small heat press machine, Roll heat press machine.
3) Sublimation paper, sublimation ink.
4) Heat transfer vinyl, vinyl cutter plotter.
5) OEM service in sublimation printing.
3. Professional technical support, one year after sales service.
4.Good service, short delivery time.
Payment Method:
- T/T
- Western Union
- Paypal
Packing: Full-wrapped foam package with strong carton and wooden package
Shipping: DHL / UPS / EMS / Fedex / By Sea
Shipping Method & Shipping Time:
- DHL express. About 3-7 days door to door service.
- Seaway, about 15-25 days to your port.
For more detail, pls contact me!
| Contact Person: | Grace He |
| Skype: | Grace218000 |
| Wechat/Whatsapp: | +86-135 5391 4601 |
| Tel: | +86-13553914601 |
| Fax: | 86-20-85542001 |
| QQ: | 2880506329 |
| Address: |
1.Guangzhou Address: 5th Floor,15th Yongning Street,Dashi village, Panyu District, Guangzhou City ( MTR line 3,Near Dashi MTR Station Exit D) |
|
2.Qingyuan address: Building 7, Dongcheng Industrial Park,No.48 Qingcheng District,Qingyuan,China. |
So DON`T hesitate anymore......
Hurry up to contact us get our competitive price!
For more questions, please send inquiry or e-mail or call us ! Thanks
