Help CenterGraphtec Vinyl Paper Cutter Plotter Machine 40 cm 60cm 120 cm
Related Products
-
Logo Cutting Plotter Vinyl Cutting Plotter Print and Cut PlotterUS$ 1,350 - 3,970MOQ: 1 Piece -
1.2m Graphtec CE6000 Vinyl Cutting Plotter Machine for T-shirtUS$ 1,350 - 3,970MOQ: 1 Piece
-
Price of Plotter Machine Vinyl Sticker Cutting Plotter Cutter PlotterUS$ 1,350 - 3,970MOQ: 1 Set
-
Cutter Vinyl Cutter Plotter Printer SolventUS$ 1,350 - 3,970MOQ: 1 Piece
-
Hotsale Graphtec Plotter Cutting for Vinyl CuttingUS$ 1,350 - 3,970MOQ: 1 Piece

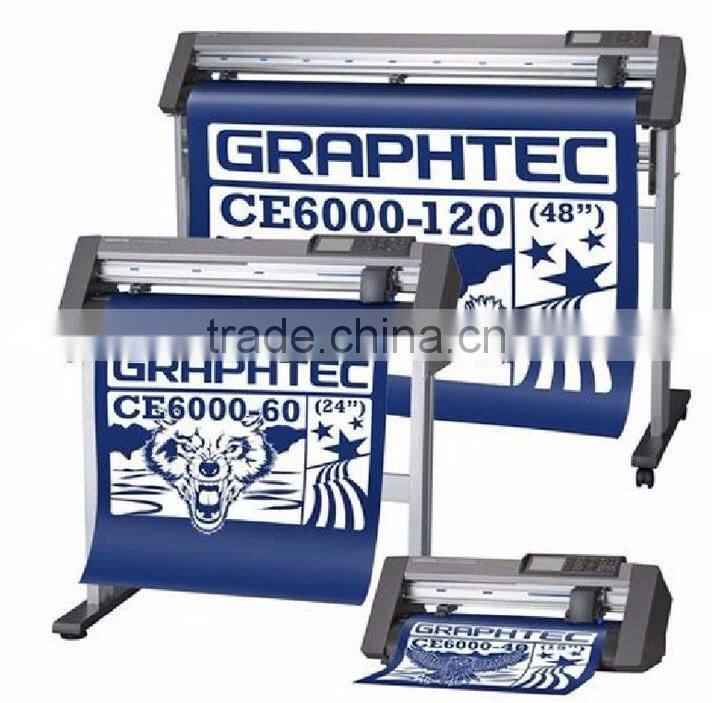

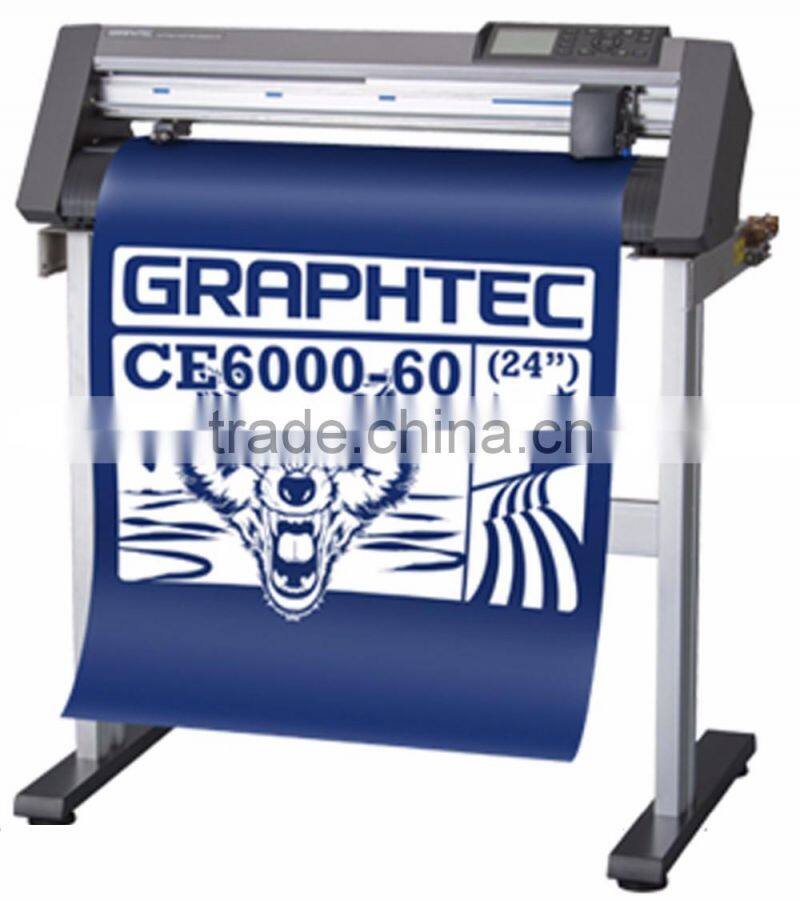

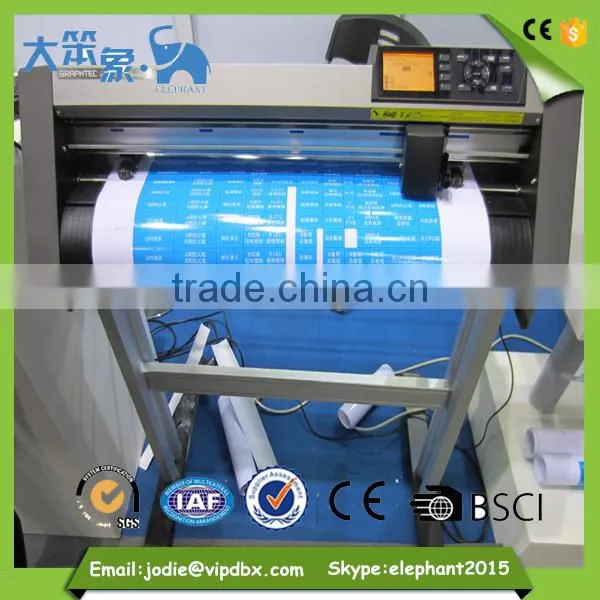

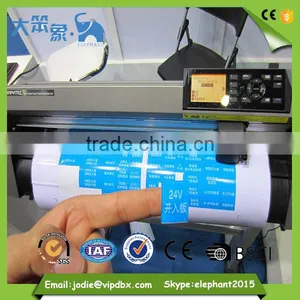

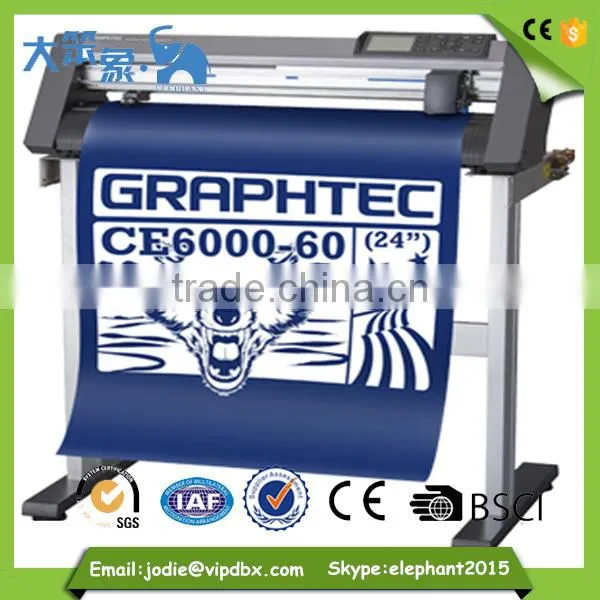

Graphtec CE6000 Paper/Sticker/Vinyl Cutting Plotter cutter plotter
Brand: Graphtec
Size: 40cm,60cm,120cm
Cut thick: 0.25mm
Function: vinyl cutting plotter
Compatible cutter type: Graphtec Supersteel blades, 0.9MM and 1.5mm diameter
Specifications:
| Orginal Janpan Cutting Plotter Specification | |||||||
| Item | CE6000-120 | CE6000-60 | |||||
| CPU | 32-bit CPU | ||||||
| Construction | Microgrit Rollers, Moving Media | ||||||
| Driver systerm | Digital Servo Motor | ||||||
| Max cutting size | 1213 mm × 50 m (47.7" × 164") | 603 mm × 50 m (23.7" × 164") | |||||
| Mechanical Resolution range | 1194 mm × 5 m (47" × 16.4") | 584 mm × 5 m (23" × 16.4") | |||||
| Min Media width | 85 mm (3.3") | 50 mm (2") | |||||
| Max Media width | 1346 mm (53") | 712 mm (28") | |||||
| Max media thickness | 0.25 mm (10 mil) | ||||||
| Max cutting speed | 1000 mm/s (39.4 ips)(45°direction) | 600 mm/s (24 ips)(In all directions ) | |||||
| Adjustable cutter pressure |
20 ~ 450 gf ( Points 38 level ) |
20 ~ 300 gf ( Points 31 level ) |
|||||
| Minimum character matrix |
Max height about 5 mm (0.2") | ||||||
| Mechanical Resolution range | 0.005 mm (0.0002") | ||||||
| Programmable resolution |
GP-GLTM:0.1/0.05/0.025/0.01 mm | ||||||
| HP-GL®:0.025 mm (0.001") | |||||||
| repeatability precision*1 | 0.1 mm/2 m (0.0039"/80") or better | ||||||
| Can loading pen number |
1 pcs | ||||||
| Compatible cutter type |
Graphtec Supersteel blades, 0.9MM and 1.5mm diameter | ||||||
| Compatible pen type | Graphtec water-based fibe-tip pen | ||||||
| Compatible Media | Vinyl film, Fluorescent, decal , light reflective(except high-luminosity),paint masking, banner, thermal transfer vinyl, flex, flock, ,pu,pvc image transfer media, vinyl print media, etc. | ||||||
| interface | Serial RS-232C/USB2.0 high speed ,IEEE-1284 Parallel (automatic identification) | ||||||
| Deta Buffer | 2 MB | ||||||
| Comand modes | GP-GLTM/HP-GL® (selectable in Command menu) | ||||||
| the default number of cutting parameters | 8 group, users can set any gronp. | ||||||
| display panel | 16 character* LCD screen | ||||||
| power supply input | 100 ~ 120 VAC,220 ~ 240 VAC,50/60 Hz | ||||||
| power consumption | Max 100 VA | Max 70 VA | |||||
| 10 ~ 35 °C (50 ~ 95 oF),35 ~ 75 % RH (not-condensing) | |||||||
| Recommended Resolution Environment | 16 ~ 32 °C (60 ~ 90 oF),35 ~ 70 % RH (not-condensing) | ||||||
| Dimensions W/Stand ( W*D*H) | 1487 mm × 656 mm × 1188 mm*2 (58.5" × 25.8" × 46.7")*2 |
851 mm × 285 mm × 223 mm (33.5" × 11.2" × 8.7") |
|||||
| Equipment Weight W/stand | 39.1 kg (86.2 lb.)*2 | 11.2 kg (24.7 lb.) | |||||
| Accessories Including | power line | 1pc | |||||
| Quick Start Manual | 1pc | ||||||
| Safe use manual | 1pc | ||||||
| User manual disc | 1pc | ||||||
| CB09UA cutter | 1pc | ||||||
| Cutting Master software | 1pc | ||||||
| SATA | 1pc | ||||||
| PHP32-CB09N Blade Holder | 1pc | ||||||
| Windows Drivers | 1pc | ||||||
| CE5000-120 Cutter Holder | 1pc | CE6000-60 Cutter Holder | 0pc | ||||
Features:
1. Economical
2. user-friendly
3. Optimum
4. good cutting quality
5. Multi-usage: Advertising label. The control panel. Phone beauty. Mobile phone buttons. The serial number label. Clothing cutting such as thermal transfer; Heat transfer T-shirt. Souvenirs. Glass products, car stickers. Labeling. Any shape infra-red positioning, suitable for cutting

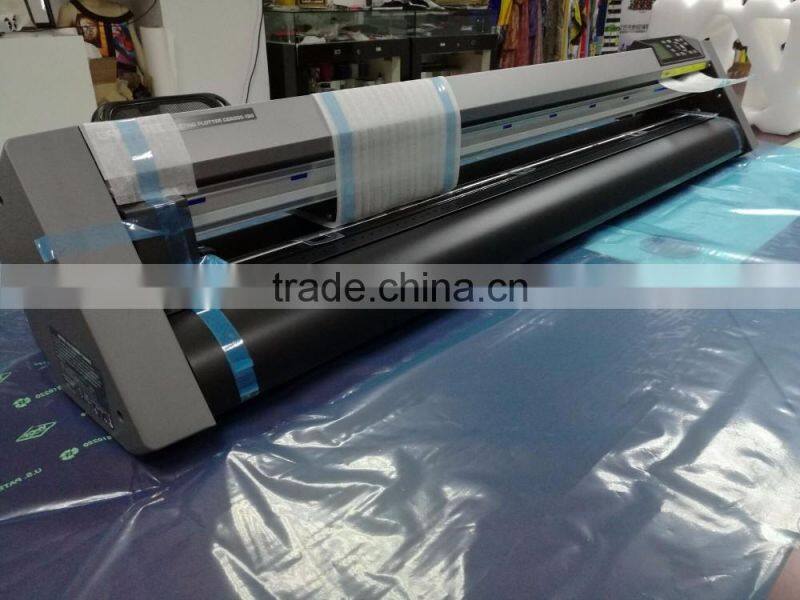

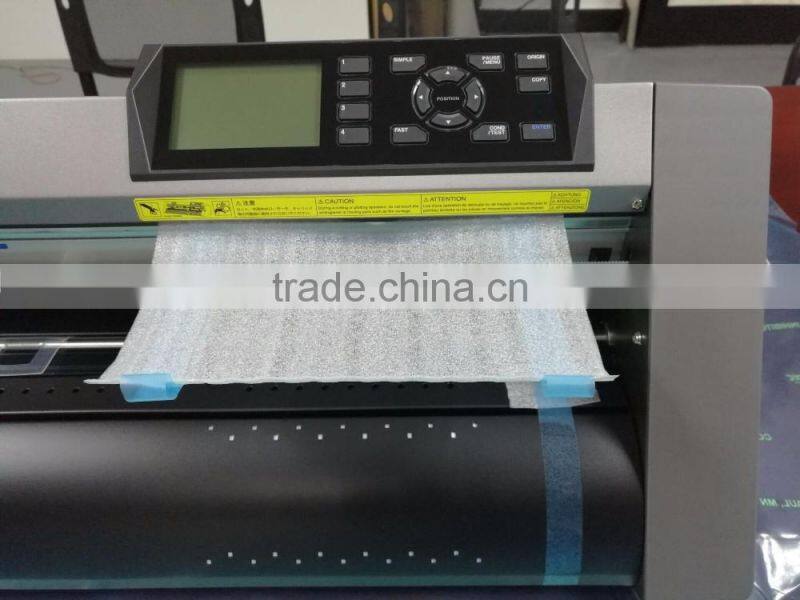

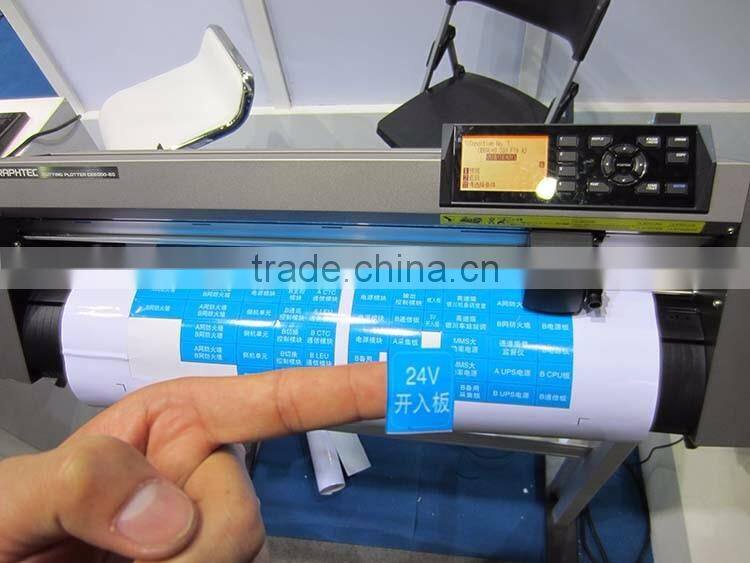

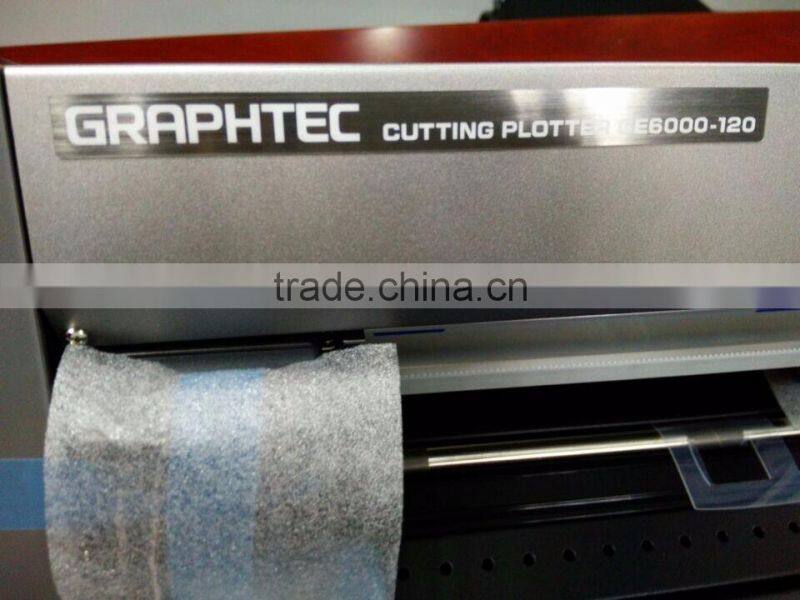

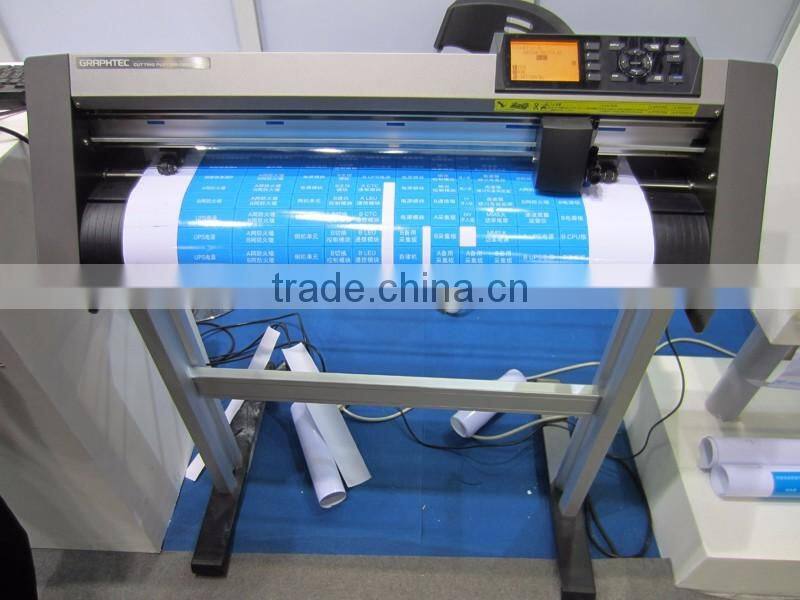

Other details of graphtec cutting plotter:
Our service:
1. Reply the inquiry in 24 working hours.
2.Experienced staffs answer all your questions.
3. Customized design is available.
4.Do the best quality anf cheap small wholesale heat transfer printing for fabric.
Payment terms:
T/T, Western Union, paypal
Shipping:
1.We have cooperated with Express Company, so our customers can get low freight cost.
2. If you have your own forwarder in China, we can offer Free Delivery for you in Guangzhou City!
3..There are no shipments on weekend and public holidays.

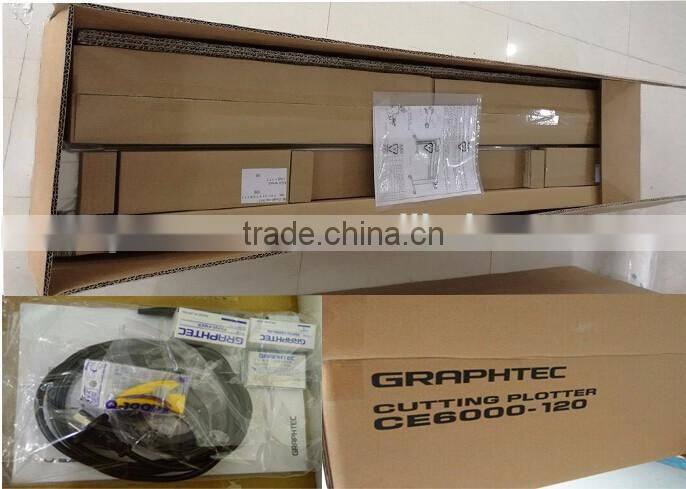

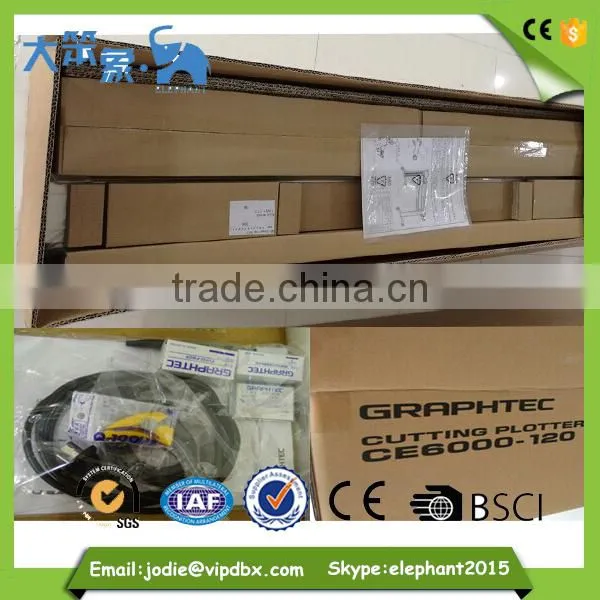

Package & delivery:
1. Neutral package or as customers' request.
2. we will arrange delivery 7-10workdays after we confirm the payment.
Guangzhou Elephant Digital printing Co,.Ltd
| Contact Person: | Jodie Luo |
| Skype: | elephant2015 |
| Whatsapp: | 86-18102835308 |
| Tel: | 86-20-89015371, |
| Fax: | 86-20-85542001 |
| Web: | |
| Address: | 1.Guangzhou Address: 5th Floor,15th Yongning Street,Dashi village,Panyu District, Guangzhou City ( MTR line 3,Near Dashi MTR Station Exit D) |
| 2.Qingyuan address: Building 7, Dongcheng Industrial Park,No.48 Qingcheng District,Qingyuan,China. |
If there is anything we can do for you, we shall be more than pleased to do so.
Hope we can build good cooperation with you in the future.
