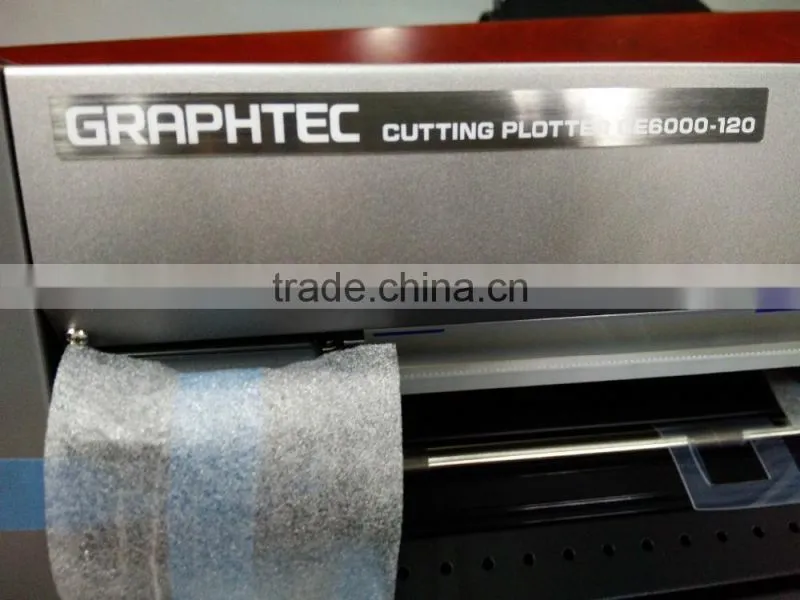

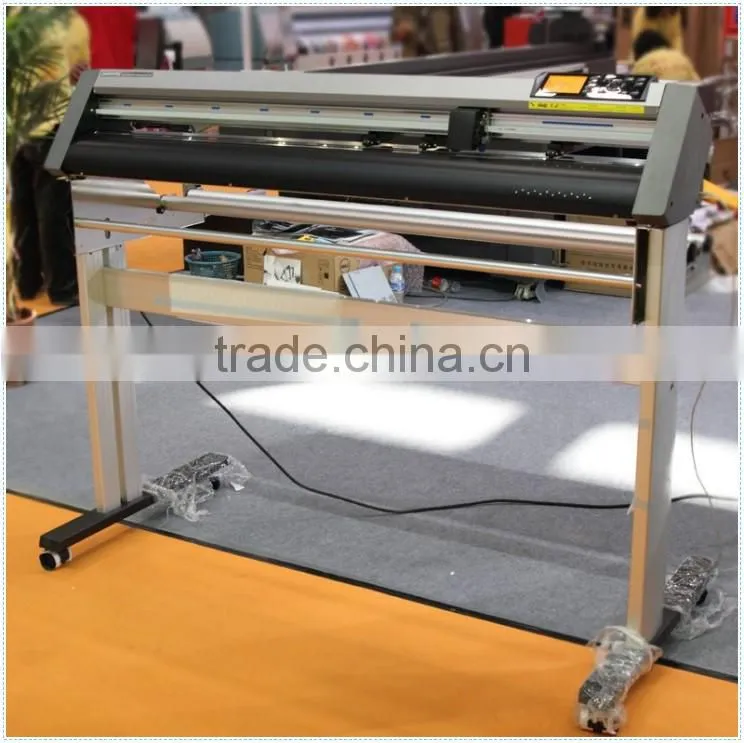

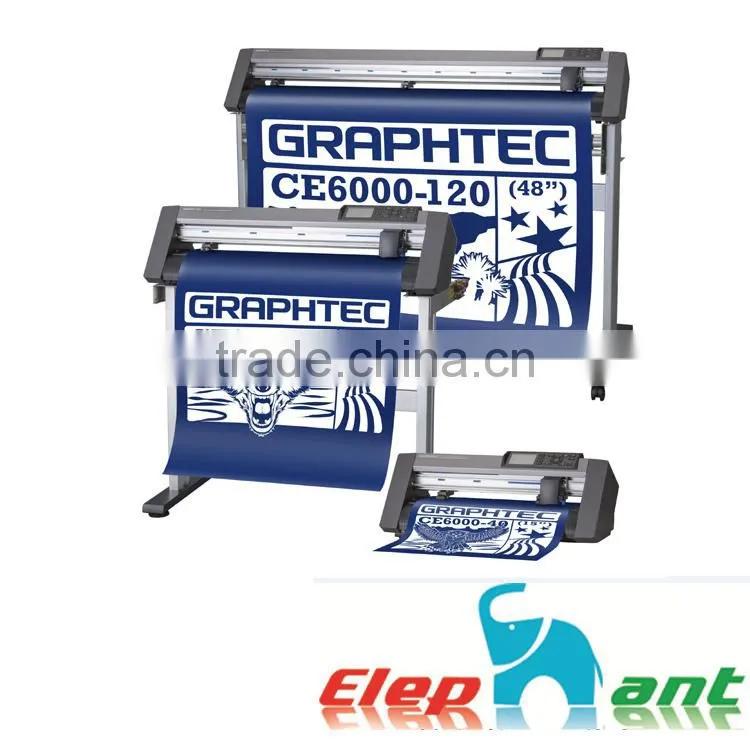

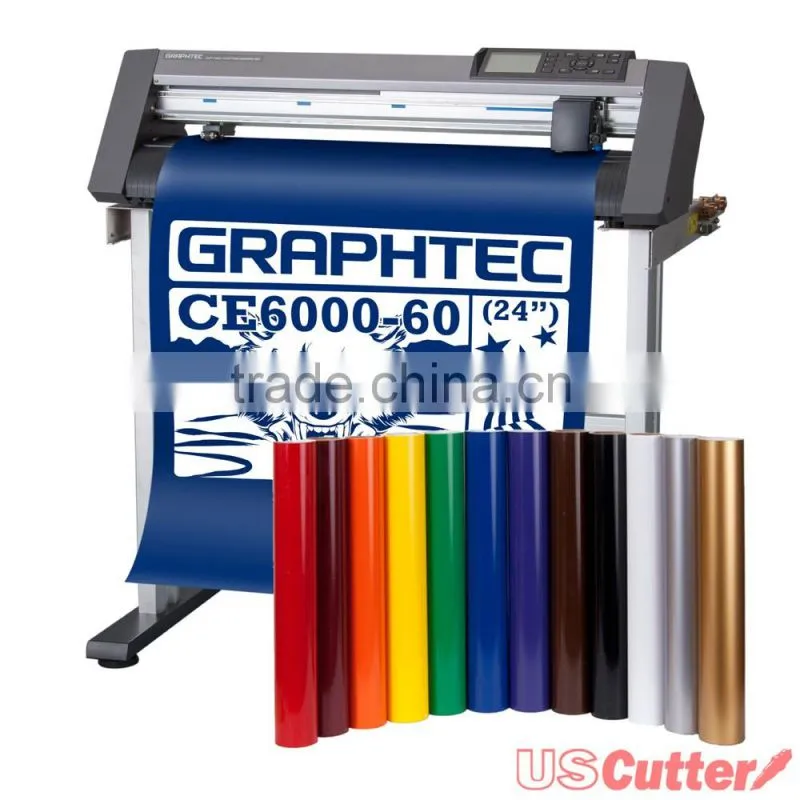

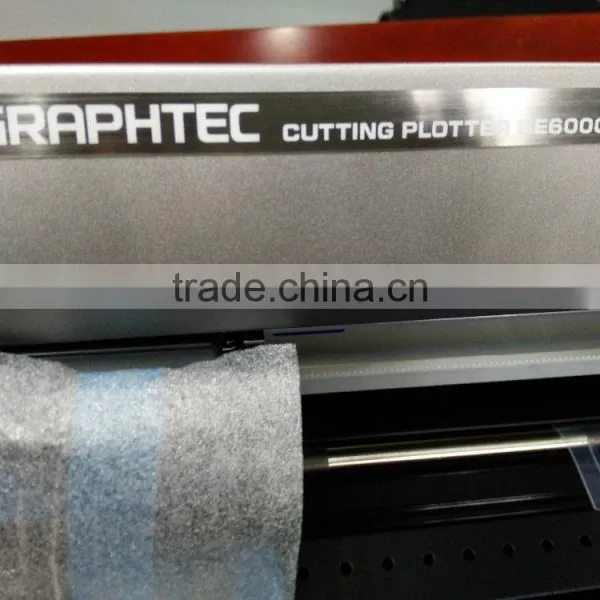

Japan graphtec s cutter vinyl cutting plotter machine
Specifications:
| Orginal Janpan Cutting Plotter Specification | |||||||

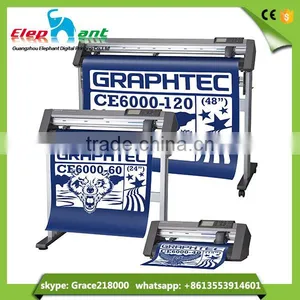

| Item | CE6000-120 | CE6000-60 | |||||
| CPU | 32-bit CPU | ||||||
| Construction | Microgrit Rollers, Moving Media | ||||||
| Driver systerm | Digital Servo Motor | ||||||
| Max cutting size | 1213 mm × 50 m (47.7" × 164") | 603 mm × 50 m (23.7" × 164") | |||||
| Mechanical Resolution range | 1194 mm × 5 m (47" × 16.4") | 584 mm × 5 m (23" × 16.4") | |||||
| Min Media width | 85 mm (3.3") | 50 mm (2") | |||||
| Max Media width | 1346 mm (53") | 712 mm (28") | |||||
| Max media thickness | 0.25 mm (10 mil) | ||||||
| Max cutting speed | 1000 mm/s (39.4 ips)(45°direction) | 600 mm/s (24 ips)(In all directions ) | |||||
| Adjustable cutter pressure |
20 ~ 450 gf ( Points 38 level ) |
20 ~ 300 gf ( Points 31 level ) |
|||||
| Minimum character matrix |
Max height about 5 mm (0.2") | ||||||
| Mechanical Resolution range | 0.005 mm (0.0002") | ||||||
| Programmable resolution |
GP-GLTM:0.1/0.05/0.025/0.01 mm | ||||||
| HP-GL®:0.025 mm (0.001") | |||||||
| repeatability precision*1 | 0.1 mm/2 m (0.0039"/80") or better | ||||||
| Can loading pen number |
1 pcs | ||||||
| Compatible cutter type |
Graphtec Supersteel blades, 0.9MM and 1.5mm diameter | ||||||
| Compatible pen type | Graphtec water-based fibe-tip pen | ||||||
| Compatible Media | Vinyl film, Fluorescent, decal , light reflective(except high-luminosity),paint masking, banner, thermal transfer vinyl, flex, flock, ,pu,pvc image transfer media, vinyl print media, etc. | ||||||
| interface | Serial RS-232C/USB2.0 high speed ,IEEE-1284 Parallel (automatic identification) | ||||||
| Deta Buffer | 2 MB | ||||||
| Comand modes | GP-GLTM/HP-GL® (selectable in Command menu) | ||||||
| the default number of cutting parameters | 8 group, users can set any gronp. | ||||||

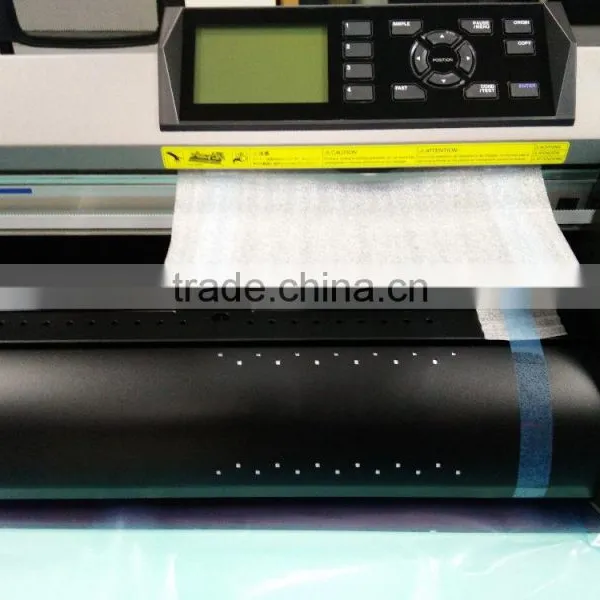

| display panel | 16 character* LCD screen | ||||||
| power supply input | 100 ~ 120 VAC,220 ~ 240 VAC,50/60 Hz | ||||||
| power consumption | Max 100 VA | Max 70 VA | |||||
| 10 ~ 35 °C (50 ~ 95 oF),35 ~ 75 % RH (not-condensing) | |||||||
| Recommended Resolution Environment | 16 ~ 32 °C (60 ~ 90 oF),35 ~ 70 % RH (not-condensing) | ||||||
| Dimensions W/Stand ( W*D*H) | 1487 mm × 656 mm × 1188 mm*2 (58.5" × 25.8" × 46.7")*2 |
851 mm × 285 mm × 223 mm (33.5" × 11.2" × 8.7") |
|||||
| Equipment Weight W/stand | 39.1 kg (86.2 lb.)*2 | 11.2 kg (24.7 lb.) | |||||

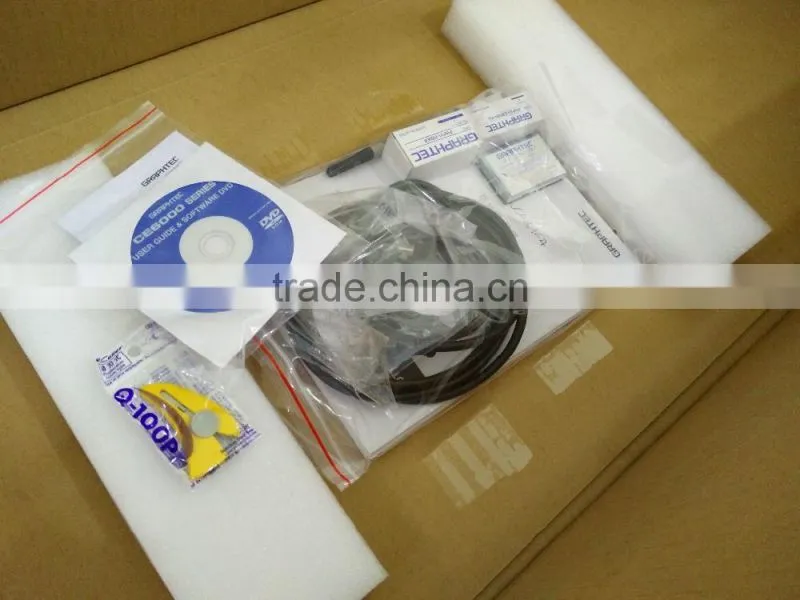

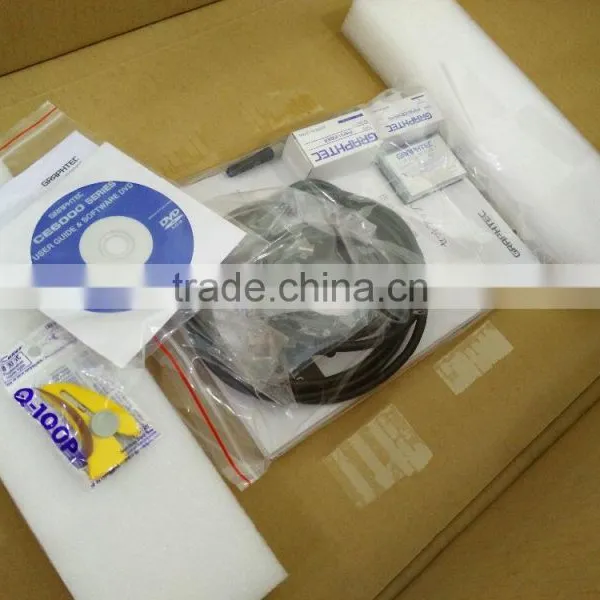

| Accessories Including | power line | 1pc | |||||
| Quick Start Manual | 1pc | ||||||
| Safe use manual | 1pc | ||||||
| User manual disc | 1pc | ||||||
| CB09UA cutter | 1pc | ||||||
| Cutting Master software | 1pc | ||||||
| SATA | 1pc | ||||||
| PHP32-CB09N Blade Holder | 1pc | ||||||
| Windows Drivers | 1pc | ||||||
| CE5000-120 Cutter Holder | 1pc | CE5000-60 Cutter Holder | 0pc | ||||

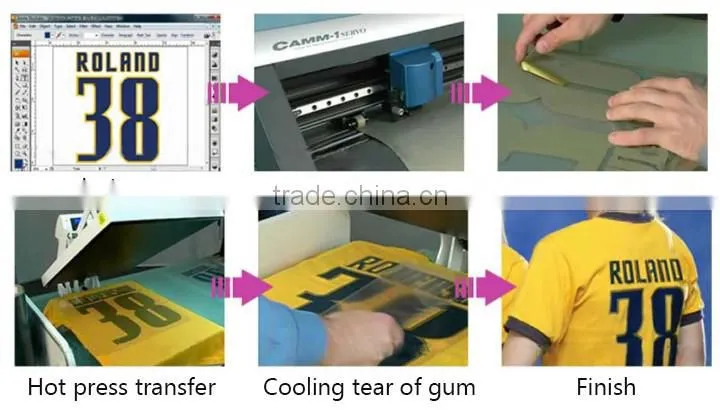

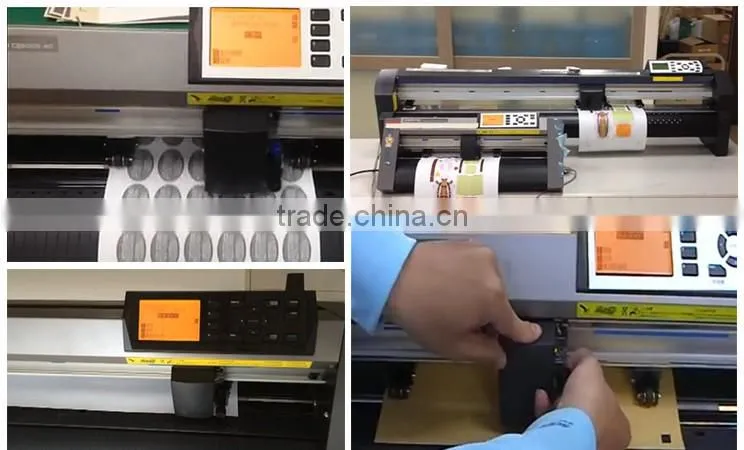

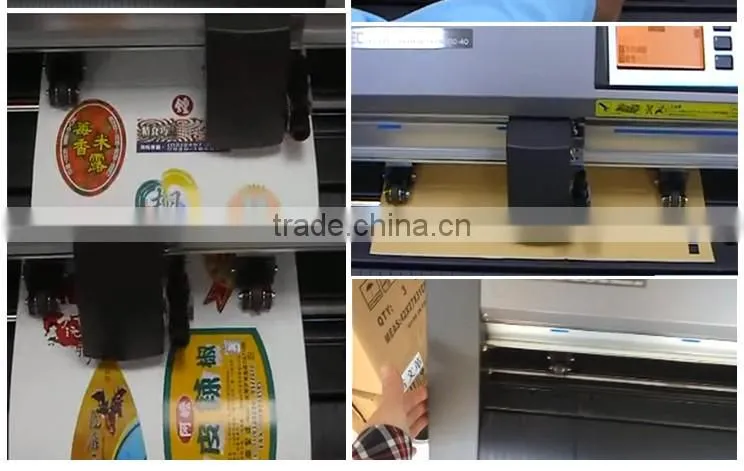

Vinyl cutting process:
Packaging & Shipping
Shipping:
- DHL
- UPS
- EMS
- Fedex
- By Sea
Shipping Method & Shipping Time:
- DHL express. About 3-7 days door to door service.
- Seaway, about 15-25 days to your port.
Packing Way:
1.We have cooperated Express Company, so our customers can get low freight cost.
2. If you have your own forwarder in China, we can offer Free Delivery for you in Guangzhou City!
3.There are no shipments on weekend and public holidays
We provide two kinds of products and services:
1. We have our own brand,currently the sales region covers 28 countries and regions around the world. We specialize in this field for more than 10 years, with the strength of market, with good quality and pretty competitive price.
2. We provide OEM services, we can do OEM for products of your brand(print your graphics on the products). The processing method, the size, the quality, etc. will all follow your requirements.
Vinyl: Heat transfer vinyl.
Ink: Sublimation ink, Eco-solvent ink, Pigment ink.
Heat press machine: Roll heat transfer machine, small heat press machine.
Ploter: Cutter machine, Cutter&printer ploter machine.
Printers: Mimki, Mutoh, Epson, Chinese cheap printers.
Paper: Sublimation paper, Eco-solvent paper, Inkjet heat transfer paper.
aaaaaaaa
aaaaaaaaaa
company profile
1)High quality & bottom price price
2)Not MOQ limit
3)Timely delivery
4)More responsibility
5)Good after-service
6)more than 10 years experience in heat transfer skills field
Why choose Elephant?
10 years in sublimation printing, Elephant accumulate rich experience, and can offer professional technical support at anytime on line or at your factory.
At here, you can choose any product for sublimation printing, save your time.
High quality and competitive price, you will earn many customers.
Payment term:
30% commission, balance paid before shipping. sublimation ink
T/T,Western Union. paypal, and other.
Contact us
Contact Person: |
Grace He |
Skype: |
ellen0618 |
Whatsapp: |
86-18102835308 |
Tel: |
86-20-85542001, 86-18102835355 |
Fax: |
86-20-85542001 |
Company: |
Guangzhou Elephant Digital Technology Co,.Ltd |
Address: |
1.Guangzhou Address: 5th Floor,15th Yongning Street,Dashi village,Panyu District, Guangzhou City |
|
2.Qingyuan address: Building 7, Dongcheng Industrial Park,No.48 Qingcheng District,Qingyuan,China. |
So DON`T hesitate anymore......
Hurry up to contact us get our competitive price!
For more questions, please send inquiry or e-mail or call us ! Thanks
