Grindometer
Various solid materials have to be ground into fine particles to disperse in the fluid device. The physical properties of the final dispersion is usually called “fineness gauge”. It depends not only on the actual size of individual particles, but also on the extent they are distributed. Scraper fineness gauge can indicate the coarse particles and aggregation of particles.
Scraper fineness gauge is made in strict accordance with GB / T 1724, GB/T6753.1, ISO1524 standard. It mensurates paint particles’ size and particle distribution in the dope, printing ink and other liquid to control quality during producing, storage and using. Scraper fineness gauge is widely used in many industries, such as paint, plastic, printing ink, paper, ceramic, medicine, food and so on.

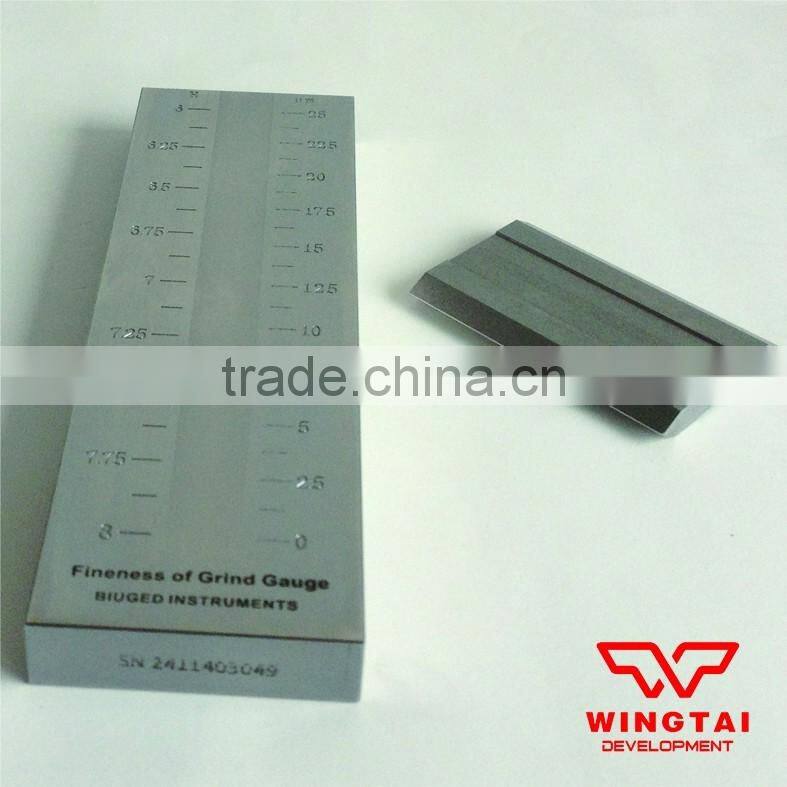

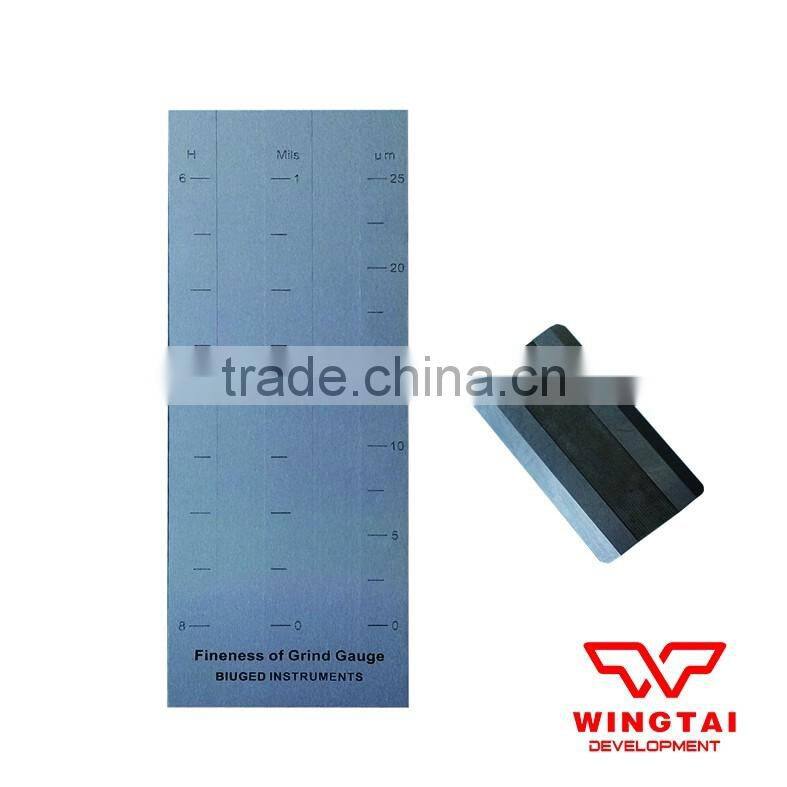

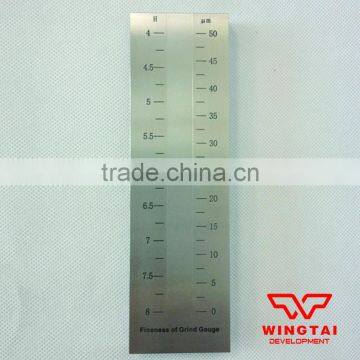

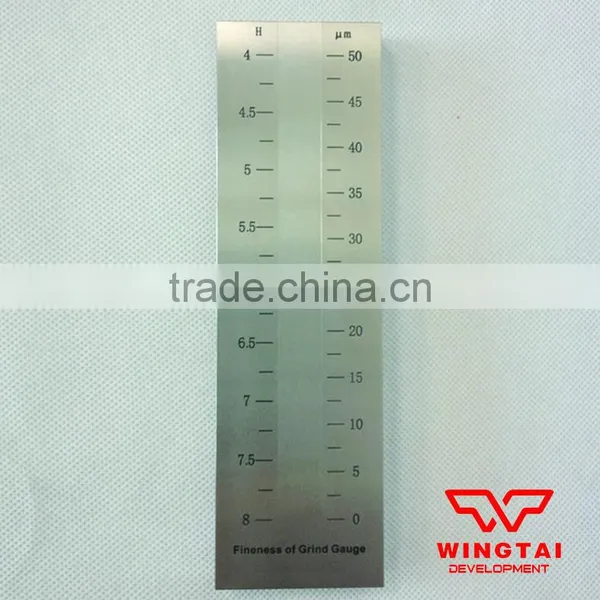

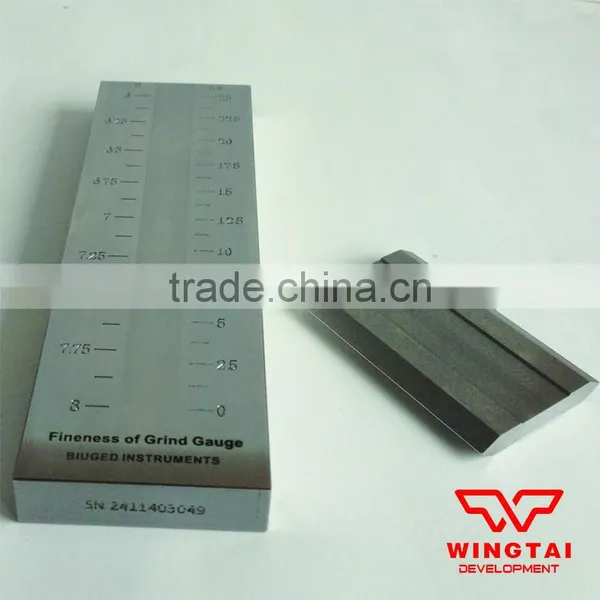

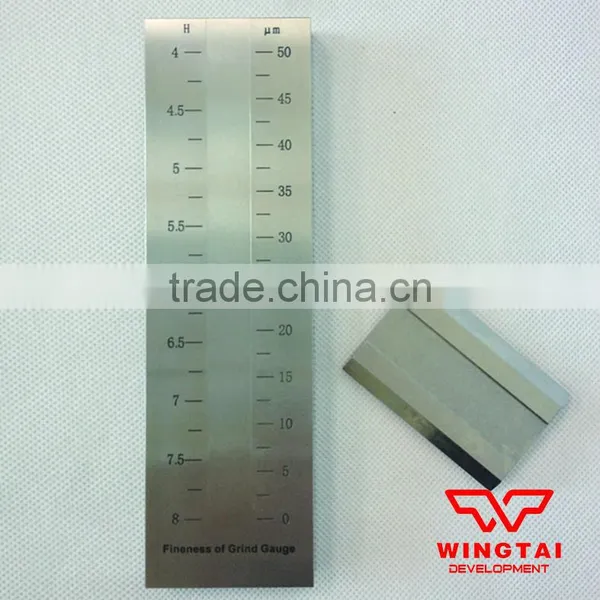

Scraper fineness gauge is flat steel with groove on the surface. The groove depth is changed from maximum at one side to zero at the end. The groove depth value Marked on the flat steel to read the particles’ size. The particle distribution’s unit is um or Hegman, from 0-8 Hegman. 0 Hegman=100 um, 4 Hegman=50 um, 8 Hegman= 0 um.
Using: Put some particles on the deeper groove, then use scraper to scrape them from deeper to low groove. We can read the particle’s size on the point there are more roughness particles.
Technical parameters:
Material: High Wear and corrosion resistance of stainless steel (a standard scraper)
Ordering Information: BGD 1250 --- small scraper (for BGD 241)
BGD 1251 --- Large scraper (for BGD 242, BGD 243, BGD 244)
Mode:BGD241
Type:Single Groove
Specifiction:0-50um/0-100um(price is the same.pls leave a message which you need)
Material:Stainless Steel
Various solid materials have to be ground into fine particles to disperse in the fluid device. The physical properties of the final dispersion is usually called “fineness gauge”. It depends not only on the actual size of individual particles, but also on the extent they are distributed. Scraper fineness gauge can indicate the coarse particles and aggregation of particles.
Scraper fineness gauge is made in strict accordance with GB / T 1724, GB/T6753.1, ISO1524 standard. It mensurates paint particles’ size and particle distribution in the dope, printing ink and other liquid to control quality during producing, storage and using.

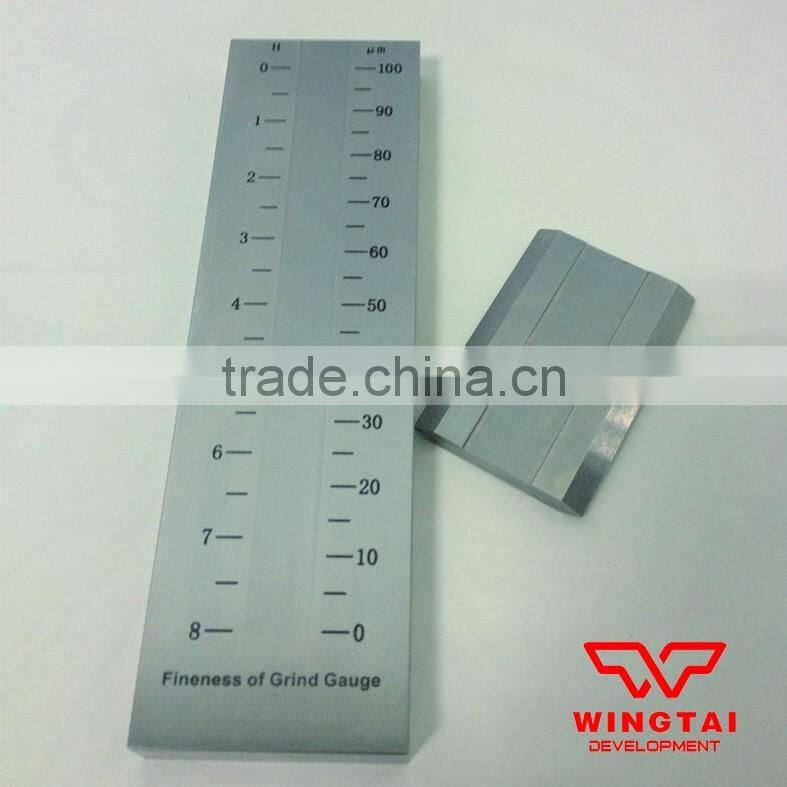

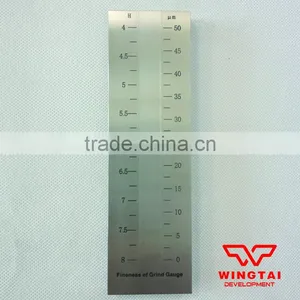

Fineness of grind gauge is flat steel with groove on the surface. The groove depth is changed from maximum at one side to zero at the end. The groove depth value Marked on the flat steel to read the particles’ size. The particle distribution’s unit is um or Hegman, from 0-8 Hegman. 0 Hegman=100 um, 4 Hegman=50 um, 8 Hegman= 0 um.
Operating Steps :
Put some particles on the deeper groove, then use scraper to scrape them from deeper to low groove. We can read the particle’s size on the point there are more roughness particles.
Widely used in many industries, such as paint, plastic, printing ink, paper, ceramic, medicine, food and so on.
More Specification:
| Model Number |
Groove Size (L*W) |
Measure Range |
Block Size | Scale Value | Display Unit | Groove quantity | |
|
Fineness grind gauge |
BGD241/0 |
140*12.5mm |
0-15μm | 170×50×12mm | 0.625 | μm | 1Piece |
| BGD241/1 | 0-25μm | 170×50×12mm | 1.25 | μm | 1Piece | ||
| BGD241/2 | 0-50μm | 170×50×12mm | 2.5 | μm | 1Piece | ||
| BGD241/3 | 0-100μm | 170×50×12mm | 5 | μm | 1Piece | ||
| BGD241/4 | 0-150μm | 170×50×12mm | 7.5 | μm | 1Piece | ||
|
Fineness grind gauge |
BGD242/0 |
140*12.5mm |
0-15μm | 175×65×12mm | 0.625 |
μm Hegman (Mils) |
2Pcs |
| BGD242/1 | 0-25μm | 175×65×12mm | 1.25 | 2Pcs | |||
| BGD242/2 | 0-50μm | 175×65×12mm | 2.5 | 2Pcs | |||
| BGD242/3 | 0-100μm | 175×65×12mm | 5 | 2Pcs | |||
| ISO Fineness grind gauge | BGD243/1 | 140*12.5mm | 0-25μm | 175×65×12mm | 1.25 | μm | 1Piece |
| BGD243/2 | 0-50μm | 175×65×12mm | 2.5 | μm | 1Piece | ||
| BGD243/3 | 0-100μm | 175×65×12mm | 5 | μm | 1Piece | ||
|
Wide groove Fineness grinding gauge |
BGD244/1 | 140*37mm | 0-25μm | 175×65×12mm | 1.25 | μm | 1Piece |
| BGD244/2 | 0-50μm | 175×65×12mm | 2.5 | μm | 1Piece | ||
| BGD244/3 | 0-100μm | 175×65×12mm | 5 | μm | 1Piece | ||
|
|
|
Double Groove Hegman Fineness Gauge |

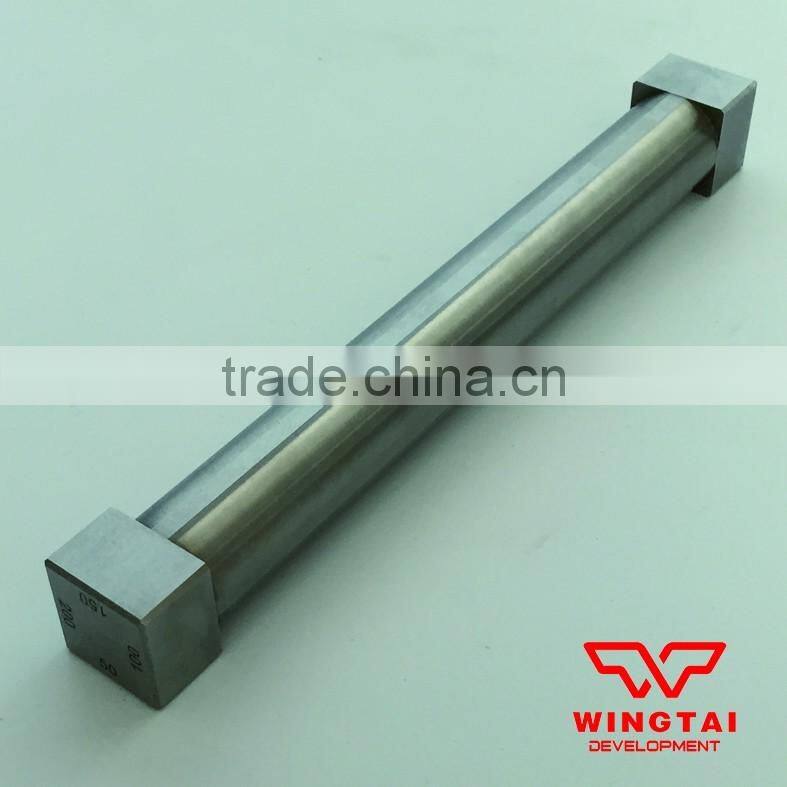

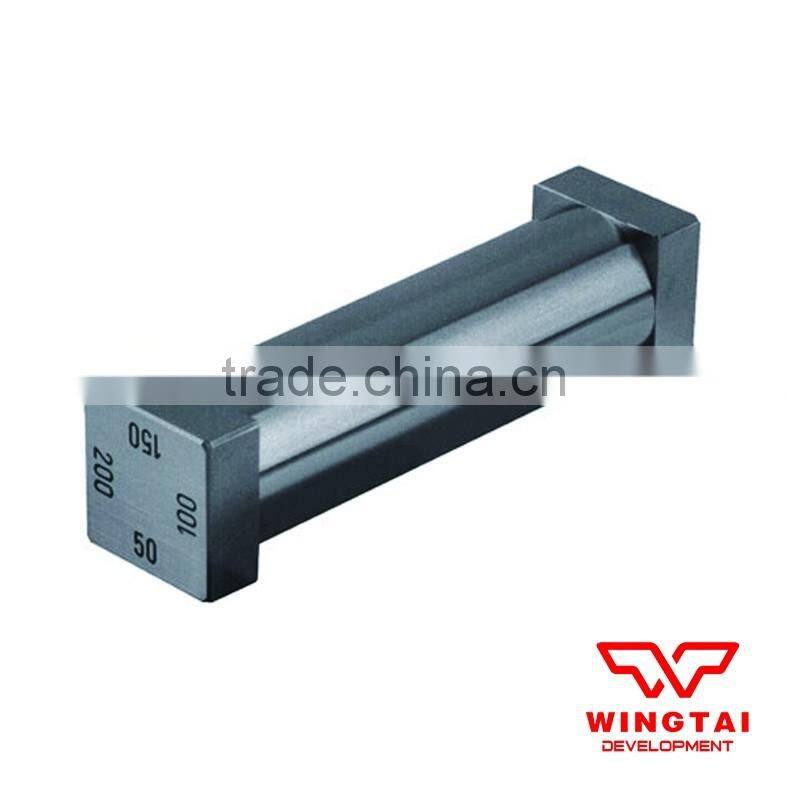

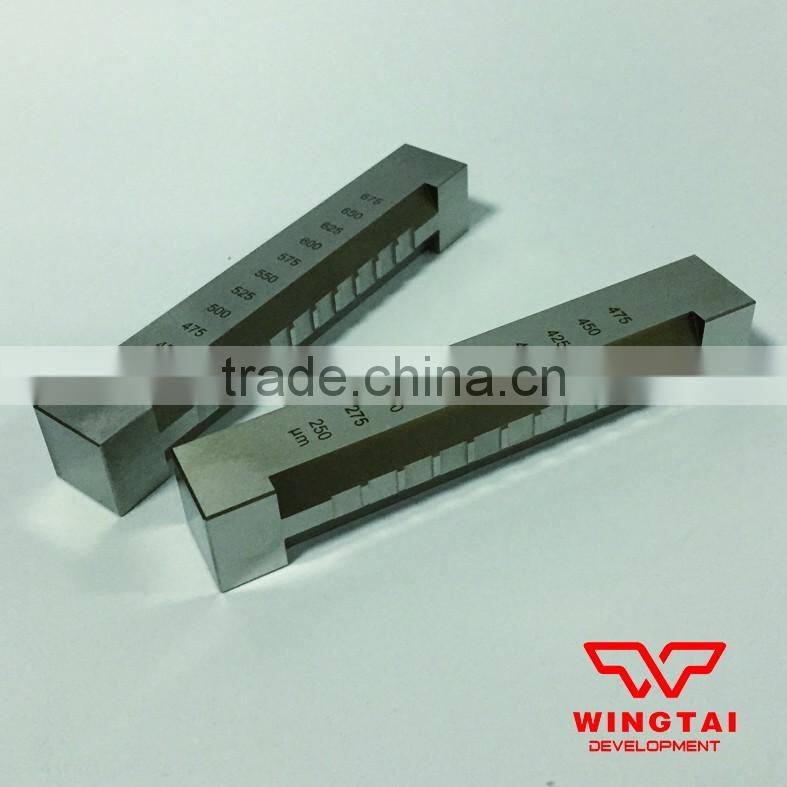

Use For Paint Four Side Wet Film Applicator | 160*190mm lengthen type Stainless Steel 4 Side Wet Film Applicator |
|
|
|

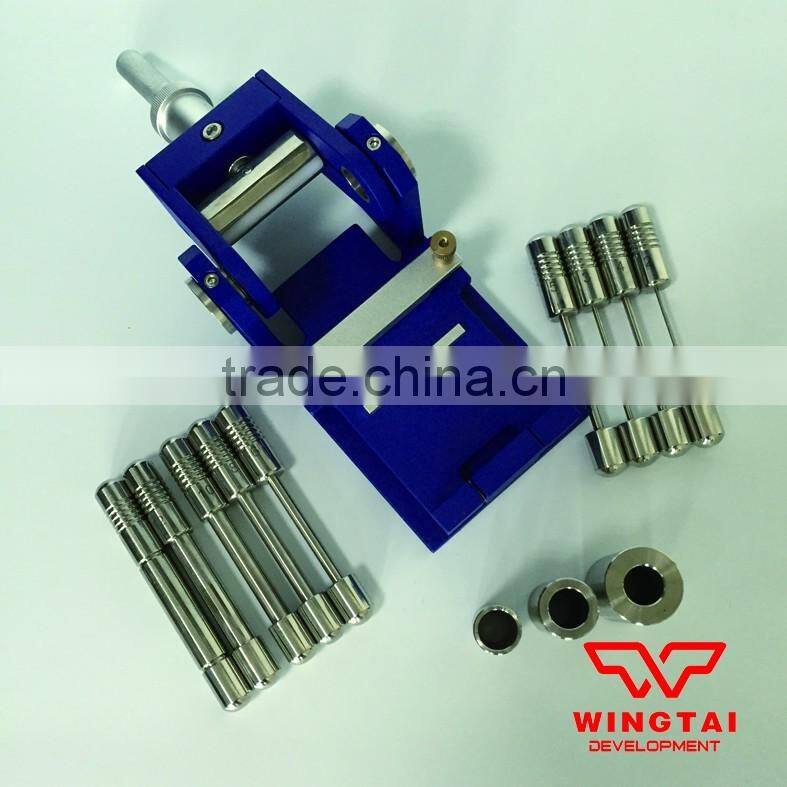

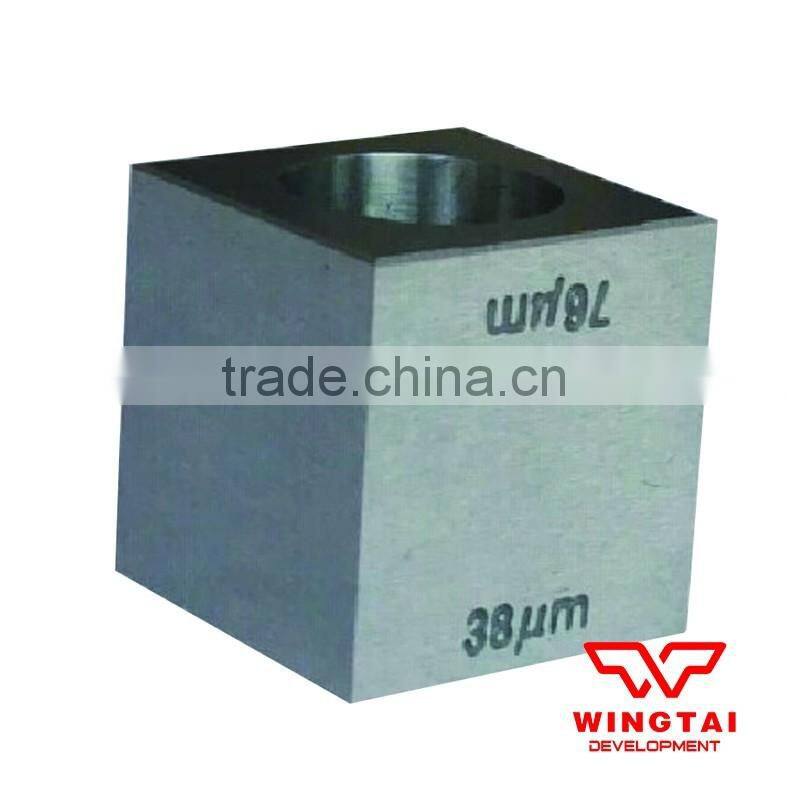

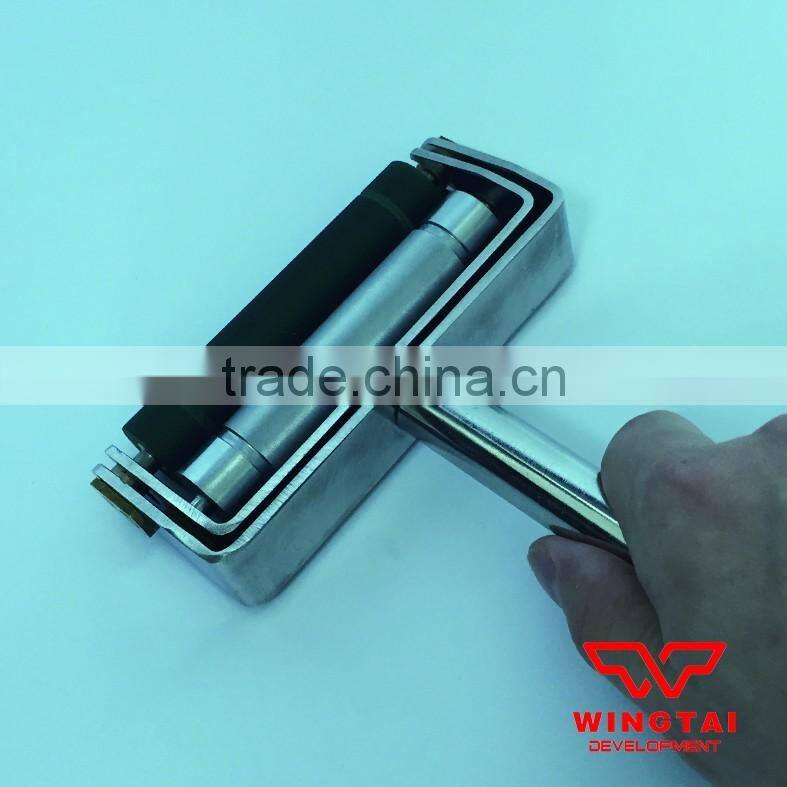

| (38um 76um) Cube Film Applicator | Hand Ink Proofer For Flexo Ink Tester |
Bending Testing Cylindrical Shaft Bending Device |
|
|
|

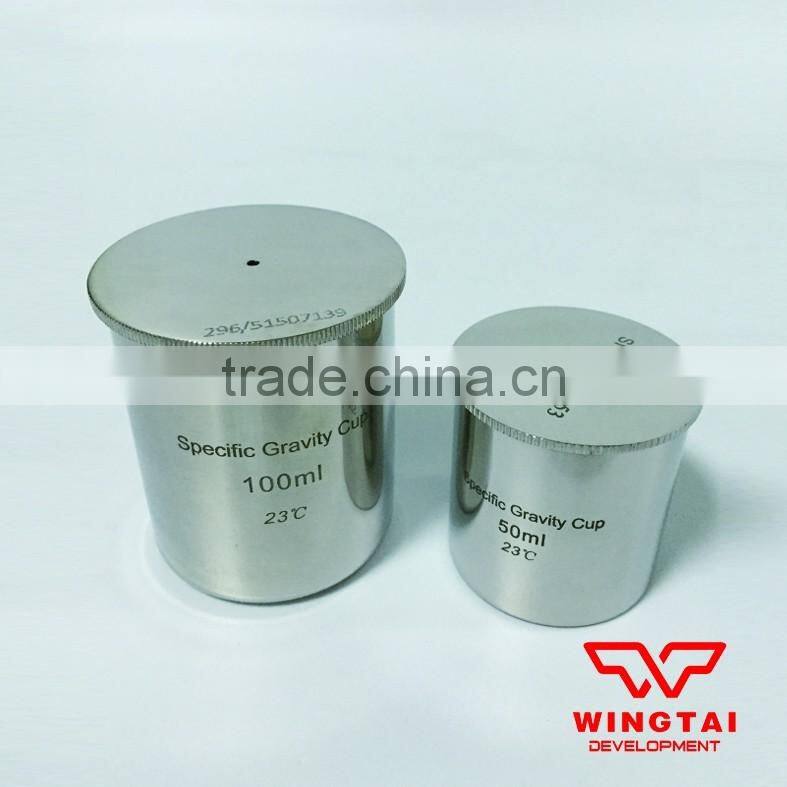

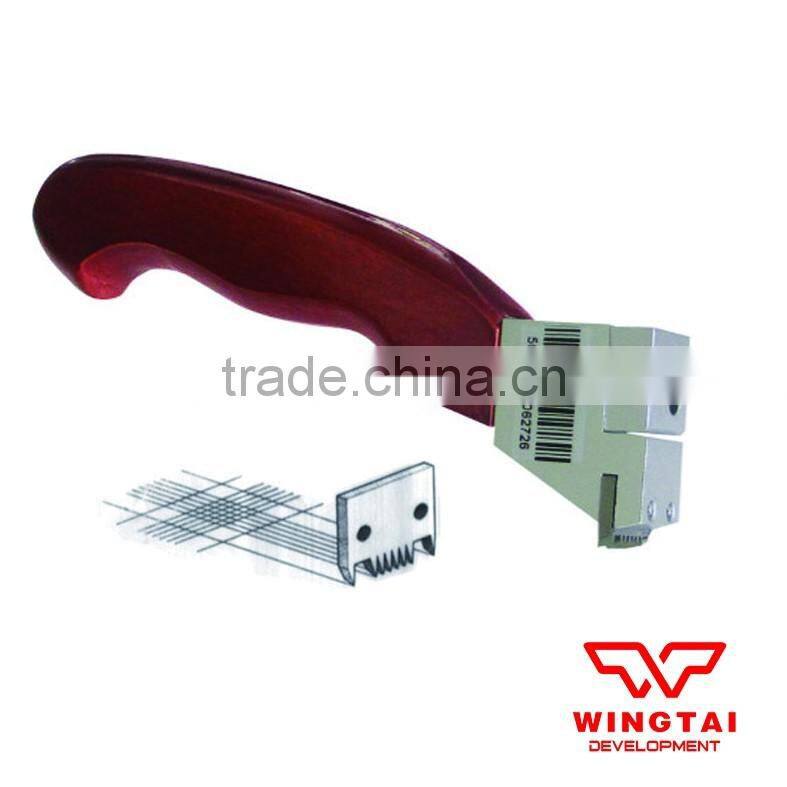

| Cross Cut Adhesion Tester For Paint | 50ml Stainless Steel Density Cup | GB/T 9264 Standard Sagging Tester For Pain |
|
|
|

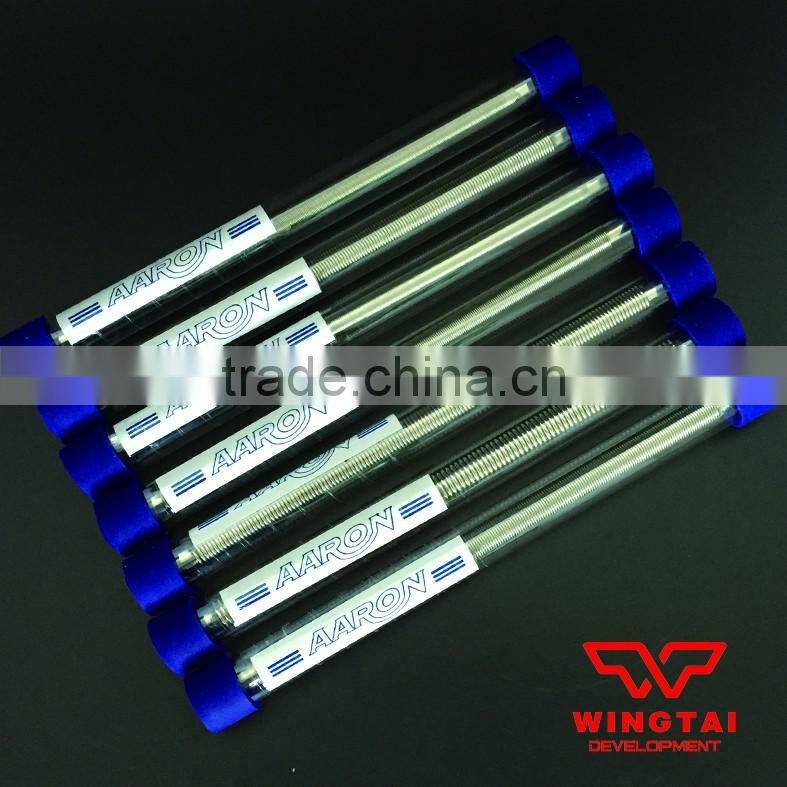

| Digital Display BGD186 Krebs Stormer Viscometer | RDS Scrape Ink Bar From United States | GB/T 1727-92 Standard AARON Scraping Ink Rod |
