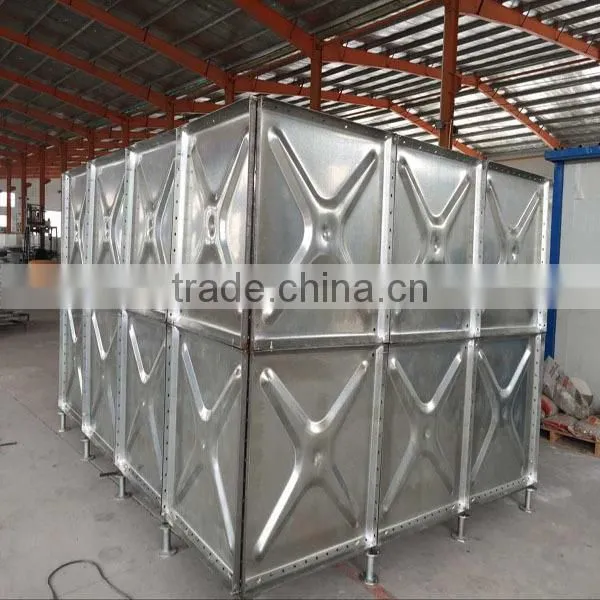

Thermal insulation press steel sectional water storage tank in china
thermal insulation water tank
Keywords to understand Huili water tank:
SMC/FRP/GRP water tank
Stainless steel water tank
Enameled water tank
Hot dip galvanised water tank
Underground water tank
All of water tank can add thermal insulation layer
Product Description
The BDF is the latest product of our company. The board is the center of the technical innovation, which inside use the SS304 and outside use the hot dip galvanized steel.This is perfect combination of the advantage of the stainless steel water tank and hot dip galvanized steel water tank.
Product Name |
BDF water tank |
Process technique |
Stamping forming process |
Raw material |
SUS304 inside hot dip galvanizing outside |
Accessories |
SUS304;hot dip galvanizing steel |
Assembling technique |
Ramming craft |
Foundation |
Concrete base |
Bottom base |
Channel steel |
Panel size |
1*1m,1*0.5m,0.5*0.5m |
Panel thickness |
2.8mm,3.3mm |
Working time |
More than 20 years |
Volume |
0.125~5000CBM |
Weight |
According to the dimension |
Color |
Silver |
Application
1. Construction & fire-fighting water supply
2. Water storage pool
3.Water supply for living and production of industry, mining and enterprise
4.Water circulation system, chilling water and hot water supply system
Assembling and check
1.There needs to Keep a maintenance channel which width no less than 700mm betwteen the
vertical wall and water tank, and between horizontal wall and water tank body no less
than 500mm.
2.When construction, finish concrete foundation first, make sure all slab joints and the surrounding
of the water tank is located on the support.
3.When finished assembled, turn off the The outlet pipe and a drain pipe first, then turn on the
inlet pipe, as water as examine to fill with water, no leakage in 24 hours is qualified.
Accessaries
Water tank insulation
Insulation material: polyurethane
Thickness: 30mm, 50mm, 80mm, 100mm
Outer coating material: color steel, galvanized steel, SUS201, SUS304

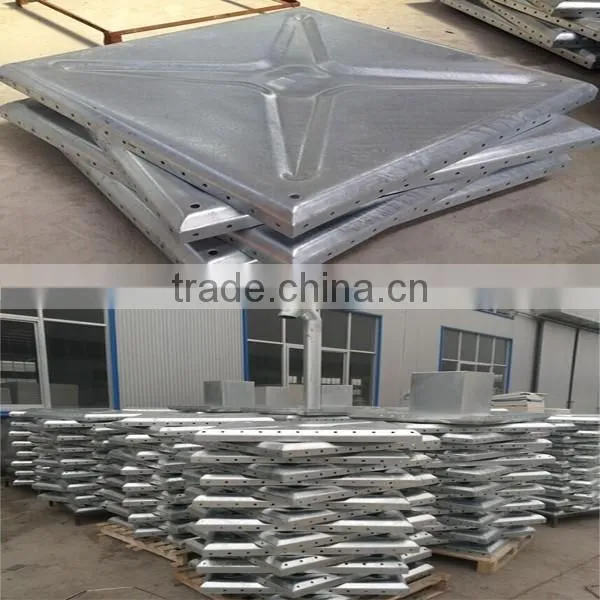

Panel show
Certification
Package ang delivery
Our services
1.Professional water tank manufacturer.Customized design is available, OEM and ODM are welcomed.
2.High quality,reasonable&competitive price.High speed forwarder services.
3.Prompt answer on Trademanager and Inquiry,will not delay 24 hours.
FAQ
1.What's the guarantee, in case the water tank breaks down?
The water tank has one year s guarantee. If it breaks down, generally speaking, our technician will figure out
what the problem may be, according to client s feedback. Parts will be replaced for free if the problems are
caused by quality fault.
2.How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List,
Commercial Invoice, B/L, and other certificates as required by clients.
3.How long is the delivery time?
For standard water tank less than 100m3, it would be 7-10 days; For non-standard water tank and customized water tank according to client s specific requirements,
it would be 15 to 30 days.
4.How's the payment?
Telegraphic Transfer(T/T).
5.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
6.How is the packing?
Solid Seaworthy plywood Box Package with Steel Belt
Save space as much as possible for container loading
