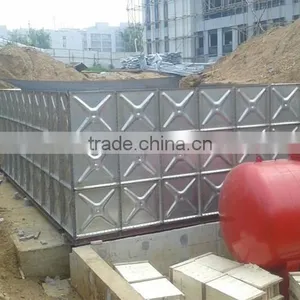

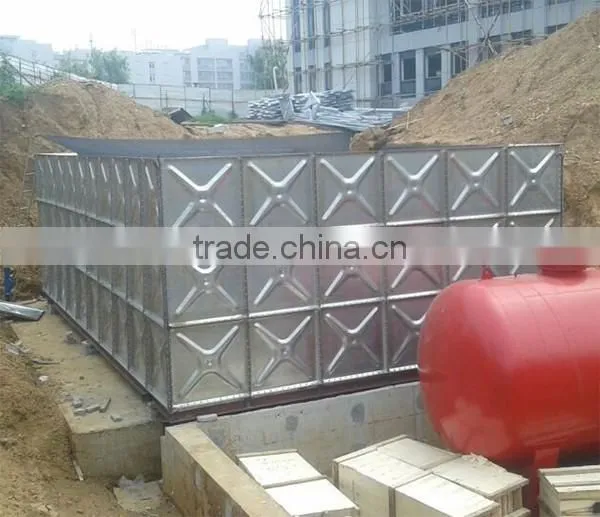

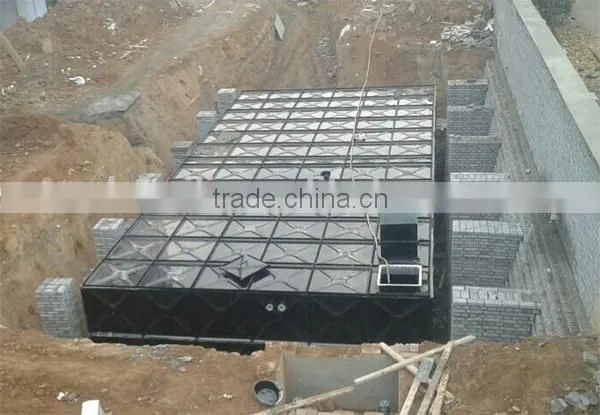

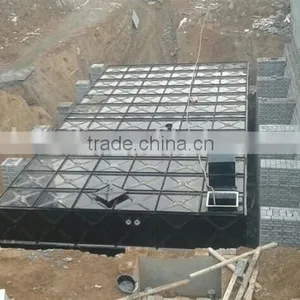

The best price!! Huili water tank with insulation panel
water tank with insulation panel
Brief Introduction
The BDF is the latest product of our company. The board is the center of the technical innovation, which inside use the SS304 and outside use
the hot dip galvanized steel.This is perfect combination of the advantageof the stainless steel water tank and hot dip galvanized steel water tank.
Product Name |
BDF water tank |
Process technique |
Stamping forming process |
Raw material |
SUS304 inside hot dip galvanizing outside |
Accessories |
SUS304;hot dip galvanizing steel |
Assembling technique |
Ramming craft |
Foundation |
Concrete base |
Bottom base |
Channel steel |
Panel size |
1*1m,1*0.5m,0.5*0.5m |
Panel thickness |
2.8mm,3.3mm |
Working time |
More than 20 years |
Volume |
0.125~5000CBM |
Weight |
According to the dimension |
Color |
Silver |
Application
1.Industrial and civil buildings and water storage of living cold water, hot water, fire water, the system expansion condensation water tank.
2.Water treatment industry among the original water tank,clean water tank, the sewage treatment tank of environmental protection equipment
3.Food and beverage, medicine, chemical industry reservoir, supplement, heat preservation water tank on boiler industry.
4.Solar energy heat pump, air and other ancillary heat with heat preservation water tank.
Advantages
1. Possessing the function of the stainless steel water tank
2.The panel thickness is only two types:2.8# and 3.4# which furthest
guarantee the working time and quality of the tank body.
3.The cover can be the hot dip steel board which can furthest limit your cost.
4.Imported material,never rust.
5.Choose import food grade stainless steel plate, corrosion resistance is strong, and can effectively reflect the sun's rays, not long moss, keep the water clean.
6.Light weight. Weight is only about a third of ordinary steel water tank.
7.Low price with stamping process type forming process,the
characteristic plate type,with the minimum consumption of materials to achieve high strength requirements. the price is close to ordinary steel tank.
8.Unique structural design. It will never leak, welding, high intensity, and It is different withbolt structure , eliminating the sealing strip, won't appear the phenomenon of leakage and untight seal .
Assembling and check
1.There needs to Keep a maintenance channel which width no less than 700mm betwteen the vertical wall and water tank, and between horizontal wall and water tank body no less than 500mm.
2.When construction, finish concrete foundation first, make sure all slab joints and the surrounding of the water tank is located on the support.
3.When finished assembled, turn off the The outlet pipe and a drain pipe first, then turn on the inlet pipe, as water as examine to fill with water, no leakage in 24 hours is qualified.
Accessaries
Water tank insulation
Certification
Package and delivery
Company show
