Water tank manufacturer!! DezhouHuili hot galvanized sectional panel underground water storage tank
galvanized sectional underground water tank
Keywords to search Huili water tank:
SMC/FRP/GRP water tank
Stainless steel water tank
Enameled water tank
Hot dip galvanised water tank
BDF/CSB Underground water tank
All of water tank can add thermal insulation layer
Brief Introduction
The BDF is the latest product of our company. The board is the center of the technical innovation, which inside use the SS304 and outside use the hot dip galvanized steel.This is perfect combination of the advantageof the stainless steel water tank and hot dip galvanized steel water tank.
Product Name |
BDF water tank |
Process technique |
Stamping forming process |
Raw material |
SUS304 inside hot dip galvanizing outside |
Accessories |
SUS304;hot dip galvanizing steel |
Assembling technique |
Ramming craft |
Foundation |
Concrete base |
Bottom base |
Channel steel |
Panel size |
1*1m,1*0.5m,0.5*0.5m |
Panel thickness |
2.8mm,3.3mm |
Working time |
More than 20 years |
Volume |
0.125~5000CBM |
Weight |
According to the dimension |
Color |
Silver |
Advantages
1. Possessing the function of the stainless steel water tank .
2.The panel thickness is only two types:2.8# and 3.4# which furthest guarantee the working time and quality of the tank body.
3.The cover can be the hot dip steel board which can furthest limit your cost.
4.Imported material,never rust.
5.Choose import food grade stainless steel plate, corrosion resistance is strong, and can effectively reflect the sun's rays, not long moss, keep the water clean.
6.Light weight. Weight is only about a third of ordinary steel water tank.
7.Low price with stamping process type forming process,the
characteristicplate type,with the minimum consumption of materials to achieve high strength requirements. the price is close to ordinary steel tank.
8.Unique structural design. It will never leak, welding, high intensity, and It is different withbolt structure , eliminating the sealing strip, won't appear the phenomenon of leakage and untight.
Accessaries
1 Bolt. nut & washers
Option: hot-dipped galvanized material/stainless steel SS304.
2 Sealing material
Sealing material have Rubber strip EPDM, glass cement.
3 Covers
The tank cover shall be constructed from 1.4mm to 3.0mm of thickness hot-dipped galvanized material according to the requirement.
4 Ladders and Level Indicator
Internal & external ladder shall be made of hot-dipped galvanized material/stainless steel SS304.
Tank insulation
Insulation material: polyurethane
Thickness: 30mm, 50mm, 80mm, 100mm
Outer coating material: color steel, galvanized steel, SUS201, SUS304
Certification
Package ang delivery
Our services
1.Professional water tank manufacturer.Customized design is available, OEM and ODM are welcomed.
2.High quality,reasonable&competitive price.High speed forwarder services.
3.Prompt answer on Trademanager and Inquiry,will not delay 24 hours.

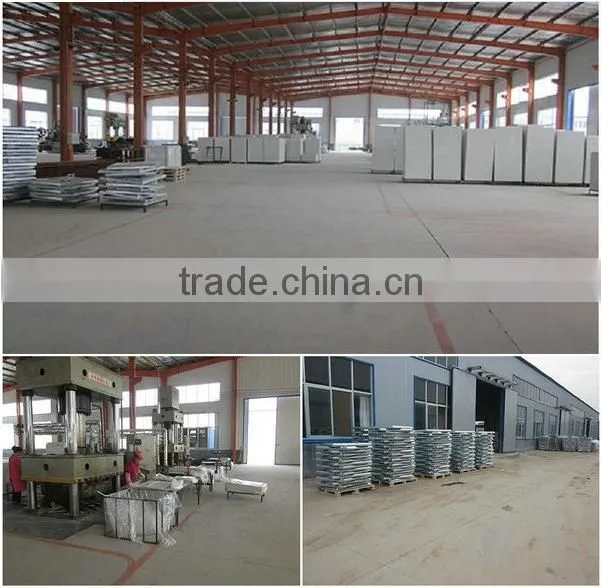

Company show
