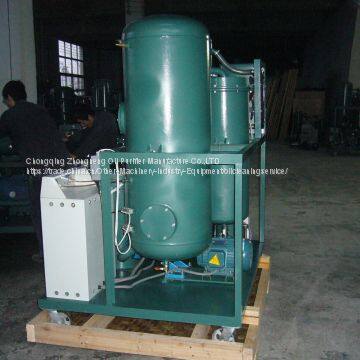

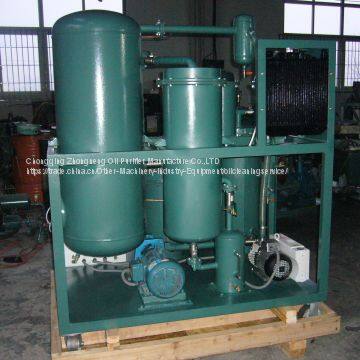

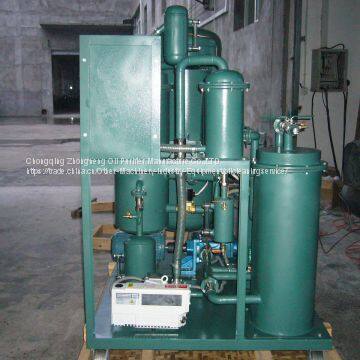

TYA Engine Oil Recycling Machine

Application

The TYA series can fast degas, dewater, and remove the impurity and the volatile matter (for example ethyl alcohol, gasoline, ammonia and so on). Enhances the oil quality, restores the lubricating oil viscosity, augments the flash point and improves the operational performance. Guaranteed the hydraulic system and the dynamic system, the lubrication system normal operation, so the machine is suit for many lines, such as the mine, metallurgy, electric power, transportation, manufactures and so on. Regenerating the used hydraulic oil, lubricating oil, coolant oil, machine oil and so on.

Features

1. With the strong ability to filter the impurity, which can filter the particles completeTYA.

2. It has the back flush system, which can clear impurities automaticalTYA.

3. Advanced dielectric condensation device

4. This machine installs the new pressure protector, which can control the temperature automaticalTYA; also it can drain water on line by the water–separator device. So it is easy to control this machine.

5. We adopt the high quality filter materials, which has a good function in anti-corrosive, thermostable, mechanical strength. EspecialTYA, the precision of eliminates impurity is high and the service life is long. Also, it has a large volume for storing the impurities.

6.  The unique degas and dewater system: Using the Stereo-Evaporation technical, which can separate the water and gas from the oil quickTYA by the Multi-level water-oil separation technology.

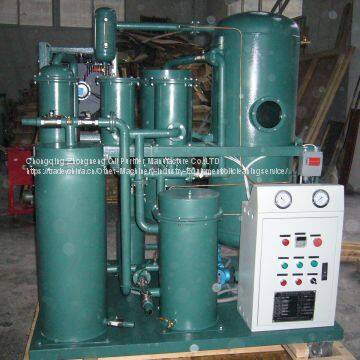

Ⅵ Operating Procedures of Control Panel

1. For external wiring of the control panel, please refer to the Electrical Diagram. Connect the mains of 318V 3-phase 4-wire AC to the left of the panel and make sure that the panel outer casing is reliably grounded.

2. Turn on the main switch and the power indicator is lit up, which shows the power is on.

3. When heating, turn on the temperature controller, and the red light dedicates that being preparation situation. Then turn on the switch of temperature controller set the working temperature to start the heater for oil heating. When the oil temperature reaches the set value, the temperature controller will automatically turn off the heater. Therefore, automatic heating can be conducted with thermostatic effect.

4. After stopping operation, turn off the main switch and lock the door of the control panel.
