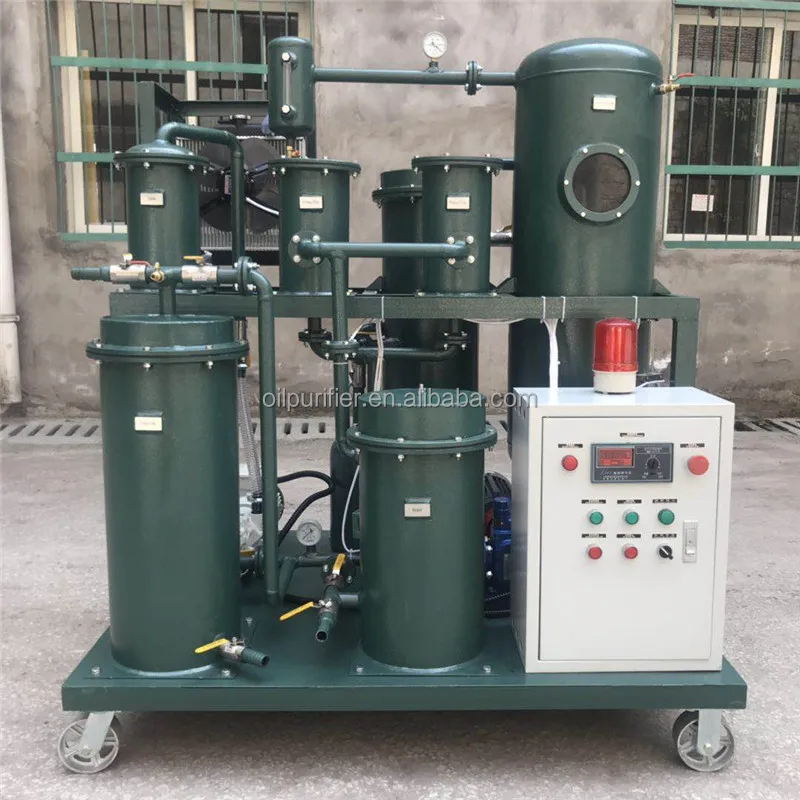

300L/min Waste Hydraulic Oil Purification Machine, Lubricant Oil Blending Plant
Features:
1. With the strong ability to filter the impurity, which can filter the particles completely.
2. It has the back flush system, which can clear impurities automatically.
3. Advanced dielectric condensation device
4. This machine installs the new pressure protector, which can control the temperature automatically; also it can drain water on line by the water–separator device. So it is easy to control this machine.
5. We adopt the high quality filter materials, which has a good function in anti-corrosive, thermostable, mechanical strength. Especially, the precision of eliminates impurity is high and the service life is long. Also, it has a large volume for storing the impurities.
6. The unique degas and dewater system: Using the Stereo-Evaporation technical, which can separate the water and gas from the oil quickly by the Multi-level water-oil separation technology.
Technical parameters:
Item |
Model Unit |
TYA-10 |
TYA-20 |
TYA-30 |
TYA-50 |
TYA-100 |
TYA-150 |
TYA-200 |
TYA-300 |
|
Flow rate |
L/Hr |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
Vacuum degree |
Mpa |
-0.06 ~ - 0.095 |
||||||||
Working Pressure |
Mpa |
≤0.4 |
||||||||
Temperature Degree |
℃ |
0 ~ 100 |
||||||||
Power Supply |
380V,3phase, 50HZ (or as required by customer) |
|||||||||
Working noise |
DB (A) |
≤75 |
≤75 |
≤75 |
≤78 |
≤78 |
≤78 |
≤80 |
≤82 |
|
Electric heating Power |
KW |
18 |
18 |
24 |
30 |
54 |
72 |
90 |
120 |
|
Total electric Power |
KW |
19.3 |
19.3 |
25.65 |
32 |
57.1 |
79 |
98 |
130 |
|
Size |
mm |
1260x900x 1500 |
1260x900x 1600 |
1500x1050x1650 |
1600x1150x 1700 |
1750x1250x 1800 |
1900x1600x 1950 |
1900x1700x 2000 |
2100x1700x 2100 |
|
Weight |
Kg |
450 |
550 |
600 |
750 |
850 |
1000 |
1200 |
1500 |
|
The dimension and weight will be changed with chenging the technical specification.

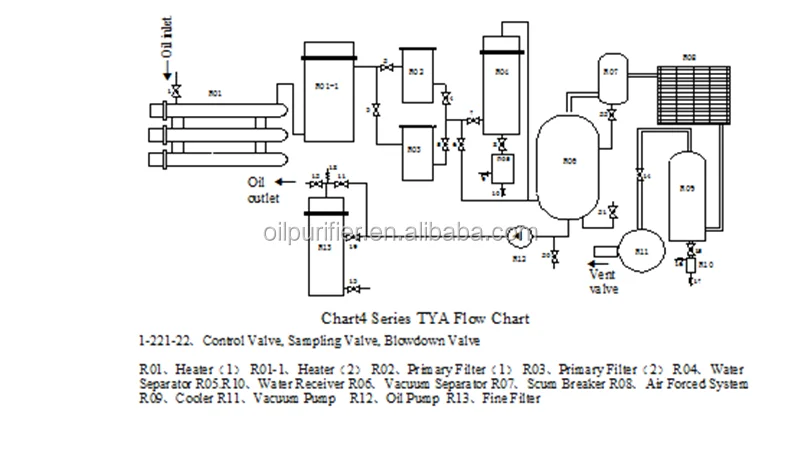

Flow chart

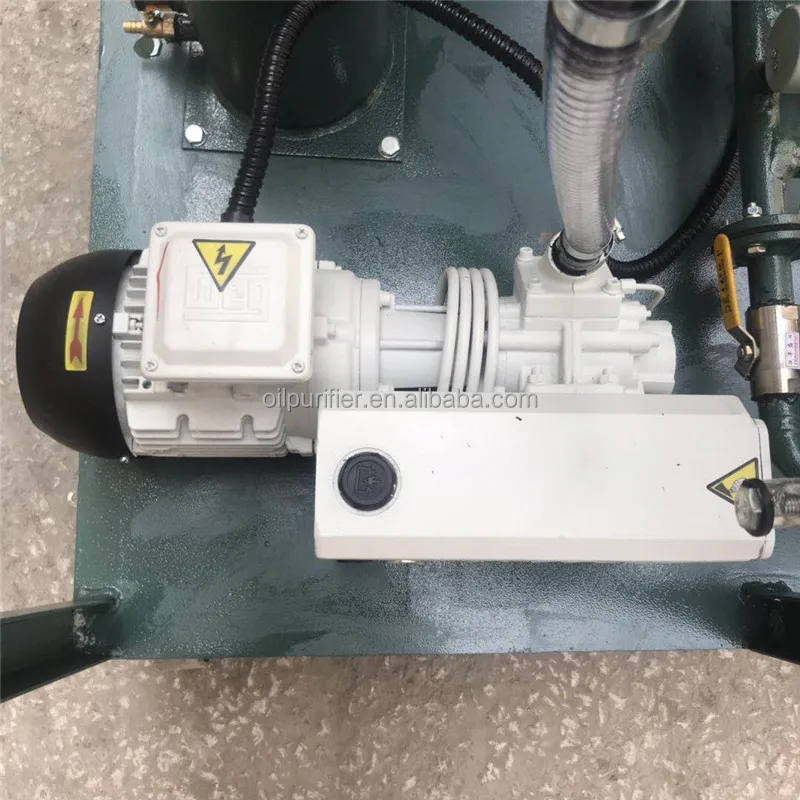

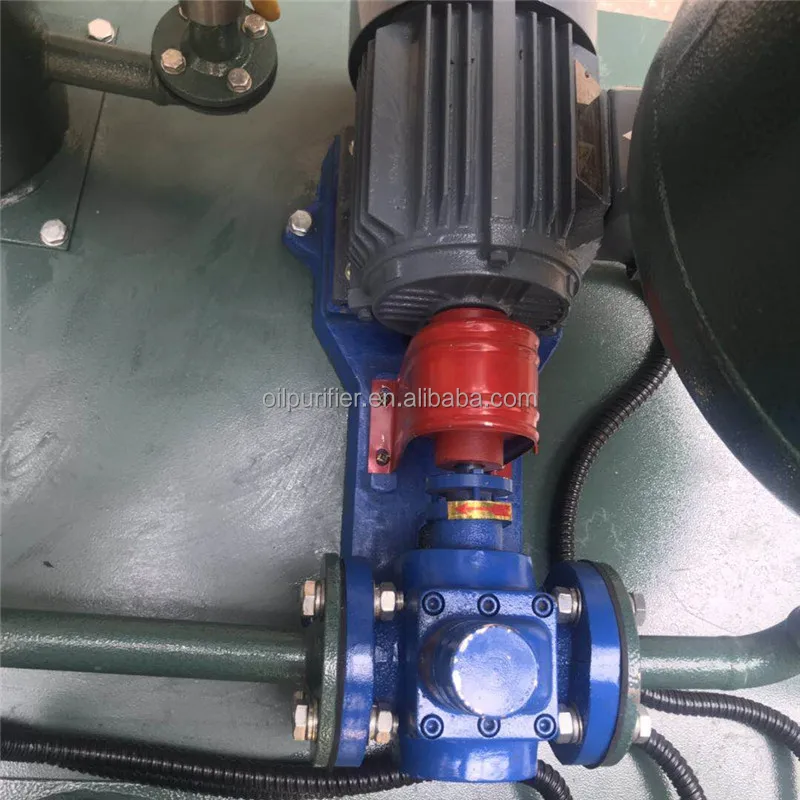

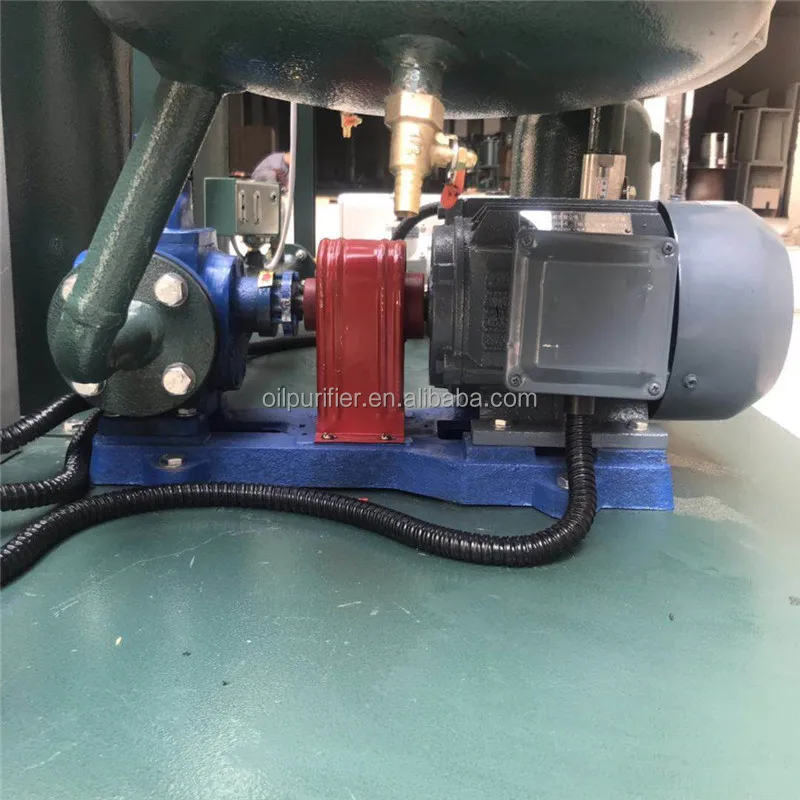

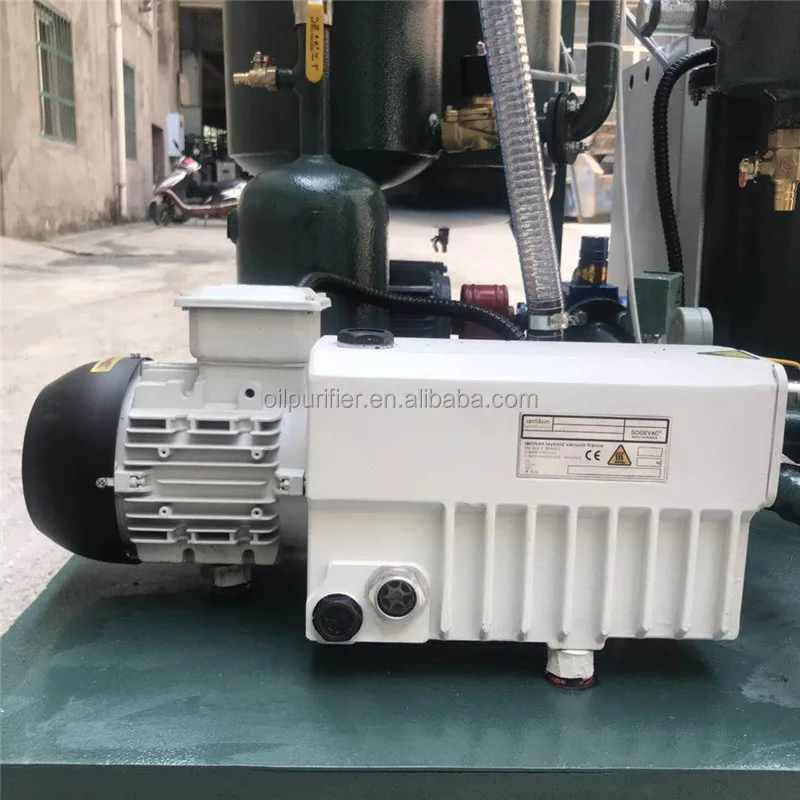

Details: Parts of Oil Purifier
Advantages of our purifier
A. 5-10 years quality guarantee.
B. Brand parts of Siemens, Schneider etc.
C. Safe, Anti-explosion design
D. Full-automatic, no need worker presence
E. Environmental, equips exhaust treatment device.
F. High recovery, no waste of energy.

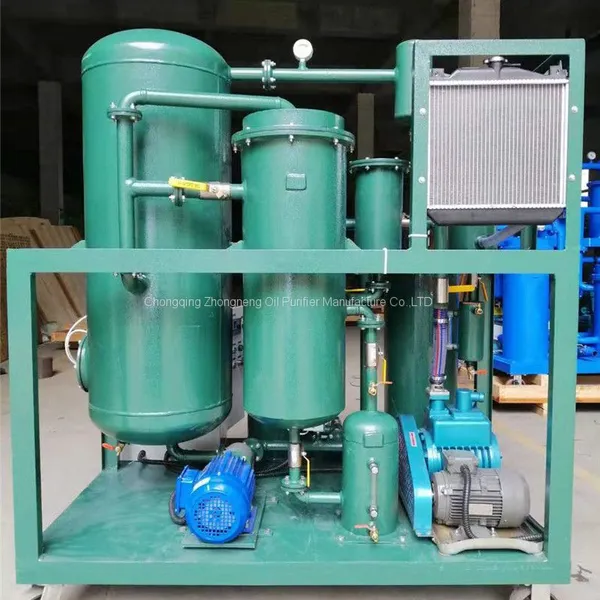

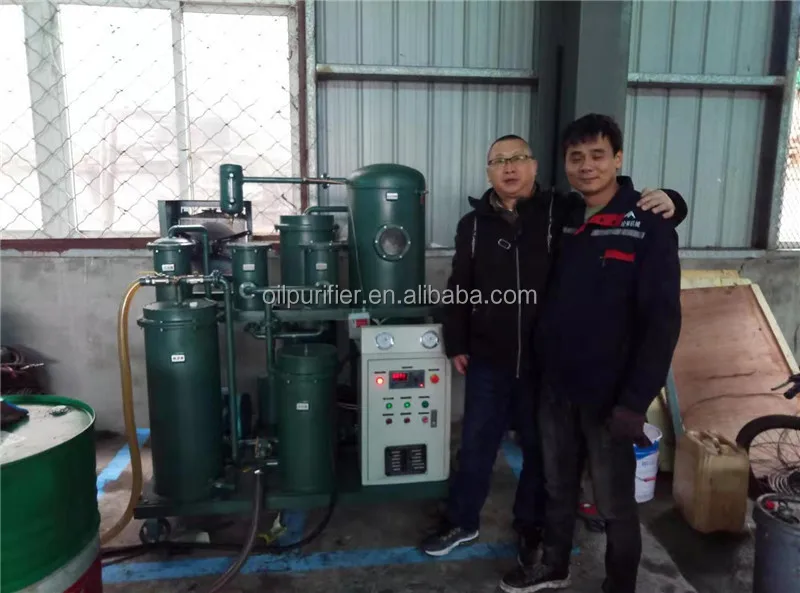

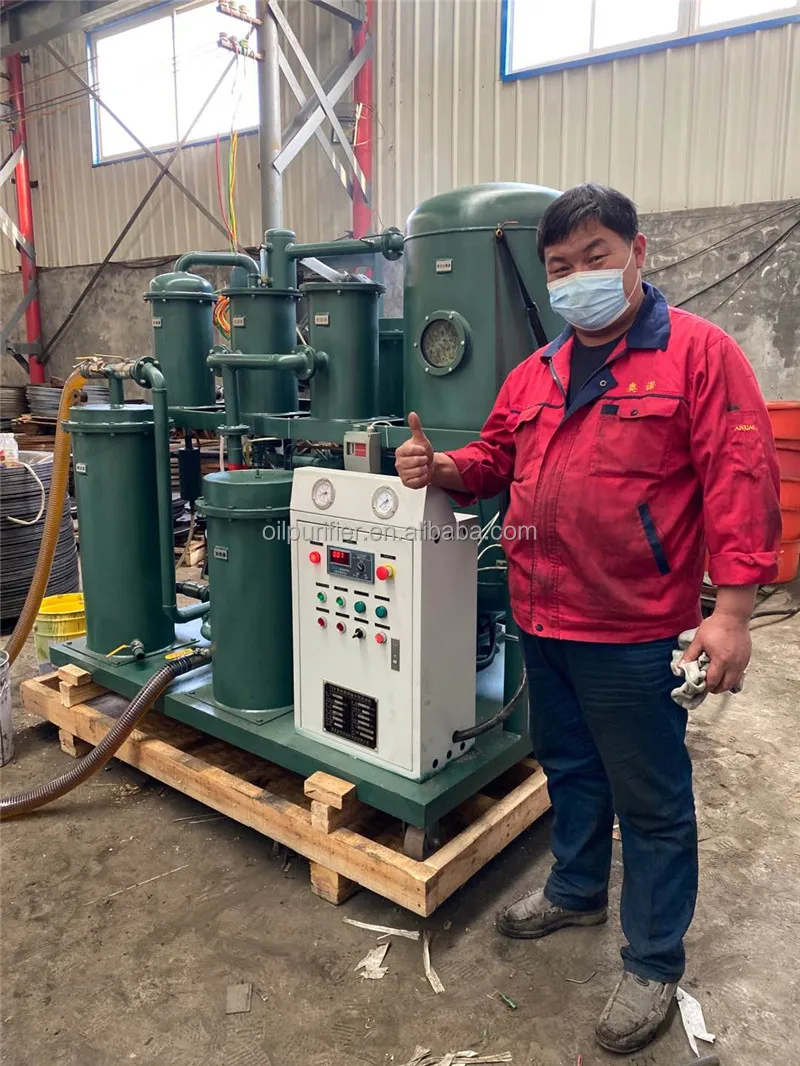

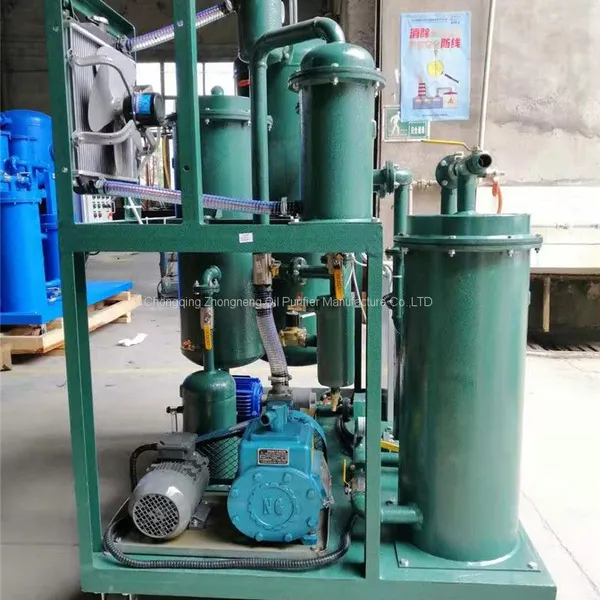

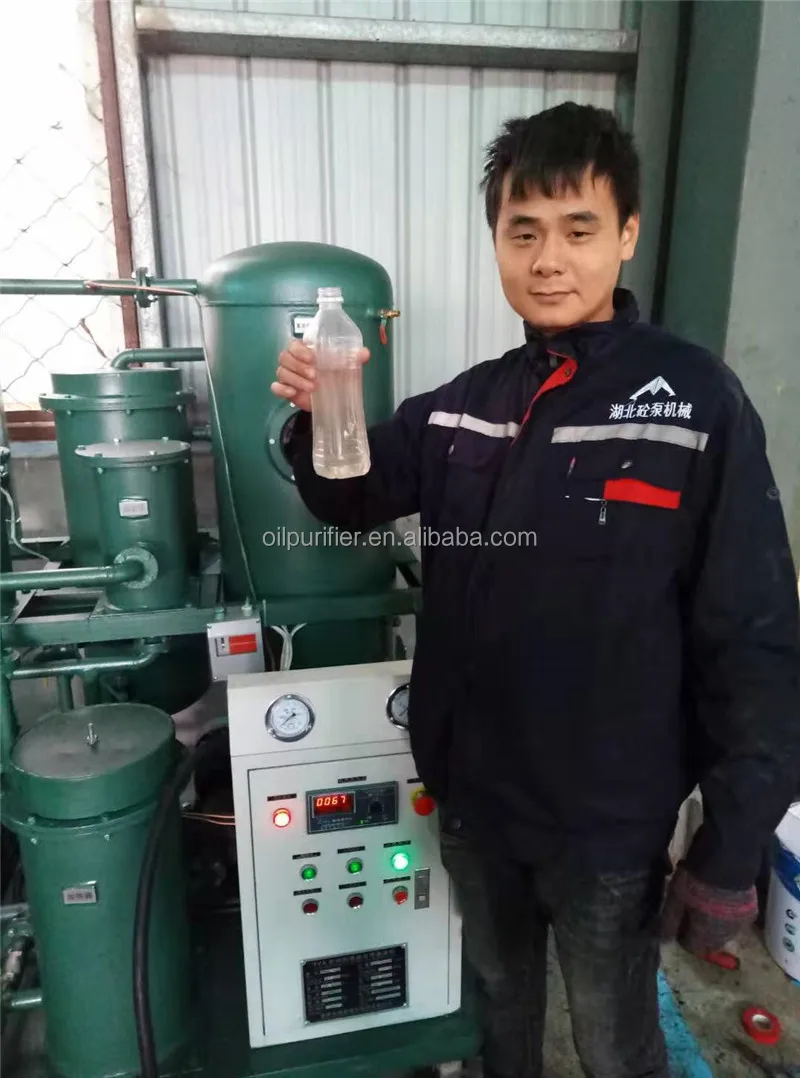

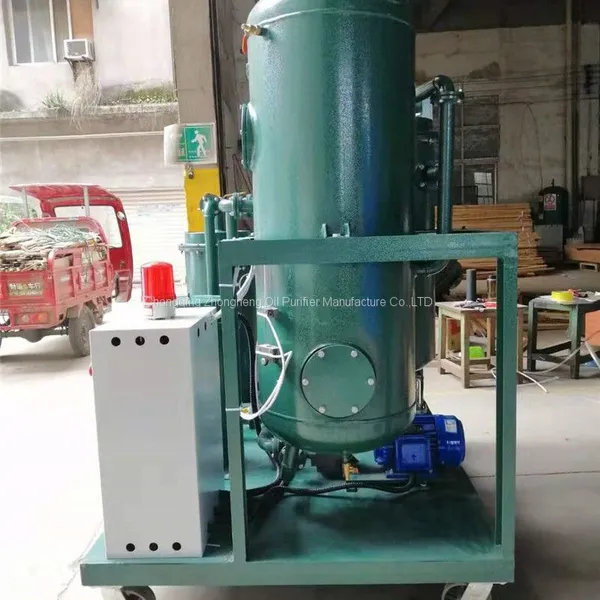

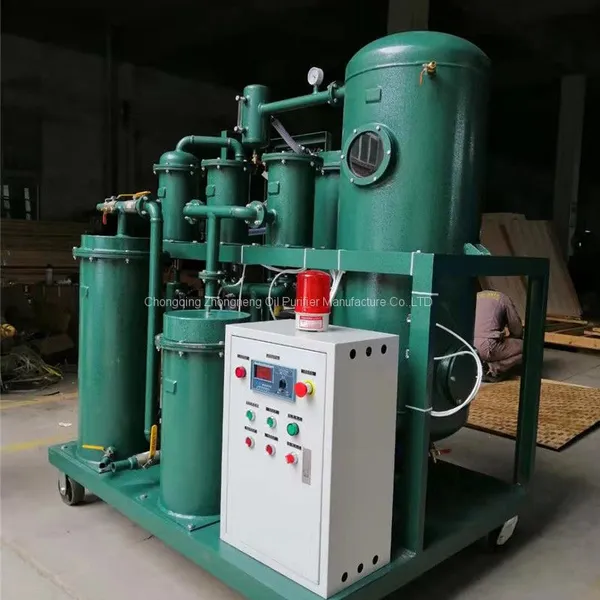

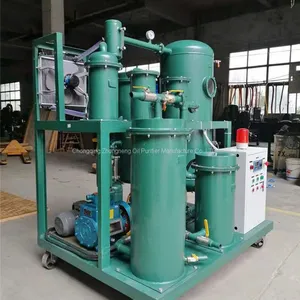

Pictures
Vacuum Dehydrated Palm Oil/Used Cooking Oil Recycling Machine
If This not your needing type, follow is our catalogue for your to choose:
Series ZY Single-Stage Vacuum Transformer Oil Purifier
Series ZYD Double High Vacuum Transformer Oil Purifier(Application Large Power Equipments Of Above 110KV especially for those over 500 Meters Height Area).
Series ZYB Multiply-Function Insulating Oil Treatment Machine
Series TY Turbine Oil Purification Apparatus
Series TYA Lubricating Oil/Hydraulic Oil Purification unit(Apply to Degassing)
Series TYA-C Luricating Oil Purification Machine(Apply to Decolorization)
Series BOD Black Dirty Oil Regeneraion Equipment
Series DOD Waste Oil Distillation System
Series TYB Portable Light Fuel oil Purification Machine
Series LY Plate Pressure Oil Purifier
Series TYD Vacuum Dehydrator
Series JL Portable Oil Filtering and Oiling Machine
Series IIJ Oil Tester(BDV Tester)
Standard wooden case package of export, it is suitable for long distance sea shipping and train transportation, and we will check carefully per packing process before shipment.
Since the foundation of our company, we have been devoting our efforts to developing better purifiers for energy saving. With the intellectual support form our first-rate oil purification experts and encouraged by the company's modern management mechanism, we have developed six series of products, including hundreds of oil purifier models with independent intellectual property and advanced purification technology. Our equipment can be applied to many fields, such as electric power, petroleum chemical, metallurgical industry, mining, aviation, shipping railway and so on.
We adhere to the tenet of mutual-benefit and win-win business. With the sincere and pragmatic work attitude, we would like to open up a new oil purification are with our customers.
If you have any question, Please Contact with us directly!!
