Product Description

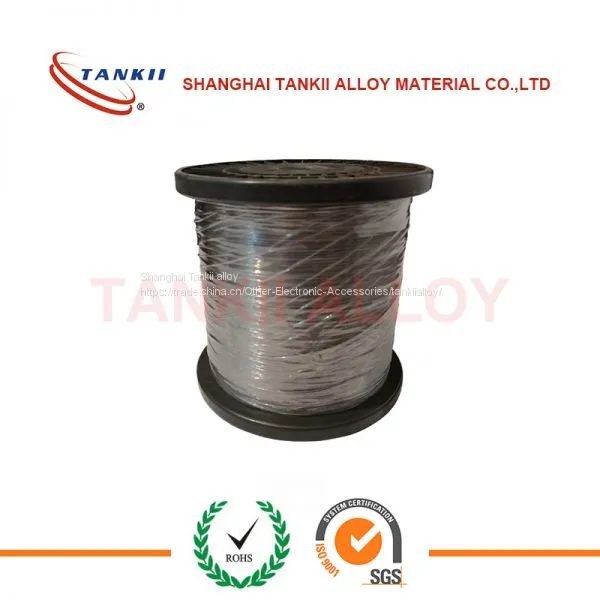

k type thermocouple wire 25AWG chromel alumel wire
What is a Thermocouple?
A Thermocouple is a sensor used to measure temperature. Thermocouples consist of two wire legs made from different metals. The wires legs are welded together at one end, creating a junction. This junction is where the temperature is measured. When the junction experiences a change in temperature, a voltage is created. The voltage can then be interpreted using thermocouple reference tables to calculate the temperature.
NiCr-NiSi /NiAl (Type K) thermocouple wire finds the widest use in all basemetal thermocouple, at temperature above 500 °C.
Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.
NiCr-NiAl thermocouple wire can be produced as per the chemical composition requirement of the customers.
Insulation material: PVC, PTFE, FB or as per the customer's requirement.
Application of thermocouple wire
1. Heating - Gas burners for ovens
2. Cooling - Freezers
3. Engine protection - Temperatures and surface temperatures
4. High temperature control - Iron casting
Parameters of thermocouple wire
| Chemical Composition | |||||
|
Conductor Name |
Polarity |
Code |
Nominal Chemical Composition /% |
||
|
Ni |
Cr |
Si |
|||
|
Ni-Cr |
Positive |
KP |
90 |
10 |
-- |
|
Ni- Si |
Negative |
KN |
97 |
-- |
3 |
| Working Temperature | ||
|
Diameter/mm |
Long time Working temperature /ºC |
Short period Working temperature /ºC |
|
0.3 |
700 |
800 |
|
0.5 |
800 |
900 |
|
0.8,1.0 |
900 |
1000 |
|
1.2,1.6 |
1000 |
1100 |
|
2.0,2.5 |
1100 |
1200 |
|
3.2 |
1200 |
1300 |
Packing And Delivery of thermocouple wire
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Detail: 7days, as the order quantity of thermocouple wire
About Us
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of thermocouple wire, thermocouple cable, thermocouple strips, thermocouple connectors and other thermocouple products.
Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
We are willing to establish strong and long-time partnership with our customers
Your inquiry is a gift for us, your reply is a trust to us, your trust will bring us to provide you the best services in the business. Welcome to call me or email to me for more info on thermocouple wire or thermocouple cable.
