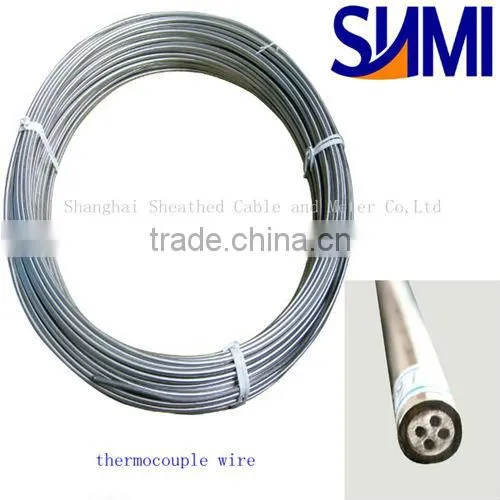

thermocouple wire
Specification:
1.Model:KT2-A-6.0;
2.Graduation Mark:T;
3.Wire number:Duplex type( 4 cores);
4.Material of the outer protection tube:A-304/321(0Cr18Ni9) ;
Other types of outer protection tube are available:
[I].A-304 or321 [II].B-GH3030 [III].C-GH3039 [ IV].IN-INCONEL600 [V].P-310S [VI]. HL-316L
5.Diameter of outer tube:6.0mm;(diameter from 3.0mm to 8.0mm available)
6.Thickness of outer tube:0.74mm;
7.Inner core element:Cu/CuNi;
8.Diameter of core wire:0.91mm
9.Limited length for piece:60m;
10. Special requirements can be customized .
Package: 10-30 m/coil,3 coils/carton box
Thermocouple temperature tolerance:
1.Class I:
Temperature range:-40°C to 150°C,the tolerance is ±0.5°C;
Temperature range:125°C to 350°C,the tolerance is± 0.004•|t|;
2.Class II:
Temperature range:-40°C to 150°C,the tolerance is ±1.0°C;
Temperature range:133°C to 350°C,the tolerance is± 0.0075•|t|;
Other details:
Sheathed thermocouple cable materials are extremely important for the manufacture of sheath thermocouple. They are firm assemblies which are being manufactured by a combined processing of the coupling wire or pure nickel wire or filigrees, organic mineral insulant, metal sleeve. It is widely applicable for the industrial departments and sic-tech fields in all trades and professions.Our sheathed cable company is one of the largest manufacturers in Shanghai, China. It may furnish various models & specifications materials.
Features:
Small external diameter, quick heat response, may be bent, long lifetime, fine air-tightness, wide thermometric scope, high voltage resistant, anti-vibration, narrow mounting pipeline, may be used under bending conditions.
For more information, please visit our website or contact us directly.
