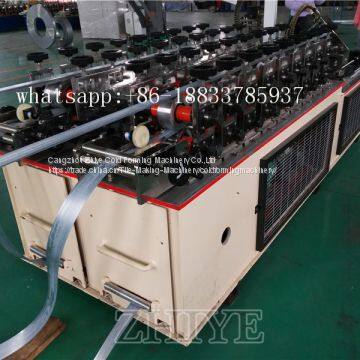

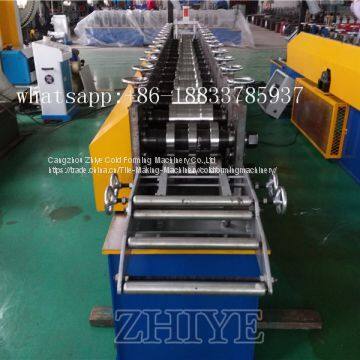

L Furring Channel Cold Roll Forming Machinery
- 70 Set / Sets per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 35 days
Product Details
Brand Name: | ZY | Place of Origin: | China | Model Number: | as client requirement |
Use: | Roof | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 2 years | Weight: | 5 tons | Dimension(L*W*H): | 8000*600*900mm |
Production Capacity: | 70 set per month | Condition: | New | Voltage: | 380v |
Power(W): | 8kw | Type: | Tile Forming Machine | Tile Type: | Colored Steel |
Product Description
L Furring Channel Cold Roll Forming Machinery Install With Tee Grid Keel Technical parameters:
Forming device
1 Shaft material: 45# steel, outer diameter 40mm
2 Roller material: #45 steel
3 Number of forming station: 7 pairs
4 Gear transport
5Forming speed is 10m/min
Hydraulic Cutting device
1 Hydraulic Station: 1set
2 With hydraulic station, motor 3 KW
3 Cutting press 20 ton
4 Hydraulic cutter
5 Blade material: G12 steel with quenched treated 60-62°C
6 Cutting system: advanced hydraulic drive, automatic cutting after
forming, no distorting or wasting, high level safety factor.
Controlling Device
1 Screen: Delta
2 PLC: DELTA
3 Automatic length measurement
4 Automatic quantity measurement
5 Computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved
6 Length inaccuracy can be amended easily
No. | L Furring Channel Cold Roll Forming Machinery | |
1 | suitable material | Colored Steel plate, aluminum plate, GI, PPGI, |
2 | Width of the raw material | As customer request |
3 | Rows of rollers | 10-12 rows |
4 | material of roller | high grade 45# steel(plated chrome on surface) |
5 | appearance size | 5.6*1.30*1.35m |
6 | Main motor | Main motor 4kw |
7 | Hydraulic motor | 4kw |
8 | Thickness of raw material | 0.3-1.0 mm |
9 | Productivity | 15-25m/min |
10 | diameter of shaft | 20mm(Solid shafts) |
11 | Voltage | 380V 50Hz 3phases as per your request. |
12 | Structure plate thickness | Min 20mm |
13 | Encoder brand | Omron |
14 | Chain thickness | 1.5” |
15 | Weight | Approx 2.5T |
16 | Control system | Delta PLC (made in Taiwan province of China.) |
17 | Roller material | No. 45 steel |
18 | Cutter material | Cr12 mould steel with quenched treatment |
