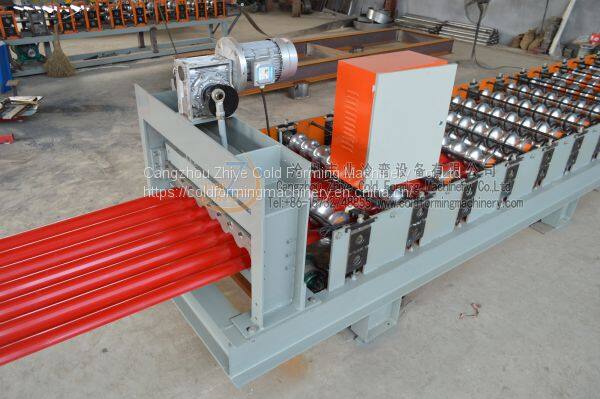

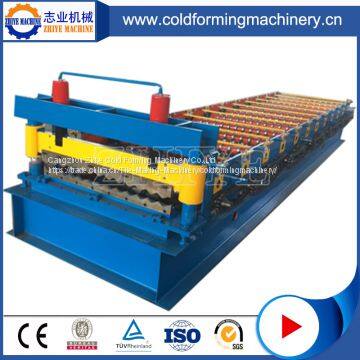

Corrugated Steel Roofing Sheet Roll Forming Machine:
The tiles produced by this Corrugated Steel Roofing Sheet Roll Forming Machine are widely used in all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance, high efficiency and reliable working.It consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, high precision counter and so on.
Corrugated Steel Roofing Sheet Roll Forming Machine Usage:Put the raw material(steel plate) through the beach to manufacture and process,
it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron.
1.Suitable material | Color steel sheet , galvanized steel sheet,aluminum sheet |
2.Installation Dimension (L*W*H): | 6.5m*1.5m*1.4m |
3.Main motor power | 3KW with Cycloidal reducer |
4.Hydraulic station power | 3KW |
5. Hydraulic oil pump | CB-E 310 |
6.Thickness of material | 0.2mm~0.8mm |
7.Diameter of principal axis | Φ70-90mm |
8.Material expand width | 1000,1200,1250mm |
9.Electric tension | 380V 3phase 50HZ or as the customer's requirements |
10.Material of roller | High grade 45# forged steel plated with hard chrome plating |
11.Controlling system | PLC |
12.Processing speed | 3-6m/min |
13.Processing precision within | 1.00mm (depend on design) |
14.Material of cutting blade | Cr12 mould steel with quenched treatment |
15.Kind of drive | 0.6 inch chain link bearing model 6210 |
16.Roller station | 8-20 Rollers |
17.Roller material | high grade 45#steel; Cr12 quenching |
18. Leak frame load-bearing | 4.6T |
