Z Purlin Roll Forming Machine And Cold Roll Forming Machine

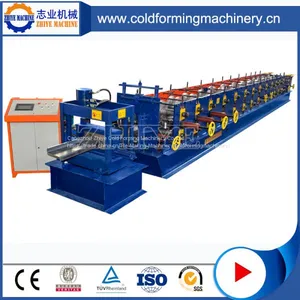

Z Purlin Roll Forming Machine And Cold Roll Forming Machine thumbnail-1
Z Purlin Roll Forming Machine And Cold Roll Forming Machine thumbnail-2
Z Purlin Roll Forming Machine And Cold Roll Forming Machine thumbnail-3
Z Purlin Roll Forming Machine And Cold Roll Forming Machine thumbnail-4
Z Purlin Roll Forming Machine And Cold Roll Forming Machine thumbnail-5
Z Purlin Roll Forming Machine And Cold Roll Forming Machine photo-1
Z Purlin Roll Forming Machine And Cold Roll Forming Machine photo-2
Z Purlin Roll Forming Machine And Cold Roll Forming Machine photo-3
Z Purlin Roll Forming Machine And Cold Roll Forming Machine photo-4
Z Purlin Roll Forming Machine And Cold Roll Forming Machine photo-5
US$ 19500 - 25600 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ZY
Place of Origin:
China
Model Number:
as client requires
Contact Supplier Request Quote Chat Now
Cangzhou Zhiye Cold Forming Machinery Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
35 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ZY
Place of Origin China
Model Number as client requires
Use Roof
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 2 years
Weight 5tons
Dimension(L*W*H) 800*140*150cm
Production Capacity 70sets/month
Condition New
Voltage 380v
Power(W) 8000
Type Tile Forming Machine
Tile Type Colored Steel

  Working flow:

Decoiler-------feeding and leveling------roll forming------punching-------cutting-------finshed product

Double Layer Forming Machine


Double Layer Roof Sheet Roll Forming Machine


Double Layer Sheet Roll Forming Machine


Double Layer Roll Forming Machine


Slitting Line


Cut-to-length Line


Cut To Length Machine Lines


High Frequency Welding Pipe Mill


High Frequency Straight Seam Welding Pipe Mills


High Frequency Welding Pipe Making Machine


Highway Guardrail Cold Roll Forming Machine


Shelf Racking Profile Cold Roll Forming Machine


Sandwich Panel Roll Forming Machine


Eps Sandwich Panel Roll Forming Machine


Sandwich Panel Wall Roof Roll Forming Machine


Light Steel Frame Roll Forming Machine


Light Steel Frame Cold Roll Forming Machine


Roll Forming Machine


Downpipe Rain Gutter Roll Forming Machine


Gutter Roll Forming Machine


Round Gutter Roll Forming Machine


Square Gutter Roll Forming Machine


Roller Shutter Door Rolling Forming Machine


Rolling Shutter Forming Machine


Used Door Frame Rolling Forming Machine


Roller Shutter Slat Rolling Forming Machine


Floor Decking Panel Rolling Forming Machine


Decking Floor Panel Roll Forming Machine


Roller Door Panel Rolling Forming Machine


U Purlin Roller Forming Equipment


Z Purlin Roller Forming Equipment


C Purlin Roller Forming Equipment


C/u/z Purlin Roller Former Machine


Steel Purlin Roller Forming Machine


Ridge Cap Production Line


Ridge Cap Roll Forming Line


Roof Ridge Cap Production Line


Roofing Tile Machine



Glazed Roofing Tile Roll Forming Line


Roofing Tile Roll Forming Machine


Glazed Roof Tile Roll Forming Machine


Glazed Roof Panel Forming Machine


Roof Panel Roll Forming Machine


Trapezoidal Roof Panel Roll Forming Machine


Roof Roll Forming Machine



Component

Technical description
No. Name Qty
1. De-coiler 1 Set
2. Feeding and Guiding Device 1 Set
3. Roll Forming Machine 1 Set
4. Punching device 1Set
5. Hydraulic Cutting Device 1 Set
6. PLC Control Box 1 Set
7. Output table 1 Set


Techical description:
1)Decoiler
Decoiler Type: Manual decoiler
Weight capacity of decoiler: 5.0T
Inner diameter: 350-550mm
Outer diameter: 1200mm

2)Feeding and Leveling Device
It used for making the material flat before feeding into the roll forming machine.
Roller: 7rollers, 4up, 5down

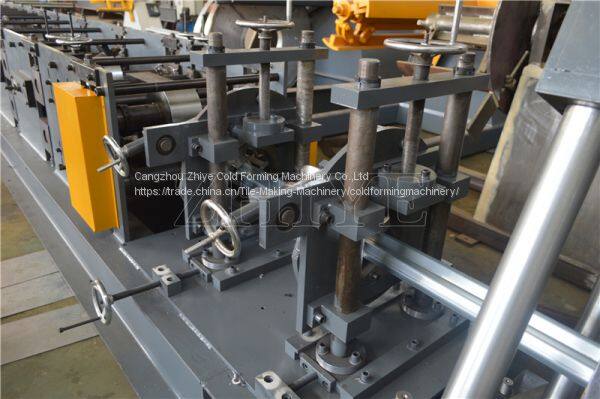

3)Rolling Forming System
It can change C Z shape automaticly and different size you just input data in PLC.
Main motor power: 11KW
Speed of forming: 8-12m/min
Material of roller: 45# steel polished and coated with chrome HRC55-60°
Roller: 15 groups rollers
Material of main shaft: High grade No. 45 steel after treatment
Diameter of main shaft: ø 80mm
Driven: 1''chain

4) Hydraulic Punching & Cutting
Punching Type: Hydraulic Punching
Punching material: Cr12 steel after treatment
Punching die: Cr12 steel after treament
Cutting material: Cr12 steel after treatment
Hydraulic motor power: 5.5KW

5)Control system
Type: PLC Frequency Control System with touch screen
PLC Brand: Japan Panasonic
Encoder Brand: Omron
Length Error: ± 2mm
