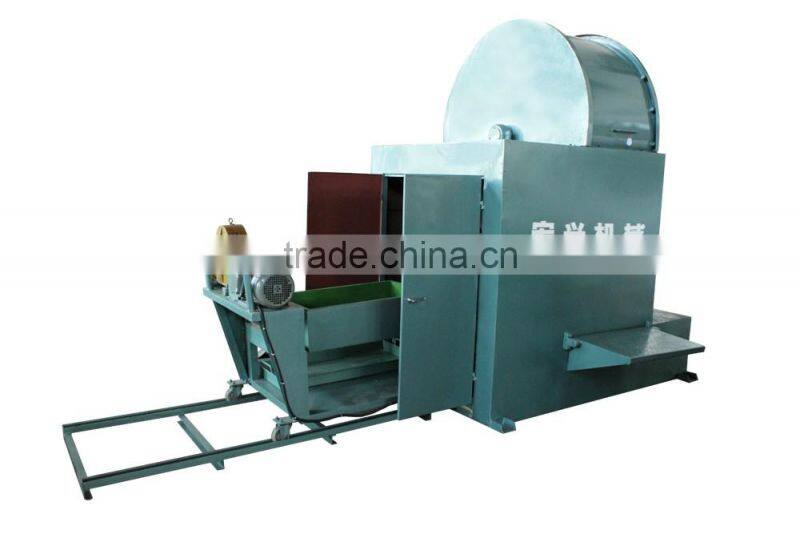

Automatic weighing drum sieving machine for coke, real-time weighing cylinder sieve
The automatic weighing drum sieving machine HXYTS-1 is a patented product, with intellectual property. It is applicable for the sieving of coke, iron ore, pellets and other substances and integrates functions including automatic feeding, automatic sieving, real-time weighing, and automatic computing, fully satisfying the national standard GB/T2005.
The device carries a de-dusting interface, which makes the whole test process free of flying dust. Moreover, it is featured with adjustable inclination angle, free of feed blocking, easy utilization, and stable operation, bringing great convenience to the operators.
Equipment model | HXYTS-1 |

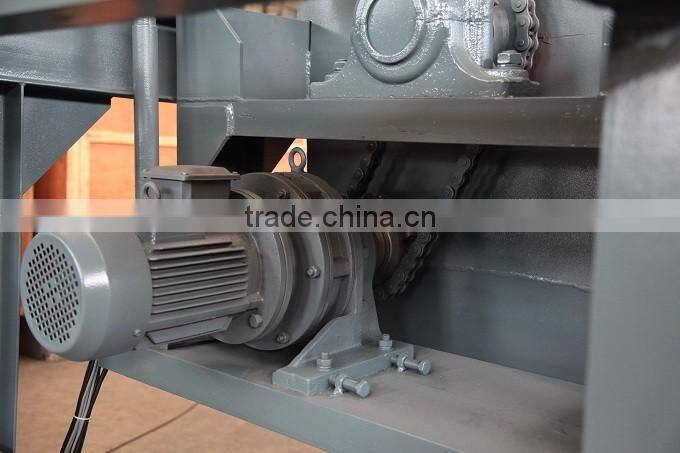

| Motor power | 4kw |
| Swing frequency | 20r/minute |
| Adjustable swing angle | 0°-6° |
| Diameter of cylindrical sieve | ∅700mm |
| Cylinder segment | 5 |
| Computer brand | Lenovo |
| Printer brand | Canon |
OEM& ODM Accept!

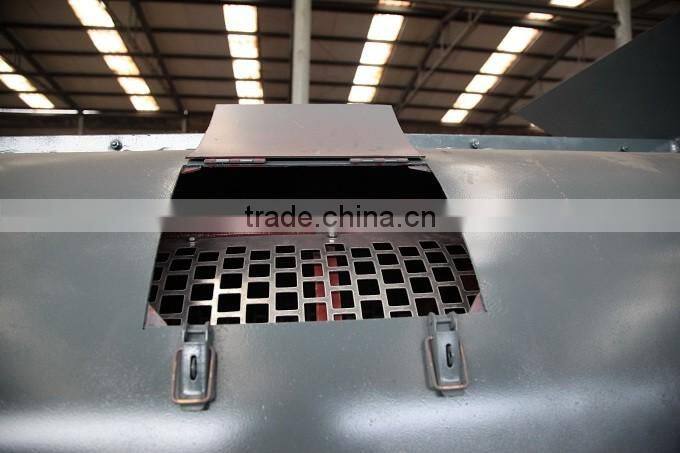

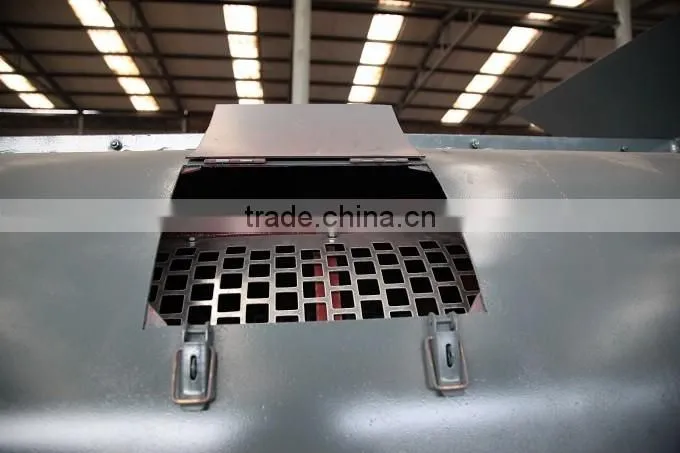

The size of the cylindrical sieve sieve, sieve size can be customized, to screen the various size of coke, ore type.

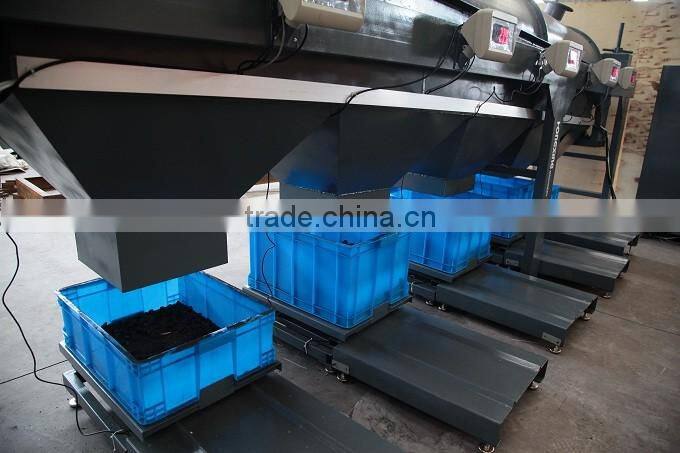

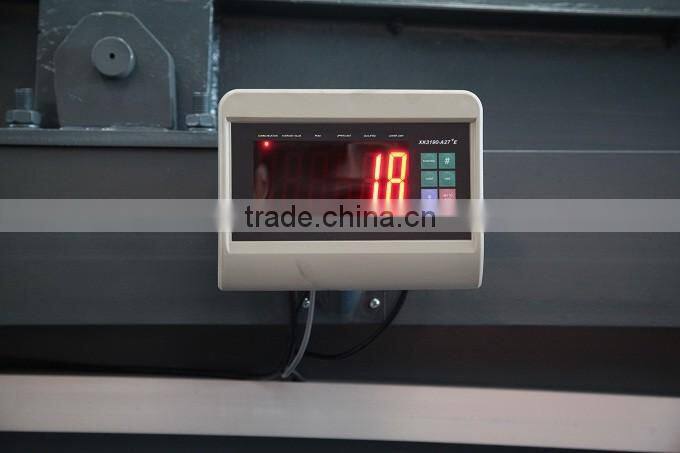

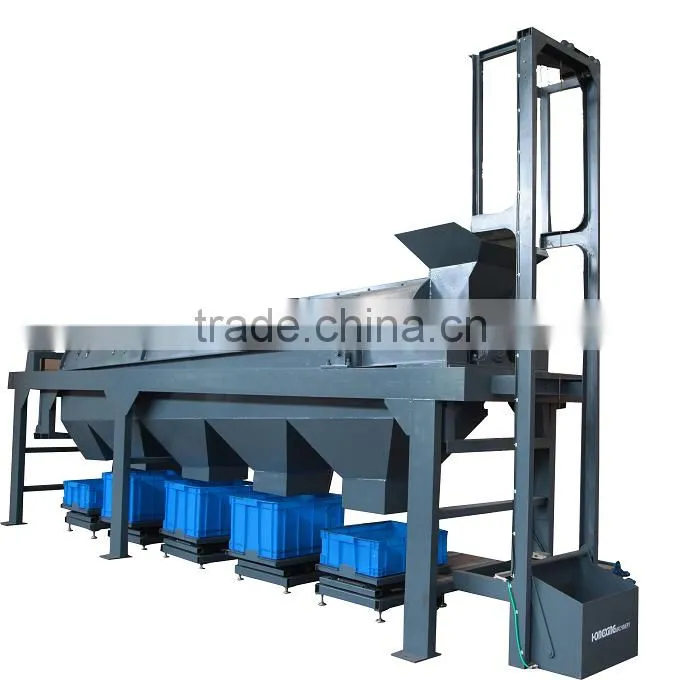

The feeds roll and sieve in the inclined drum sieve and branch out by size fraction (small to big) and finally drop into the container at the bottom. Five electronic scales, of different ranges, then start weighing the particles at real time. The independently developed PC software collects quality data of different fraction sizes. Later after data collecting, it computes the percentage, the coke proportion of different fraction sizes; the 50KG drum sample ration, and the 15KG ingredient thermal reaction ration, etc, automatically according to related national standard. In this way, the human factors brought by manual matching are avoided, making the test more correct and fair. In addition, it gains the quality of sieved different fraction sizes after drumming, calculates the losses, M25, and M10 indexes automatically, realizing functions including the test control, saving of test data, printing of test report and multi-condition multi-user combined inquiry, etc.
Scan to see the video of the product
According to ISO 3271:2007 <iron ores for blast furnace and direct reduction feedstocks-Determination of the tumble and abrasion indices>
Related Products
| | |
Our Catalogue
| coke, coal testing | iron ores testing | silicon steel sheets testing | lime testing |
| revolving drum | sieve | sampling and sample preparation | crushing equipment |
| drying equipment | high way material testing | accessories |
If you have any interest in them, please contact us.
click here go to homepage
We have got ISO certificate for our main product to guarantee equipments quality, and we have a total of 34 national patents, including 5 invention patents, 28 utility model patents, 1 design patents
1.Shangyu Hongxing machinery equipment manufacturing Co.,Ltd,with more than 20 years history, we are one of the leading professional manufacturer of coal, coke, iron ore, steel testing equipment in China. We have got ISO certificate for our main product to guarantee equipments quality.
2.Our main products includes: iron ore testing equipment, coke testing equipment, steel testing equipment, drying equipment, crushing equipment , sampling and preparing equipment etc.
3.We have our own r&d team, according to the latest standards, through our own development software, realize the automation of equipment and computer control, to improve test efficiency and reduce human error.
4.Our advantages are providing professional testing process solution, complete set equipments and after-sale service for lab testing.
5.We are the iron ore and direct reduced iron standardization technical committee member units in China. Also, the national coal standardization technology committee member units in China.
6.main market is in Africa, southeast Asia, Asia, Middle East, etc.
We sincerely provide below services:
-Lab project processing consulting
-Do testing for coke, iron ore, steel processing in laboratory
-OEM is acceptable, Products can be customized according to customer requirements
-Help you to solve the problems during the equipment operation.
-Spare parts provided
-Dispatching engineer overseas guidance for equipments installation, testing equipments, training workers.
