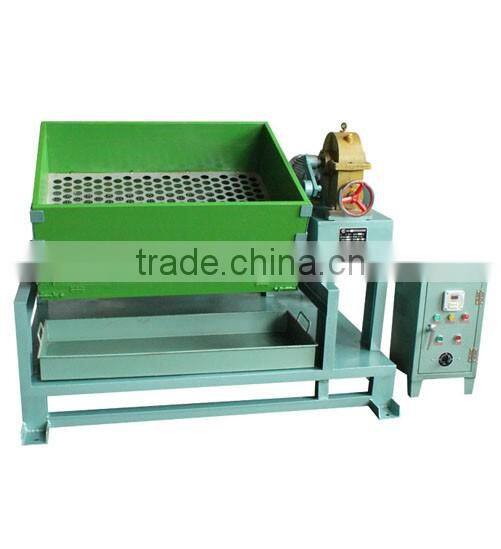

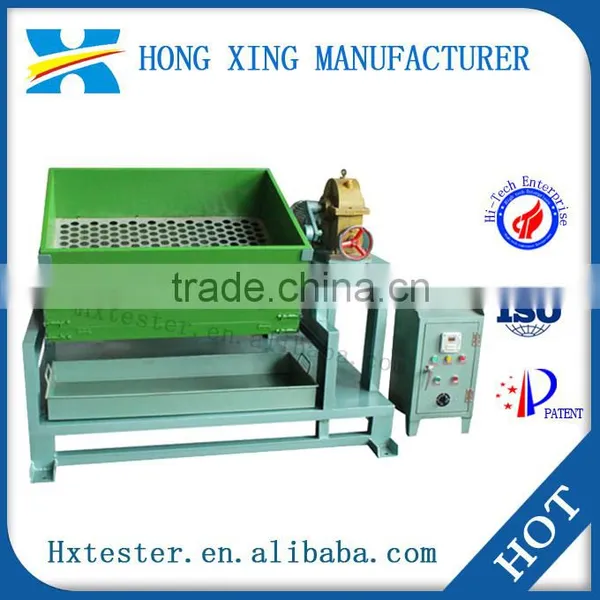

Vibrating screen machine for ore, high frequency vibrating screen price
Equipment model | HXAK-98 |
| Motor Power | 2.2kw |
| Swing Frequency | Repeat 36 times/minute |
| Swinging Angle | 40°~45° |
| Time for One Screening | 40S |
| Screen | The screen is constituted by upper screen piece with the sieve size of φ40mm (or φ25mm) and the lower sieve piece with sieve size of φ10mm. The frame of the screen is made of wood and the technical requirements of such sieve piece are in consistent with the regulations in GB2006. The side wooden frames of each layer of sieve piece could be made into openable screen doors. Such doors shall be closed in time during the screening process. |
| Overall Dimension | 1540×1150×1200 mm |
| Total Weight | 400kg |
HXAK-98 Mechanical Screen for Coke Drum is applicable for the measurement of the mechanical strength of metallurgical coke and foundry coke. The equipment could replace the manual screen, reduce the intensity of labor, eliminate the necessity of hole-drilling operation, and improve the accuracy and comparability of the measurement. The equipment has the features like integrated structure, simple operation, use-friendly and reliable operation. With the application of the electrical control of time relay, the equipment could accurately achieve timing screening for the specimen in the screen, which could eliminate the personal errors of manual screen.
Similar Products
| | |
Our Catalogue
| Revolving drum | Pelletizer | Lime testing equipment | Drying Equipment |
| Crushing Equipment | Sampling and Sample Preparation Equipment | Sieving Equipment | Iron Ores Performance Testing Equipments |
| Coke, Coal, Carbon Testing Equipment | Steel Product Testing Equipment | Accessories |
If you have any interest in them, please contact us.
click here go to homepage
We have got ISO certificate for our main product to guarantee equipments quality, and we have a total of 34 national patents, including 5 invention patents, 28 utility model patents, 1 design patents
1.Shangyu Hongxing machinery equipment manufacturing Co.,Ltd,with more than 20 years history, we are one of the leading professional manufacturer of coal, coke, iron ore, steel testing equipment in China. We have got ISO certificate for our main product to guarantee equipments quality.
2.Our main products includes: iron ore testing equipment, coke testing equipment, steel testing equipment, drying equipment, crushing equipment , sampling and preparing equipment etc.
3.We have our own r&d team, according to the latest standards, through our own development software, realize the automation of equipment and computer control, to improve test efficiency and reduce human error.
4.Our advantages are providing professional testing process solution, complete set equipments and after-sale service for lab testing.
5.We are the iron ore and direct reduced iron standardization technical committee member units in China. Also, the national coal standardization technology committee member units in China.
6.main market is in Africa, southeast Asia, Asia, Middle East, etc.
We sincerely provide below services:
-Lab project processing consulting
-Do testing for coke, iron ore, steel processing in laboratory
-OEM is acceptable, Products can be customized according to customer requirements
-Help you to solve the problems during the equipment operation.
-Spare parts provided
-Dispatching engineer overseas guidance for equipments installation, testing equipments, training workers.
