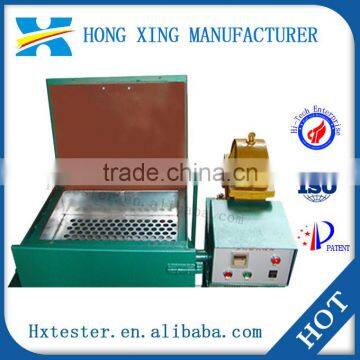

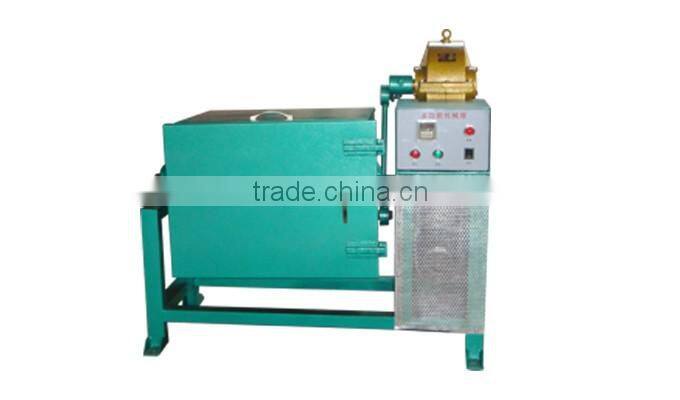

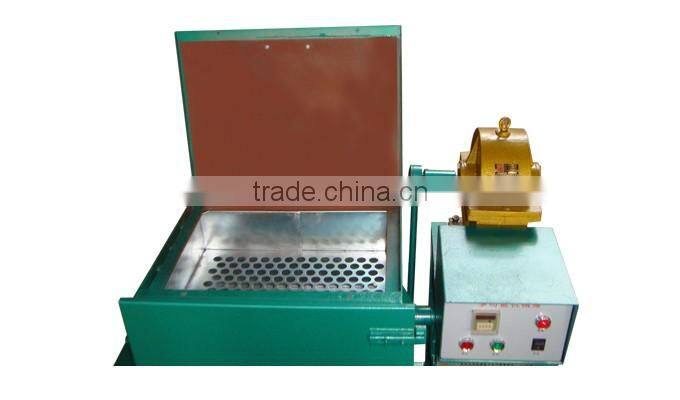

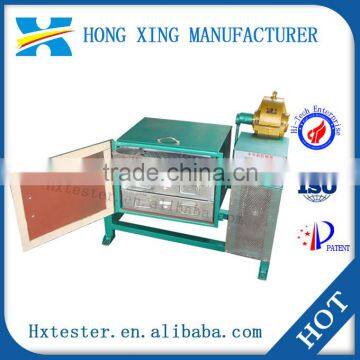

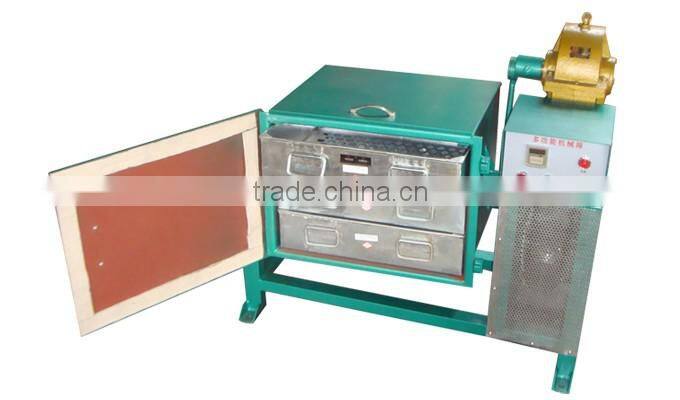

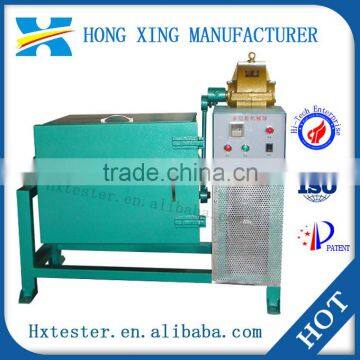

Linear vibrating screen separator for coke, mechanical china vibrating screen
- 500 Set / Sets per Month
- Ningbo or Shanghai
- T/T
You May Like
-
Mechanical sieve shaker for sinter, before ISO tumbler automatic sieve shaker
-
Double deck vibrating screen silicon-manganese alloy, 2 layers vibrating screen machine
-
Top-Knocking rotary screener, diameter 200mm rotary vibrating screen
-
Mechanical vibration screener, horizontal reciprocating vibrating screen machine
-
Screen separator machine for Ore powder, 325 mesh mineral separator
-
China vibrating screen machine guimeng alloys, 2 layers double deck vibrating screen
Product Details
| Condition | New | Type | Linear | |
| Application | Other, Ore, Mechanical Screen for ore | Place of Origin | Zhejiang, China | |
| Brand Name | HONGXING | Model Number | HXAK-2010 | |
| Voltage | 220V | Power(W) | 0.55kw | |
| Dimension(L*W*H) | 970mm*520mm*865mm | Certification | ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Linear vibrating screen separator for coke, mechanical china vibrating screen
Advantages:
compact structure, simple operation, easy to use, reliable operation.
It is equipped with time relay and make sample to get accurate timing within sieve screening, can eliminate human error hand screen operation.
Equipment model | HXAK-2010 |
| Motor power | 0.55kw |
| Swing frequency | Swing 28 times/minute |
| Swing angle | 76° |
| Screen surface obliquity | 10° |
| Time for one screening | 0-99(second,minute,hour) can be set according to requirement |
| Coke screen | Upper screen piece with the sieve size of diameter 25mm and the lower sieve piece with sieve size of diameter 23mm. |
| Sintered pellets screen | upper screen piece with the sieve size of diameter12.5mm and the lower sieve piece with sieve size of diameter 10mm. |
| Screen size | 970mm*520mm*865mm |
HXAK-2010 Multi-function coke mechanical screen sintering sieve
It is applicable to the metallurgical coke, foundry coke fraction of screening and determination of mechanical strength.
