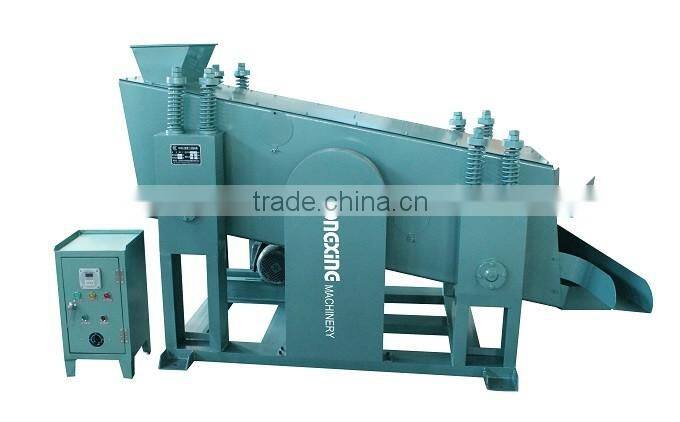

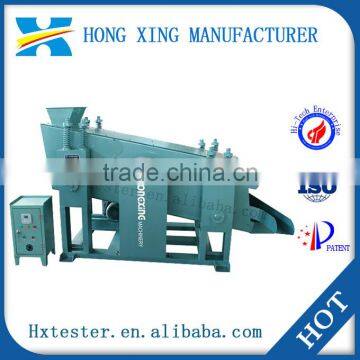

Mechanical sieve shaker for sinter, before ISO tumbler automatic sieve shaker
Primary screen before ISO tumbler is a vibrating screen according to GB/T24531-2009 requirements of the development and production, it can replace manual operation, greatly reduce the labor intensity, and improve work efficiency.
Sieve control is to use automatic timing controller to control, to set the time, the screen will automatically stop.
Equipment model | HXSG-1 |
| Screen net specification | 1600×500mm |
| Screen layer number | 2 |
| Screen hole specification | 40×40mm, 25×25mm |
| Screen surface obliquity | 10° |
| Amplitude | 3mm |
| Power of the electrical machinery | 2.2KW |
| Power supply | 380V |
| Weight | 650kg |
| Control | mechanical screen controlled by automatic timing controller |
Equipment is composed of the base, bracket, screen body, screen film, spring bracket, spring, feed mouth, electric machinery and transmission mechanism. The whole device can remove dust with the role of environmental protection, feed mouth and discharge mouth have a dust exhaust hood.
Two layers of screen film are contained in the screen body, tilting at a certain angle, vibrating with certain frequency and amplitude, make the sinter move downward along three inclined planes under the role of vibration, in order to achieve the goal of sieving. Primary screen before ISO tumbler has the same structure with that of Secondery screen before ISO tumbler, they are different only on screen hole specification, obliquity of screen plane, amplitude and amplitude etc.
Similar Products
| | |
Our Catalogue
| Revolving drum | Pelletizer | Lime testing equipment | Drying Equipment |
| Crushing Equipment | Sampling and Sample Preparation Equipment | Sieving Equipment | Iron Ores Performance Testing Equipments |
| Coke, Coal, Carbon Testing Equipment | Steel Product Testing Equipment | Accessories |
If you have any interest in them, please contact us.
click here go to homepage
We have got ISO certificate for our main product to guarantee equipments quality, and we have a total of 34 national patents, including 5 invention patents, 28 utility model patents, 1 design patents
1.Shangyu Hongxing machinery equipment manufacturing Co.,Ltd,with more than 20 years history, we are one of the leading professional manufacturer of coal, coke, iron ore, steel testing equipment in China. We have got ISO certificate for our main product to guarantee equipments quality.
2.Our main products includes: iron ore testing equipment, coke testing equipment, steel testing equipment, drying equipment, crushing equipment , sampling and preparing equipment etc.
3.We have our own r&d team, according to the latest standards, through our own development software, realize the automation of equipment and computer control, to improve test efficiency and reduce human error.
4.Our advantages are providing professional testing process solution, complete set equipments and after-sale service for lab testing.
5.We are the iron ore and direct reduced iron standardization technical committee member units in China. Also, the national coal standardization technology committee member units in China.
6.main market is in Africa, southeast Asia, Asia, Middle East, etc.
We sincerely provide below services:
-Lab project processing consulting
-Do testing for coke, iron ore, steel processing in laboratory
-OEM is acceptable, Products can be customized according to customer requirements
-Help you to solve the problems during the equipment operation.
-Spare parts provided
-Dispatching engineer overseas guidance for equipments installation, testing equipments, training workers.
