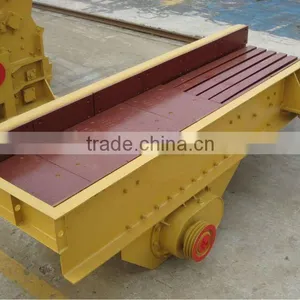

ZSW Series Vibrating Feeder is mainly used for coarse crushing, continuously and evenly feeding before the crusher, while screening fines, to increase crushing capacity. Especially in the feeding of heavy crushing construction equipment, it has been used greatly! Features and Advantages: linear trajectory, stable vibration, special rack design, adjustable to prevent trash material clogging rack space.
During processing, ZSW vibrating feeder can send various materials into the crushers continuously and evenly, at the same time, it can screen fine material to increase the crusher ability. The machine adopts double eccentric shaft vibration exciter, and the vibrating feeder can support impact force. It is widely used in metallurgy, coal ore, building material, chemical industry, etc.
Features
2. Extra heavy-duty construction.
3. Exclusive vibrator technology.
4. Good performance-conditioning, no flushing phenomenon of materials.
5. Easy maintenance and low operating cost .
6. Easy to change and control currency through adjusting excitation force
Technology parameter
| Models | Max. feed size(mm) | Capacity(t/h) | Motor power(kw) | Trought size(mm) |
| ZSW-380×95 | 500 | 96-160 | 11 | 3800×950 |
| ZSW-490×110 | 580 | 120-280 | 15 | 4900×1100 |
| ZSW-590×110 | 600 | 200-350 | 22 | 5900×1100 |
| ZSW-600×130 | 750 | 400-560 | 22 | 6000×1300 |
