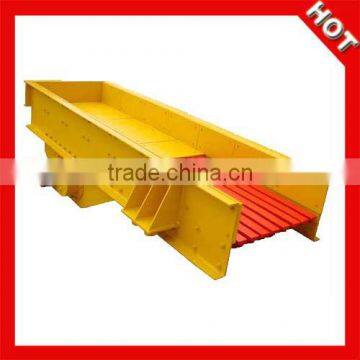

2013 GZD/ZSW vibrating grizzly feeder for sale

Specifications

vibrating grizzly feeder for sale:
1. Smooth vibrating;
2. Adjustable fences distance;
3. Evenly feeding;

GZD/ZSW vibrating grizzly feeder for sale

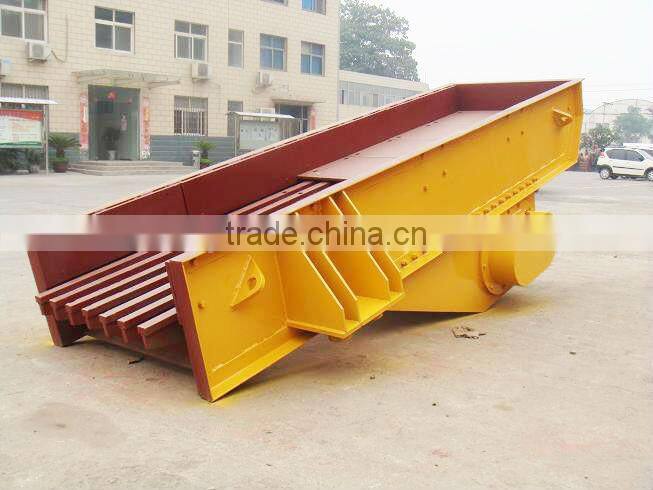

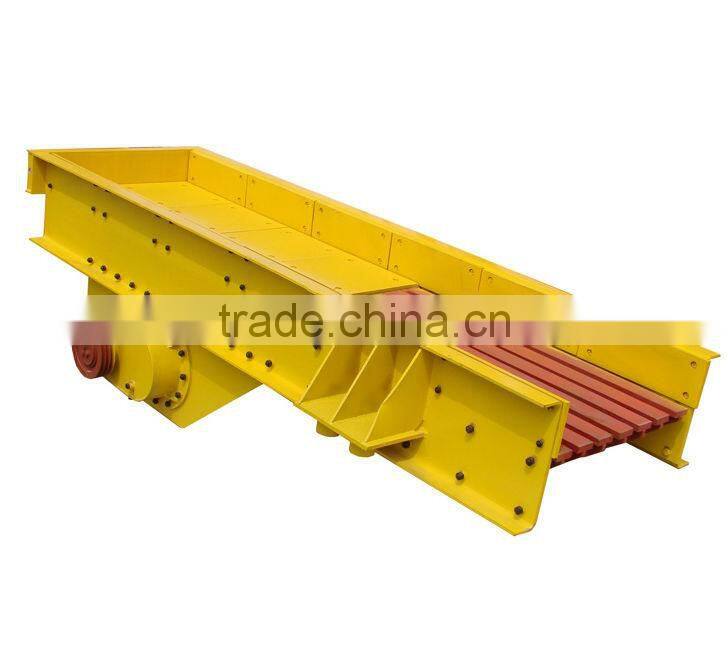

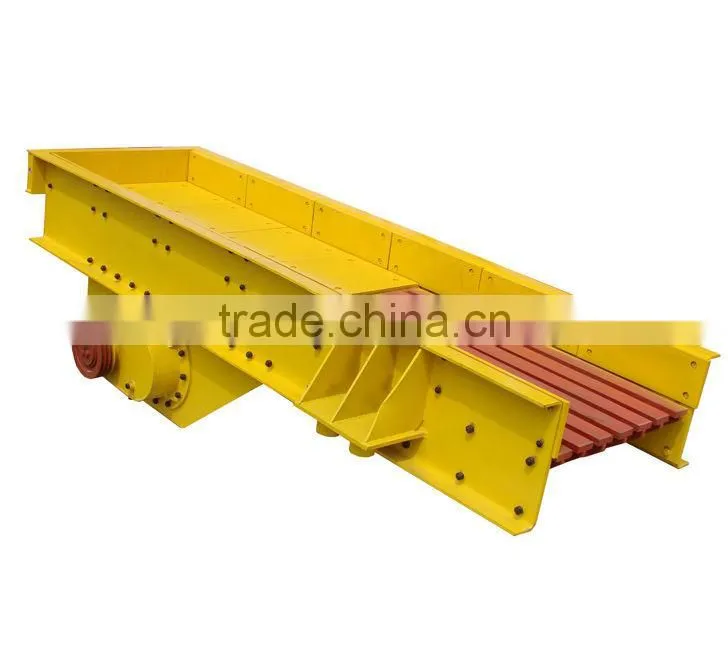

Introduction of  vibrating grizzly feeder for sale

Vibrating Feeder, also called stone feeder, grantie feeder adopts the vibrating motor to produce vibration force. It is used to feed materials into primary crusher evenly, and meanwhile because of the grit-shaped screen, it can screen away soil contained in the raw material, and increase the capacity of primary crushing. It is suitable to feed material into primary crusher in hydroelectric field, building material and mining industry.



Features and Benefits of vibrating grizzly feeder for sale

Smooth vibrating

The special fence can prevent the block of raw material

The distance between fences is adjustable



After-Sale Service of  vibrating grizzly feeder for sale

Erection and Commissioning

Operator Training

Spare Parts Supply



Working Principle of vibrating grizzly feeder for sale
Vibrating feeder, stone feeder, consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached.



Main Specifications of   vibrating grizzly feeder for sale

Model	Max Feed  Size (mm)	Capacity (t/h)	Motor Power (kw)	Weight (kg)	Dimension (L*W*H) (mm)
GZD-850x3000	400	120	3.7x2	3607	3110x1800x1600
GZD-1000x3600	500	150	5.5x2	3895	3850x1950x1630
GZD-1100x4200	580	240	5.5x2	4170	4400x2050x1660
GZD-1100x4900	580	280	7.5x2	4520	5200x2050x1700
GZD-1300x4900	650	450	11x2	5200	5200x2350x1750
ZSW-380x95	500	96-160	11	4082	3920x1640x1320
ZSW-490x110	630	120-280	15	5352	4980x1830x1320
ZSW-600x130	750	400-560	22	7800	6082x2580x2083

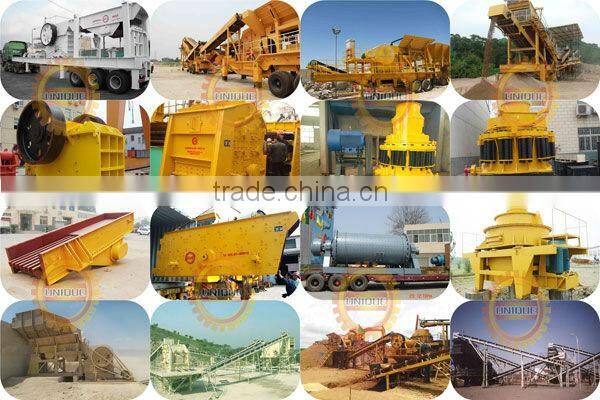

OUR PRODUCT SCOPE:
1. Mobile Crusher: portable jaw crusher, portable impact crusher, portable cone crusher, portable construction waste crushing plant
2. Stone Crusher: jaw crusher, impact crusher, Symons cone crusher, spring cone crusher, sand making machine, hammer crusher, ball mill etc.
3. Auxiliary equipment: vibrating feeder, vibrating screen, belt conveyor, crawler rock drill

More information about our vibrating grizzly feeder for sale, please feel free to contact with us by phone or e-mail at any time, we will try our best to cooperate with you!
