Product Details
Condition: | New | Type: | Other, VIBRATING FEEDER | Application: | Mining |
Motor Type: | AC Motor | Power(W): | 11kw | Capacity(t/h): | 150tph |
Place of Origin: | Henan, China | Brand Name: | UNIQUE | Model Number: | GZD |
Dimension(L*W*H): | 3850x1950x1630mm | Weight: | 3895kg | Certification: | ISO CE |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

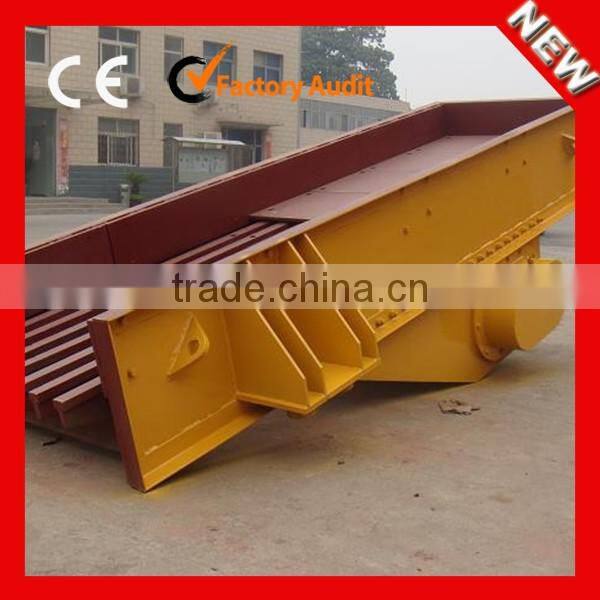

Zhengzhou Unique Vibrating Feeder with New Design for Sale
Introduction of Vibrating Feeder:
Vibrating Feeder adopts the vibrating motor to produce vibration force. It is used to feed materials into primary crusher evenly, and meanwhile because of the grit-shaped screen, it can screen away soil contained in the raw material, and increase the capacity of primary crushing. It is suitable to feed material into primary crusher in hydroelectric field, building material and mining industry.
Features and Benefits of our Vibrating Feeder:
Smooth vibrating
The special fence can prevent the block of raw material
The distance between fences is adjustable
Main Specifications of our Vibrating Feeder:
Model
| Max Feed Size (mm)
| Capacity (t/h)
| Motor Power (kw)
| Weight (kg)
| Dimension(L*W*H) (mm)
|
GZD-850x3000 | 400 | 120 | 3.7x2 | 3607 | 3110x1800x1600 |
GZD-1000x3600 | 500 | 150 | 5.5x2 | 3895 | 3850x1950x1630 |
GZD-1100x4200 | 580 | 240 | 5.5x2 | 4170 | 4400x2050x1660 |
GZD-1100x4900 | 580 | 280 | 7.5x2 | 4520 | 5200x2050x1700 |
GZD-1300x4900 | 650 | 450 | 11x2 | 5200 | 5200x2350x1750 |
ZSW-380x95 | 500 | 96-160 | 11 | 4082 | 3920x1640x1320 |
ZSW-490x110 | 630 | 120-280 | 15 | 5352 | 4980x1830x1320 |
ZSW-600x130 | 750 | 400-560 | 22 | 7800 | 6082x2580x2083 |
Vibrating Feeder is a kind of linear direction feeding equipment. It can send shaped and granule materials into crusher evenly, timely and continuously as well as screen the materials roughly. The vibrating feeder is widely used in crushing and sieving production line such as metallurgy, building material, chemical industry, coal, mining and grinding industry.
Features
1.Smoothly vibrating and long service life
2.Vibrating force adjustable, easy to operation.
3. Low noise and power consumption
4. Simple structure, easy to maintenance.
Working Principle
Vibrating feeder is made of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator consists two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. By drive of the motor, the two eccentric shafts start rotating to generate a linear huge power which forces the feeder to vibrate back and forth. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller material will fall down, avoiding the further crushing, so screening purpose is reached.
Zhengzhou Unique Industrial Equipment Co., Ltd. dedicated to producing Mining machinery for many years, is not only a professional manufacturer of mining equipment in the R&D manufacture, but also a leader manufacturer of mining equipment and distribution of Mining Machinery in China. Our brand is recognized worldwide for our high quality, reliability and our customer service. Company is opening, Whenever people in China and abroad are able to visit.
Case installation site
Our cone crusher are installated in Philippines.
Customer visit
Our Advantages---
A.We have over 20 years experiences of manufacturing crushers, crusher line and other mining equipments.
B.Our new wearable material ensures the working life of plate hammer, impact plate and liner board much longer.
C.Our even plate structure makes final material smaller and cubic, no inner crack.
