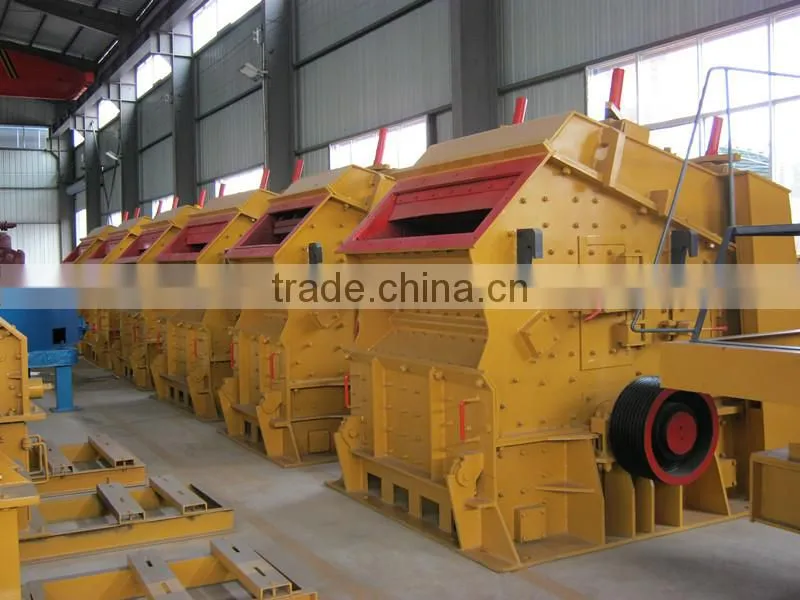

China Good Quality Aggregate Making Machine PF-1007

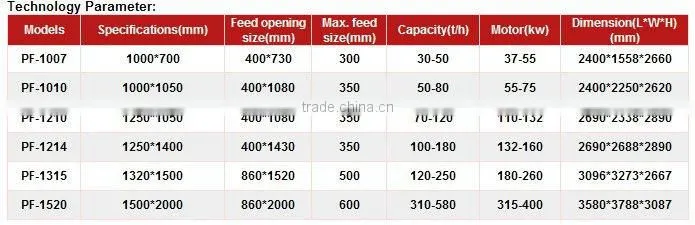

Specifications

Aggregate Making Machine;
Max. feed size:300mm;
long life blow bar & impact plate;
good shape aggregate;
ISO

small impact crusher loading

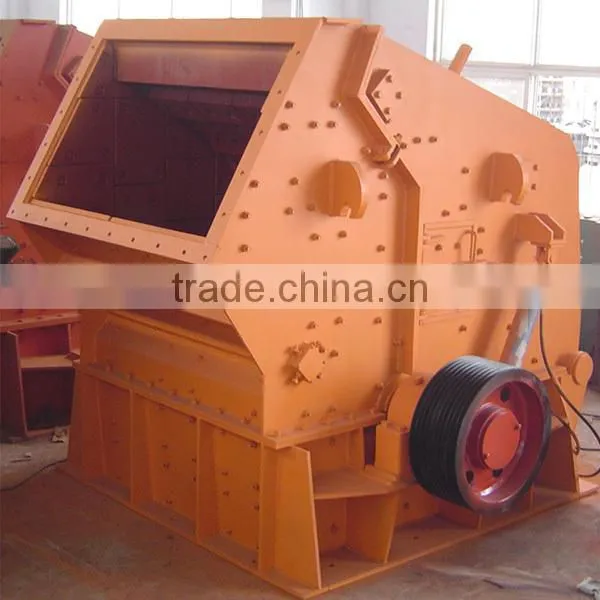

Impact Crusher is a new type high-efficiency crushing equipment, its features are: small size, simple structure, large crushing ratio, low energy consumption, large capacity, uniform particle size, and playing the role of selective crushing. The biggest drawback of the impact crusher is its blow bars and impact plates are easily worn and torn, especially while crushing hard ore, which require frequent replacement. Due to the emergence of some wear-resistant materials in recent years, it has been widely used in some metal concentrator plant.



Impact crusher can process material with side length of 100-500 mm, the compressive strength of material can be up to 350 MPa, and broken material is of cubic particles. Usually, it is used for coarse, medium or fine crushing, breaking of limestone, coal, calcium carbide, quartz, dolomite, iron pyrites, gypsum and chemical raw materials with medium hardness.



Advantages



• Simple structure, small size, light weight, large capacity, low production costs. Large Feed opening, high crushing chamber to adapt to the hardness of materials;
• Ore is broken along the joint plane, so less power consumption, high efficiency;
• Large crushing ratio can be up to 40, so you can simplify the crushing process, you can change three-stage crushing into two or a one, reducing the cost of the concentrator equipment;

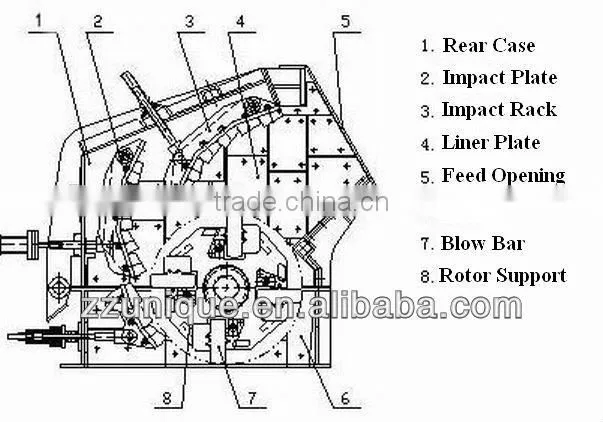

• Gap between impact plate and blow bar can be easily adjusted to effectively control the discharge size with good particle shape;
• high chromium blow bar, impact resistance, abrasion resistance, impact force is big;
• keyless connection, easy maintenance, economical and reliable;
• Full-featured crushing function, high productivity, less mechanical wear, high comprehensive benefits;
• Has a selective crushing effect, and the crushed product is of relatively uniform particle size, the shape of the majority are of the cube stones. Have a wide range of applications for the construction of the bridge construction, high-speed roads, docks, airports
