Specifications

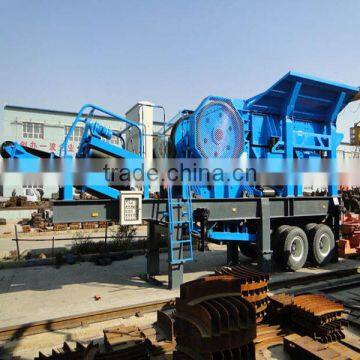

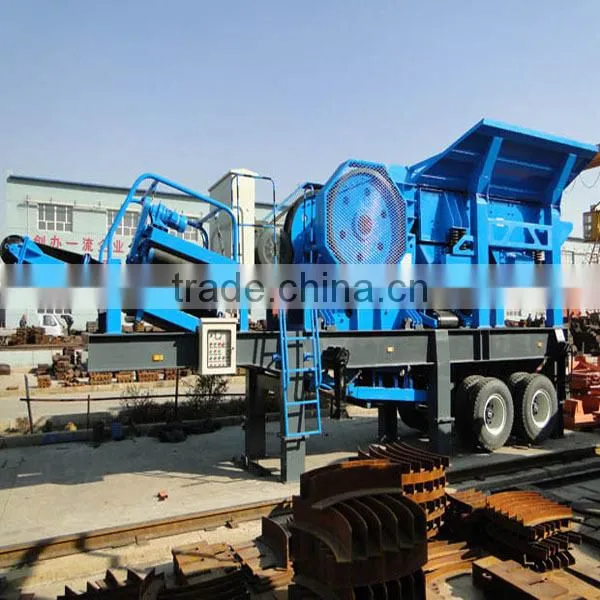

tire mounted mobile crusherall in one mobile crushing plant
convenient hauling
built-in feeder
built-in screen
Mobile crusher plant/portable cruhsher plant/mobile crushing plant is mainly used in metallurgy, chemical industry, building materials, and utilities often need to be relocated material processing operations, especially for the job of highway, railway, hydropower project demaning liquidity stones. User can have a variety of configurations depending on the type, scale, and size of different raw materials.
The mobile crushing plant mainly includes: mobile impact crushing plant, mobile cone crushing plant,mobile jaw crushing plant, mobile VSI crushing plant and mobile screening plant. It also can be divided into track mounted crushing plant and wheel mounted crushing plant in terms of driving mode.
Advantages
1. Good Mobility
2. Integration of the entire units
3. Reduce material handling costs
4. Directly effective job role
5. Combination of flexibility, adaptability
6. Reliable, easy maintenance
Mobile crusher plant has good flexiblility and mobility, and can save a lot of infrastructure and relocation costs; can do crushing of material on site, and can be moved with the mining of raw materials face forward, thereby significantly reducing the cost of transporting materials.
Mobile crushing and screening equipment includes primary crushing plant and secondary crushing and screening plant and belt conveyors, each plant at all levels is an independent working unit and can finish its different responsibilities of its commitment, the belt conveyor is responsible material transmitting and piling up between each crushing plants.
Models
| Model | YDS50 | YDS70 | YDS100 | YDS180 |
| Feeder Model | GZT-0724 | GZT-0932 | GZT-0940 | GZT-1148 |
| Jaw crusher Model | PE-400×600 | PE-500×750 | PE-600×600 | PE-750×1060 |
| Main belt Model | B650×6M | B800×7M | B1000×8M | B1000×11M |
| Max feed size(mm) | 340 | 425 | 500 | 630 |
|
Aadjustable Range of Discharge Opening(mm) |
40-100 | 50-100 | 95-165 | 80-180 |
| Capacity(t/h) | 10-35 | 25-60 | 30-85 | 72-150 |
| Power(kw) | 43 | 57 | 72 | 147 |
|
Transportation Dimension (L×W×H)(mm) |
8600×2520×3770 |
9600×252×3500 |
11097×3759×3500 |
13300×2900×4440 |
| Separators | RCYD | RCYD | RCYD | RCYD |
| Mobile Frame | double-shaft | double-shaft | double-shaft | triaxial |
Structural Features
High performance crusher
Vehicular motors and electrical control cabinet integration
Feeder and vibrating screen integrated with jaw crusher, cone crusher, vertical impact crusher
Vehicular integrated installation of Under-Sieve belt conveyors, vibrating screen, and crusher
Vehicular installation support, convenient and efficient equipment stationing
Steering traction axis, convenient for road transport and in-depth facility
