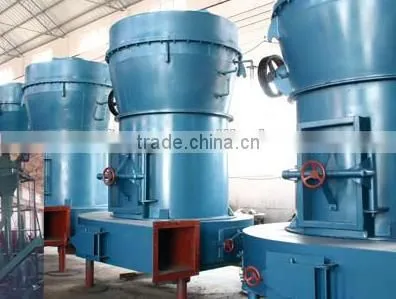

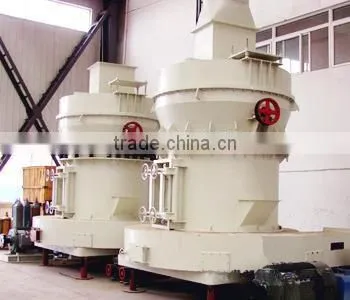

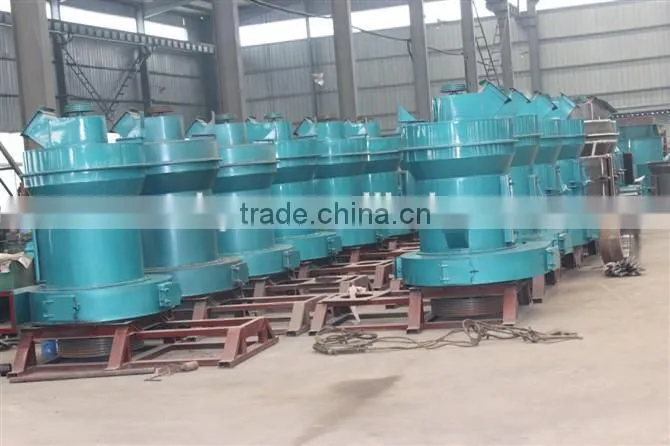

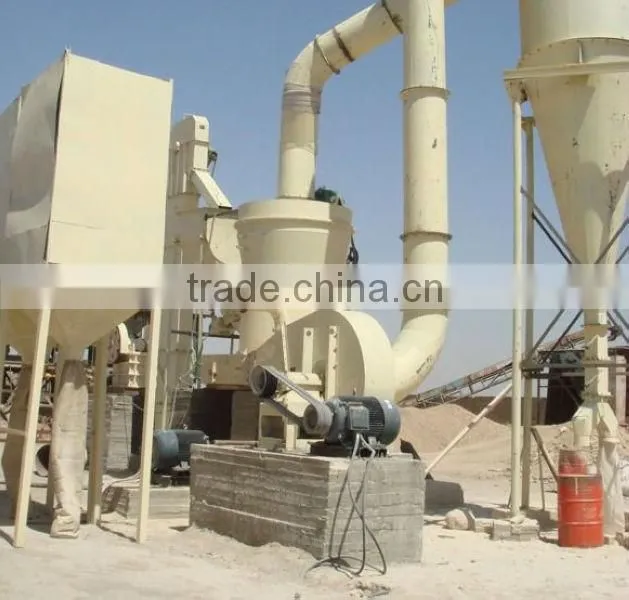

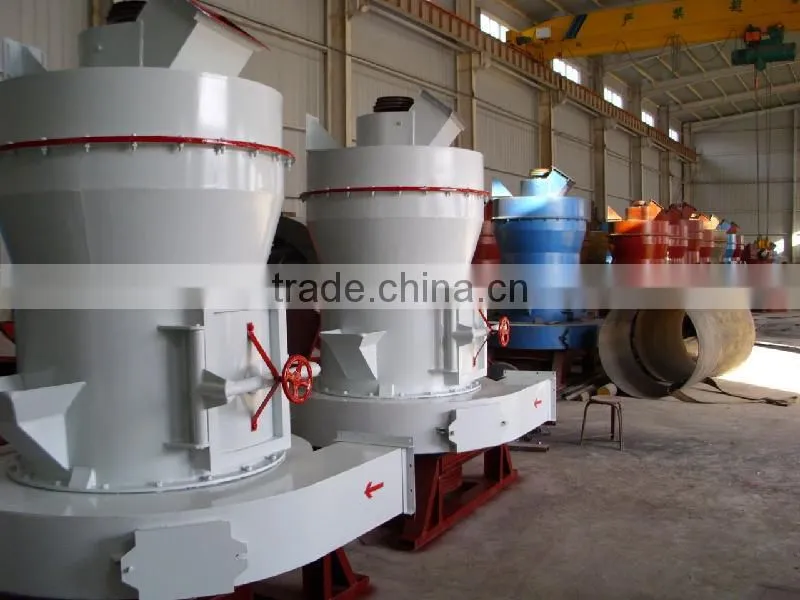

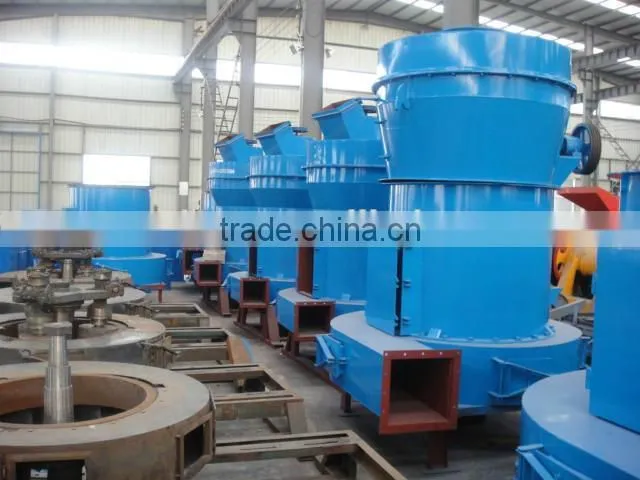

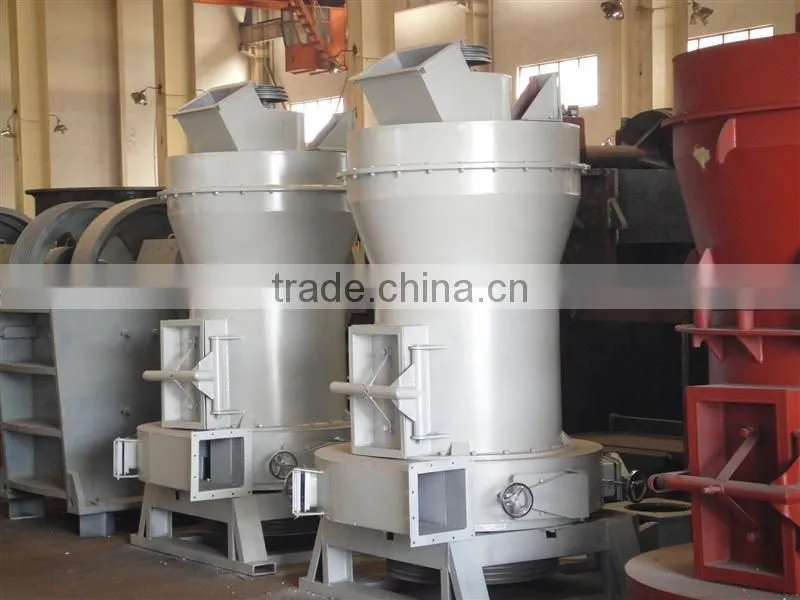

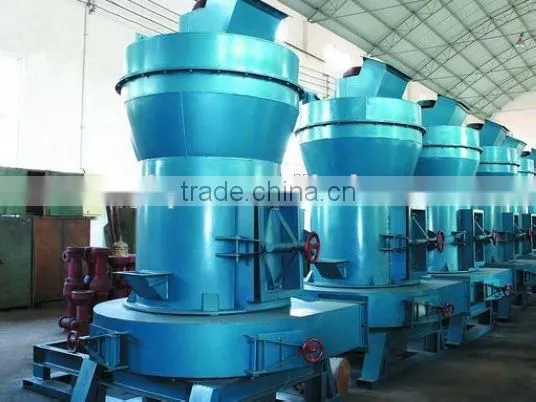

Small Raymond Mill System for Mineral Processing
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Raymond Mill
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Tianjin etc.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Wheel Type Mining Site Sand Washer XS2600US$ 6,500 - 8,000MOQ: 1 Set -
Large Scale Wet Ore/Mineral Grinding MachineUS$ 68,000 - 70,000MOQ: 1 Set
-
Top Quality New Integrated Crawler Borehole Drilling MachineNegotiableMOQ: 1 Set
-
2011-2012 Popular Wet Type Magnetic Separator for Iron Ore ProcessingNegotiableMOQ: 1 Set
-
Coal Mining Large Scale Single Stage Hammer CrusherUS$ 80,000 - 80,500MOQ: 1 Set
Condition
New
Type
Raymond Mill
Motor Type
AC Motor
Power(W)
15kw for main machine
Capacity(t/h)
0.6-1.8
Place of Origin
Henan, China
Brand Name
UNIQUE
Model Number
3R2115
Dimension(L*W*H)
4500x2800x5800mm
Certification
ISO
Warranty
more than one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Mill for Very Fine PowderVertical grinding
wide application for many kinds ore
low maintenance
smooth drive, reliable work
Based on sound quality products and good sales service, Unique company supplies Raymond mill which is suitable for grinding barite, calcite, potash feldspar, talcum, marble, limestone, ceramics, etc.
Raymond mill is a calssic type mill, which can be used to grind non-flammable and non-explosive materials in the fields of building materials, mining, metallurgy and chemical industry with raw material hardness less than 7.3 in Moh’s scale and humidity less than 6%.
Features

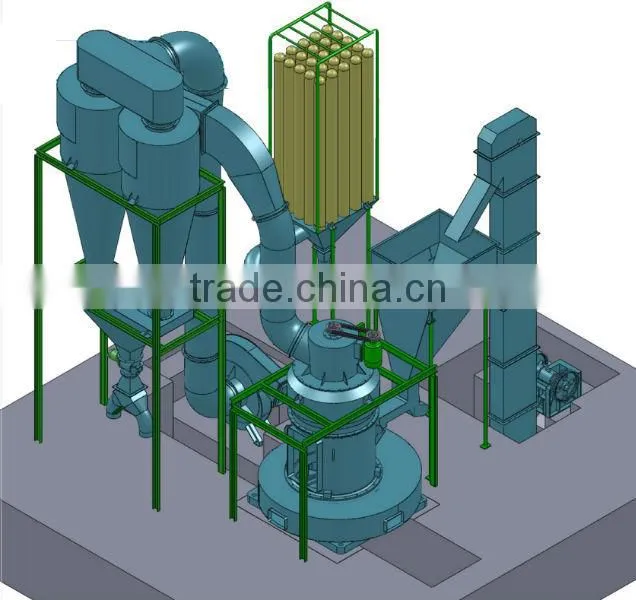

Three-dimensional structure
Land-saving
The screen-passing rate can reach to 99%
The transmission is steady and reliable
The transmission device of mainframe adopts airtight gear case and zonal wheel
Centralized control for the electric system, convenient to operate.
Model with spec
| Model | No. of Roller (Pcs) | Roller Diameter ×Height (mm) | Ring Inn Diameter ×Height (mm) | Max. Feeding Size (mm) | Fineness of finished product (mm) | Mainframe Power (KW) | Overall Dimension (L×W×H) (MM) | ||
| 0.125 | 0.075 | 0.044 | |||||||
| Capacity(t/h) | |||||||||
| 3R2115 | 3 | 210×150 | 630×150 | <15 | 1.2-1.8 | 0.6-1.2 | 0.6-1.0 | 15 | 4500×2800×5800 |
| 3R2615 | 3 | 260×150 | 780×150 | 15-20 | 1.8-2.5 | 1.2-1.8 | 0.8-1.2 | 18.5 | 5650×3305×5950 |
| 3R2715 | 3 | 270×150 | 830×150 | 15-20 | 2.3-2.8 | 1.8-2.8 | 0.9-1.7 | 22 | 8000×3500×4900 |
| 3R3016 | 3 | 300×160 | 880×160 | 15-20 | 2.6-4 | 1.9-2.6 | 1.0-1.9 | 30 | 6500×4100×5200 |
| 4R3216 | 4 | 320×160 | 970×160 | 20-25 | 3.2-4.5 | 2.4-3.1 | 1.8-2.5 | 37 | 9900×5800×10580 |
