Concrete Batching Plant Parts LSY Small Screw Conveyor

Specifications

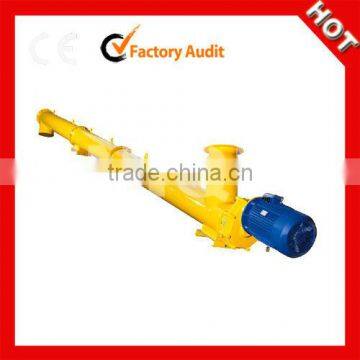

LSY Small Screw Conveyor
1.Compact form,small cross-sectional area
2.Good leak tightness
3.Hight transportation efficiency

LSY Small Screw Conveyor



Descriptions of our  Small Screw Conveyor :

LSY type screw conveyor is special equipment that is in sealed circular section shell and continuous transport material via rotary palladium. It is used to transport a variety of meal, granular material, small block material, such as cement, fly ash and ore fines, etc. LSY screw conveyor has some features of compact form, small cross-sectional area, light-weight, good leak tightness, high transportation efficiency, flexible process collocation and so on. It adopts universal ball joint feed inlet, in order to be propitious to install, product and damp proof. It specially apply for transporting power material from concrete bin to mixer in concrete mixing plant.





Main Technical Parameters of our  Small Screw Conveyor :





Model	Length	Speed	Diameter	Angle	Capacity	Model	Power
LSY 106-2.5	2.5m	112 r/min	φ180mm	≤20°	25 t/h	Y100L2-4	3 kw
LSY 160-4.5	4.5m	112 r/min	φ180mm	≤20°	25 t/h	Y112M-4	4 kw
LSY 200-6	6m	100 r/min	φ219mm	≤45°	35 t/h	Y132S-4	5.5 kw
LSY 200-8 (9)	8 (9)m	100 r/min	φ219mm	≤45°	35 t/h	Y132M-4	7.5 kw
LSY 250-8 (9)	8 (9)m	90 r/min	φ273mm	≤45°	45 t/h	Y160L-4	15 kw
LSY 300-9 (12.15)	9 (12.15) m	80 r/min	φ325mm	≤45°	75 t/h	Y180L-4	18.5 kw
