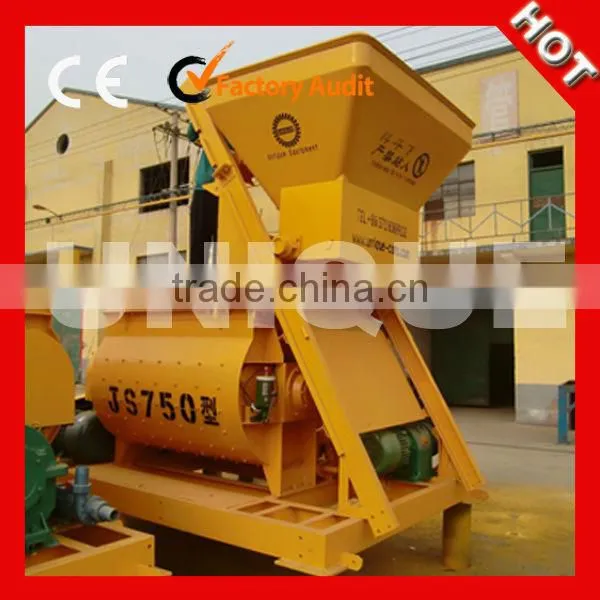

High Quality JS750 Concrete Mixer For Sale NZ

Specifications

High Quality JS750 Concrete Mixer For Sale NZ

Description of JS750 Concrete Mixer For Sale NZ :
JS500-1500 Concrete Mixer developed by our company is widely used by our global users. This machine can be used as a separated mixing machine or used as the supporting machine of the ready mix concrete plant. When matched with batching plant, they can form a simple mixing plant.

Features of JS750 Concrete Mixer For Sale NZ :
1. As a miniature double-horizontal-shaft forced type concrete mixer, this concrete mixing machine features short mixing time, good homogeneity and reliable operation.
2. Shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace.

Application of JS750 Concrete Mixer For Sale NZ :
This concrete mixer can be used to mix stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.

Technical Specification of JS750  Concrete Mixer For Sale NZ :

Model: JS750

Discharge volume: 750L

Charging volume: 1200L

Theoretical capacity: ≥35m³

Aggregate sizes: ≤60/80m

Working circle: 60s

Mixing blade

Speed: 30.5r/min

Quantity: 2×8

Mixing motor

Model: Y200L-4

Power: 30 kw

Lifting motor

Model: YEZ132M-4

Power: 7.5 kw

Pump motor

Model: 65DWB35-5

Power: 1.1 kw

Weight: 6150kg

Dimensions (L x W x H): 4550x2250x2450 mm
