Specifications
UTM40 Mini Ready-mixed Concrete Mixing Plants:1.Excellent environment protection
2.Perfect maintenance
3.High reliability

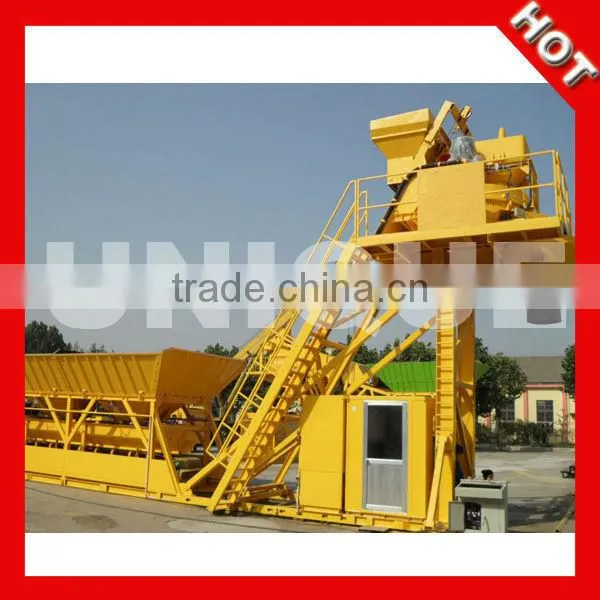

UTM-40 Mini Ready-mixed Concrete Mixing Plants
Descriptions of UTM-40 Mini Ready-mixed Concrete Mixing Plants :
The modular design without foundation and commissioning enables the mobile concrete mixing plant convenient movement and quick installation. It only takes three days from installation to use. All necessary facilities such as: control room, laboratory and maintenance room are equipped. Cost effective. It is an ideal choice for engineering.
General Information of UTM-40 Mini Ready-mixed Concrete Mixing Plants :
Capacity: 40 m3/h
Mixing Time: 60 S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 75 kw
Total Weight: 17 Ton
Total Dimensions: 15000×4150×7800 mm
Transportation: Truck Trailer
Technical Parameters of UTM-40 Mini Ready-mixed Concrete Mixing Plants :
1. MIXING SYSTEM
Twin Shaft Concrete Mixer: JS750
Volume:1250 L
Capacity:750 L
Paddle quantity:16 pieces
Paddle Speed: 30.5 r/min
Mixing Motor: 37 kw
2. AGGREGATE SYSTEM

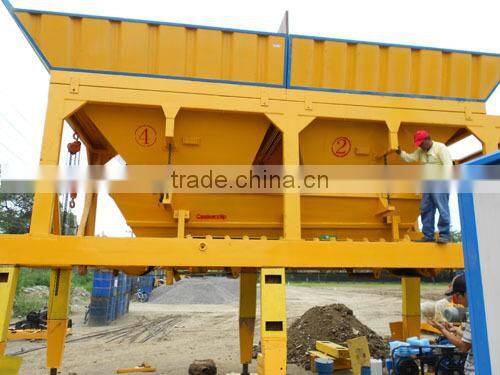

2.1Aggregate Batcher: PLD1200
Volume: 4×5m3=32
Sort of aggregate: 4
Capacity: 60 m3/h
Power: 7.5 kw
Sand vibrator: 0.37kw×2
2.2. Aggregate Belt Conveyor 1 unit
Width: 800 mm
Length: 18456mm
Speed: 1.6 m/s
Motor: 7.5 kw
3. CEMENT SYSTEM
3.1 Cement Silo 2 units
Capacity:50 Ton×2=100 Ton
Silo Diameter: Φ2800
3.2 Cement Screw Feeder 2 units
Diameter: Φ219 mm
Length: 9 m
4. ADDITIVE SYSTEM
Additive silo capacity: 1 m3
Pneumatic valve: Φ50 mm
Pump: 3kw
5. WATER SYSTEM
Submersible pump: 3kw
Water pump: 0.75kw
Water tank: 3 m3
6. AIR SYSTEM
Air Compressor: 1 unit
Power: 7.5kw
Pressure: 0.7Mpa
Air flew: 0.8 m3/min
7. WEIGHING SYSTEM
7.1 Aggregate weighing 1 unit
Weighing Capacity: 1.6 m3
Precision: ±2%
7.2 Cement weighing 1 unit
Weighing Capacity: 1m3
Precision: ±1%
7.3 Water Weighing 1 unit
Weighing Capacity: 150 kg
Precision: ±1%
7.4 Additive Weighing 1 unit
Weighing Capacity: 40 kg
Precision: ±1%
8. CONTROL SYSTEM:
PLC command and control operation
Main electrical components: Schneider
17’’ colorful computer
Manuel and Auto Control is freely changeable
Item | UTM-100 | UTM-80 | UTM-60 | UTM-40 |
Parameter Model | ||||
Capacity | 100m3/h | 80m3/h | 60 m3/h | 40 m3/h |
Mixing Time | 60 S | 60 S | 60 S | 60 S |
Max Aggregate Size | 60/80 mm | 60/80 mm | 60/80 mm | 60/80 mm |
Discharging Height | 3800 mm | 3800 mm | 3800 mm | 3800 mm |
Total Power | 120 kw | 110kw | 90kw | 75kw |
Total Weight | 35 Ton | 32 Ton | 20 Ton | 17 Ton |
Transportation | Truck Trailer | Truck Trailer | Truck Trailer | Truck Trailer |
