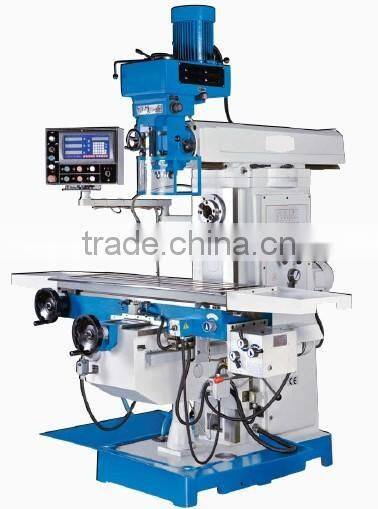

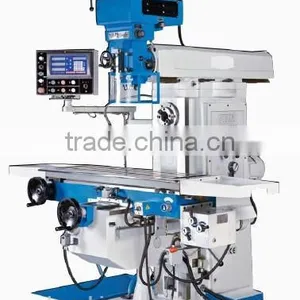

Universal radial milling machine X6336, table 1320x360mm
Negotiable
1 (Min. Order)
You May Like
-
Bed Type Vertical Milling Machine, model X7125 X7130, table 254x1270 254x1370 305x1370 305x1500mm
-
S Bed Type CNC Milling Machine, table 1370x330 1370x406 1600x510 1854x610mm
-
Universal Vertical and Horizontal Milling Machine, table 300x1300 300x1370 300x1500mm
-
Universal Precision Vertical Turret Milling Machine, table 230x1067/1246 254x1270 /1370 305x1370/1500 330x1370/1500mm
-
XK Universal Turret CNC Milling Machine, table 230X1067/1246 254X1270/1370 305X1370/1500mm
-
Multi purpose machine HQ400 500 800
Product Details
| Condition | New | Model Number | X6336 | |
| CNC or Not | Normal | Certification | CE ISO |
Product Description
Universal radial milling machine
Specifications | Units | X6336 |
Table size | mm | 1320×360 |
Number/Width/Distance of T-slot | mm | 3-18-80 |
Table travel | mm | 980×300×450 |
Spindle taper |
| ISO40(V) / ISO50(H) |
Spindle speed /steps | rpm | 70-3620/10steps(V) / 58-1800/12steps(H) |
Max. drilling dia. | mm | 30 |
Max. end milling width | mm | 125 |
Max. vertical milling dia. | mm | 25 |
Max. tapping dia. | mm | M16 |
Quill travel | mm | 140 |
Max. swivel angle of headstock |
| ±45° |
Vertical spindle axis to column surface | mm | 150-550 |
Vertical spindle nose to table surface | mm | 200-650 |
Horizontal spindle axis to table surface | mm | 0-450 |
Longitudinal/transverse feed | mm/min | 15-370 / 15-370 / 575 |
Spindle motor power | kW | 3.7(V) 4.0(H) |
Overall dimension | mm | 2070×2020×2330 |
Machine weight | kg | 2200 |
