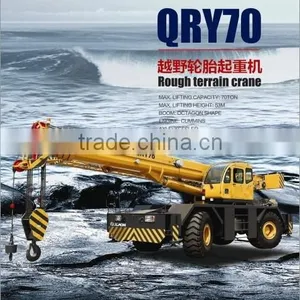

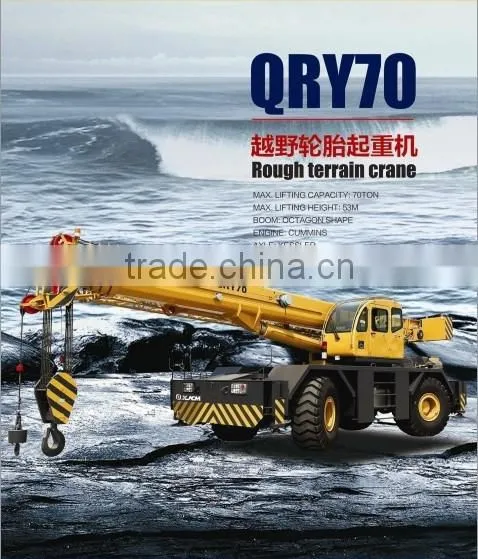

XJCM QRY70 ROUGH TERRAIN CRANE

Name: XJCM QRY70 ROUGH TERRAIN CRANE
Brand: XJCM
SKU: 143694728
Availability: InStock

Xuzhou Fanya Import & Export Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

1-70TON

Rated Loading Capacity:

70TON

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application 1-70TON

Rated Loading Capacity 70TON

Rated Lifting Moment 2502KN.M

Max. Lifting Load 70ton

Max. Lifting Height 37M

Place of Origin Jiangsu, China

Brand Name XJCM

Model Number QRY70

After-sales Service Provided Overseas service center available

Specifications

1.XJCM QRY70 ROUGH TERRAIN CRANE
2.Max lifting weight:70ton
3.Engine:CUMINS
4.Fully extended boom:37M

Category	Items							Unit	Parameters
Outline Dimension	Overall length							mm	13400
	Overall width							mm	3380
	Overall height							mm	3870
	Axle base							mm	4650
	Tread							mm	2350
Weight	Dead weight in travel state							Kg	48800
	Axle load	Front axle						Kg	22560
		Rear axle						Kg	26240
Power	Engine rated output							Kw (r/min)	199/2200
	Engine rated torque							N.m (r/min)	1000/1200~1500
Travel	Travel speed		Max. travel speed					Km/h	40
	Turning Radius		Min. turning radius					mm	6500
			Min. turning radius of boom head					mm	12100
	Min. ground clearance							mm	530
	Approach angle							°	24.5
	Departure angle							°	24.5
	Max. grade-ability							%	55
Main Lifting Performance Parameters	Max. total rated lifting load							t	70
	Min.. rated working radius							m	3
	Turning radius at swing table tail							m	4.7
	Max. load moment					Base boom		KN.m	2502
						Fully extended boom		KN.m	987
	Outrigger span					Longitudinal		m	7.75
						Lateral		m	7.6
	Lifting height					Base boom		m	10.2
						Fully extended boom		m	37
	Boom length					Base boom		m	10.2
						Fully extended boom		m	37
	Jib installation angle							°	0, 30
Working Speed Parameters	Boom luffing time				Boom raising time			s	85
					Boom descending time			s	85
	Boom telescoping time				Boom fully extended time			s	125
					Boom fully retracting time			s	95
	Max. swing speed							m/min	2
	Outrigger telescoping time			Horizontal outriggers			Extending synchronously	s	30
							Retracting synchronously	s	25
				Vertical outriggers			Extending synchronously	s	35
							Retracting synchronously	s	60
