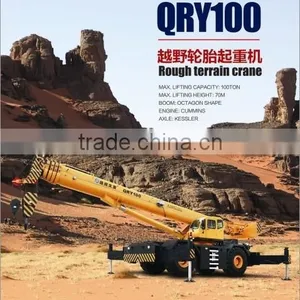

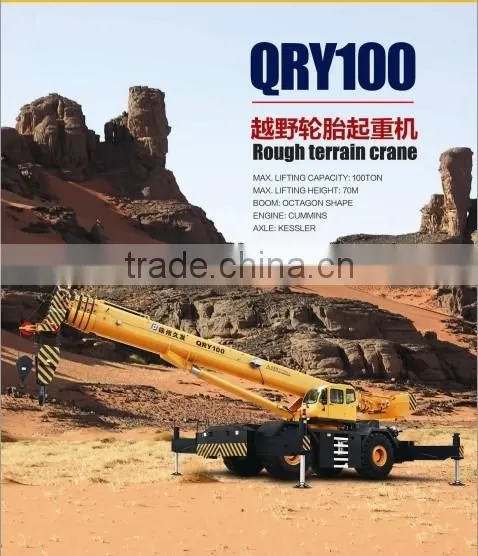

XJCM QRY100 ROUGH TERRAIN CRANE

Name: XJCM QRY100 ROUGH TERRAIN CRANE
Brand: XJCM
SKU: 143694730
Availability: InStock

Xuzhou Fanya Import & Export Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

1-100TON

Rated Loading Capacity:

100TON

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application 1-100TON

Rated Loading Capacity 100TON

Rated Lifting Moment 4500KN.M

Max. Lifting Load 100ton

Max. Lifting Height 51

Span 9.5M

Place of Origin Jiangsu, China

Brand Name XJCM

Model Number QRY100

After-sales Service Provided Overseas service center available

Specifications

1.XJCM QRY100 ROUGH TERRAIN CRANE
2.Max lifting weight:100ton
3.Engine:CUMINS
4.Fully extended boom:51M

Category	Items						Units	Parameters
Outline Dimension	Overall length						mm	16500
	Overall width						mm	3800
	Overall height						mm	4150
	Axle base						mm	4900
	Tread						mm	2805
Weight	Dead weight in travel state						Kg	83500
	Axle load	Front axle					Kg	40500
		Rear axle					Kg	43000
Power	Engine rated output						Kw/(r/min)	228/2100
	Engine rated torque						N.m(r/min)	1200/1000-1500
Travel	Travel speed			Max. travel speed			Km/h	39
	Turning radius			Min. turning radius			m	9.5
				Turning radius at swing table tail			m	5.2
	Min. ground clearance						mm	600
	Approach angle						°	19
	Departure angle						°	19
Main Performance	Max. total rated lifting load						t	100
	Min. rated working radius						m	3
	Max. load moment				Base boom		KN.m	4500
					Fully-extended boom		KN.m	780
					Fully-extended boom + Jib		KN.m	320
	Outrigger span				Longitudinal		m	8.7
					Lateral		m	8.2
	Lifting height				Base boom		m	14
					Fully-extended boom		m	51
					Fully-extended boom+Jib		m	70
	Boom length				Base boom		m	13.2
					Fully-extended boom		m	50
					Fully-extended boom+Jib		m	70
	Jib installation angle						°	0, 30
Working Speed Parameters	Luffing time				Boom raising time		s	80
					Boom descending time		s	75
	Boom telescoping time				Boom fully-extended time		s	280
					Boom fully retracting time		s	100
	Max. swing/slewing speed						r/min	2.0
	Outriggers telescoping time		Horizontal outriggers			Extending synchronously	s	30
						Retracting synchronously	s	20
			Vertical outriggers			Extending synchronously	s	30
						Retracting synchronously	s	20
						Full load	m/min	80
						No load	m/min	100
						Full load	m/min	85
						No load	m/min	100
