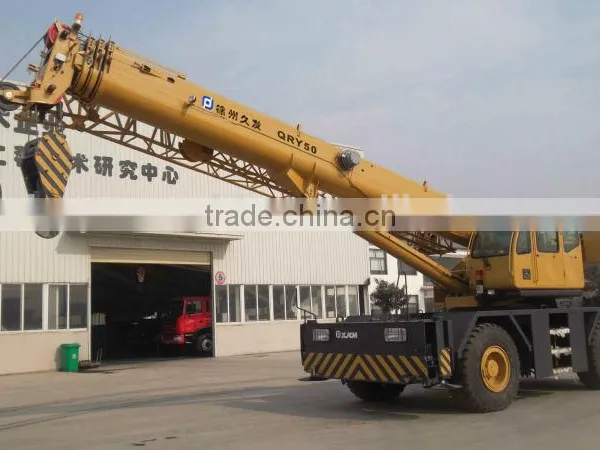

XJCM QRY50 NEW ROUGH TERRAIN CRANE

Name: XJCM QRY50 NEW ROUGH TERRAIN CRANE
Brand: XJCM
SKU: 143694734
Availability: InStock

Xuzhou Fanya Import & Export Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

1-50TON

Rated Loading Capacity:

50TON

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application 1-50TON

Rated Loading Capacity 50TON

Rated Lifting Moment 1575KN.M

Max. Lifting Load 50ton

Max. Lifting Height 32

Place of Origin Jiangsu, China

Brand Name XJCM

Model Number QRY50

After-sales Service Provided Overseas service center available

Specifications

1.XJCM QRY50 ROUGH TERRAIN CRANE
2.Max lifting weight:50ton
3.Engine:CUMINS
4.Fully extended boom:32M

Category	Items						Units	Parameters
Outline Dimension	Overall length						mm	12880
	Overall width						mm	3080
	Overall height						mm	3625
	Axle base						mm	3950
	Tread						mm	2500
Weight	Dead weight in travel state						Kg	36140
	Axle load	Front axle					Kg	19220
		Rear axle					Kg	16920
Power	Engine rated output						Kw/(r/min)	198/2500
	Engine rated torque						N.m(r/min)	970/1200-1700
Travel	Travel speed			Max. travel speed			Km/h	40
	Turning radius			Min. turning radius			m	6000
				Turning radius at swing table tail			m	3620
	Min. ground clearance						mm	400
	Approach angle						°	20
	Departure angle						°	19
Main Performance	Max. total rated lifting load						t	50
	Min. rated working radius						m	3
	Max. load moment				Base boom		KN.m	1575
					Fully-extended boom		KN.m	588
					Fully-extended boom + Jib		KN.m	300
	Outrigger span				Longitudinal		m	6.75
					Lateral		m	7.1
	Lifting height				Base boom		m	10.86
					Fully-extended boom		m	32
					Fully-extended boom+Jib		m	47.6
	Boom length				Base boom		m	10.25
					Fully-extended boom		m	30
					Fully-extended boom+Jib		m	47
	Jib installation angle						°	0, 30
Working Speed Parameters	Luffing time				Boom raising time		s	55
					Boom descending time		s	90
	Boom telescoping time				Boom fully-extended time		s	65
					Boom fully retracting time		s	52
	Max. swing/slewing speed						r/min	2.0
	Outriggers telescoping time		Horizontal outriggers			Extending synchronously	s	12
						Retracting synchronously	s	12
			Vertical outriggers			Extending synchronously	s	14
						Retracting synchronously	s	21
						No load	m/min	130
						No load	m/min	100
