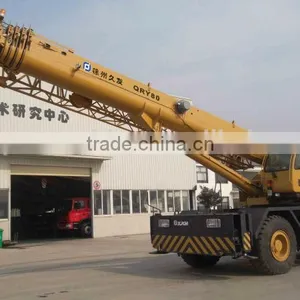

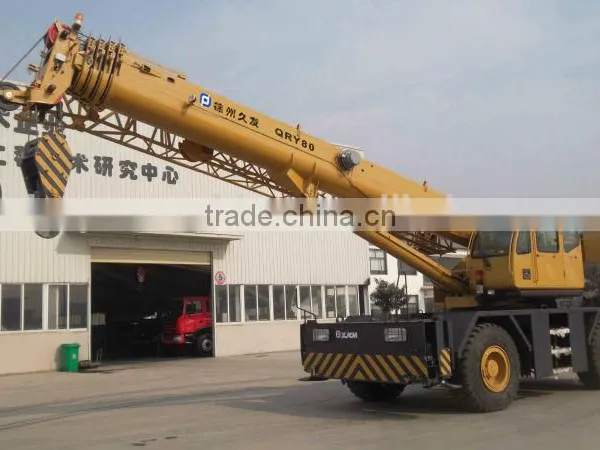

XJCM QRY80 ROUGH TERRAIN CRANE

Name: XJCM QRY80 ROUGH TERRAIN CRANE
Brand: XJCM
SKU: 143694736
Availability: InStock

Xuzhou Fanya Import & Export Co., Ltd.

US$ 400,000 - 450,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Application:

1-80TON

Rated Loading Capacity:

80TON

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application 1-80TON

Rated Loading Capacity 80TON

Rated Lifting Moment 2627KN.M

Max. Lifting Load 80ton

Max. Lifting Height 45

Span 7.675M

Place of Origin Jiangsu, China

Brand Name XJCM

Model Number QRY80

After-sales Service Provided Overseas service center available

Category	Items						Units	Parameters
Outline Dimension	Overall length						mm	14955
	Overall width						mm	3380
	Overall height						mm	3890
	Axle base						mm	4650
	Tread						mm	2520
Weight	Dead weight in travel state						Kg	49800
	Axle load	Front axle					Kg	23800
		Rear axle					Kg	26000
Power	Engine rated output						Kw/(r/min)	198/2500
	Engine rated torque						N.m(r/min)	970/1200-1700
Travel	Travel speed			Max. travel speed			Km/h	35
	Turning radius			Min. turning radius			m	7.675
				Turning radius at swing table tail			m	4.68
	Min. ground clearance						mm	530
	Approach angle						°	24
	Departure angle						°	24
Main Performance	Max. total rated lifting load						t	80
	Min. rated working radius						m	3
	Max. load moment				Base boom		KN.m	2627
					Fully-extended boom		KN.m	1133
	Outrigger span				Longitudinal		m	7.75
					Lateral		m	7.6
	Lifting height				Base boom		m	12.5
					Fully-extended boom		m	45
					Fully-extended boom+Jib		m	62
	Boom length				Base boom		m	12.1
					Fully-extended boom		m	45.6
					Fully-extended boom+Jib		m	45.6+18
	Jib installation angle						°	0, 30
Working Speed Parameters	Luffing time				Boom raising time		s	85
					Boom descending time		s	85
	Boom telescoping time				Boom fully-extended time		s	125
					Boom fully retracting time		s	95
	Max. swing/slewing speed						r/min	2.0
	Outriggers telescoping time		Horizontal outriggers			Extending synchronously	s	30
						Retracting synchronously	s	25
			Vertical outriggers			Extending synchronously	s	35
						Retracting synchronously	s	60
						No load	m/min	120
						No load	m/min	120
