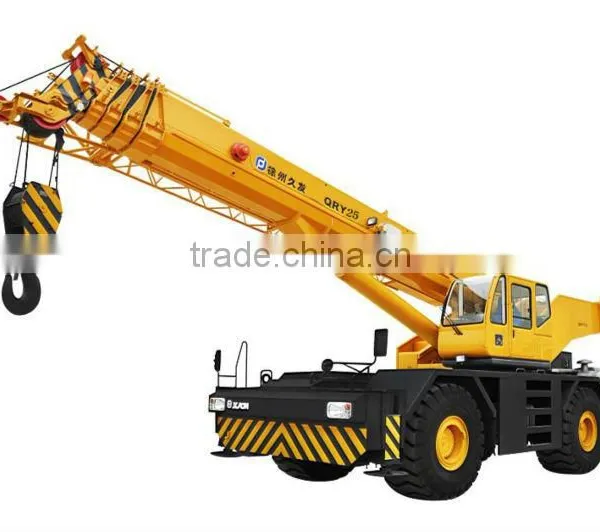

XJCM QRY25 ROUGH TERRAIN CRANE

Name: XJCM QRY25 ROUGH TERRAIN CRANE
Brand: XJCM
SKU: 143694738
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

1-25TON

Rated Loading Capacity:

25TON

Xuzhou Fanya Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application 1-25TON

Rated Loading Capacity 25TON

Rated Lifting Moment 1005KN.M

Max. Lifting Load 25ton

Max. Lifting Height 27.9

Span 6M

Place of Origin Jiangsu, China

Brand Name XJCM

Model Number QRY25

After-sales Service Provided Overseas service center available

Category	Items					Units	Parameters
Outline Dimension Parameters	Overall length					mm	11750
	Overall width					mm	2980
	Overall height					mm	3730
	Axle base					mm	3600
	Tread					mm	2500
Weight Parameters	Dead weight in travel state					Kg	27800
	Axle load	Front axle				Kg	14280
		Rear axle				Kg	13520
Power Parameters	Engine rated output					Kw/(r/min)	169/2500
	Engine rated torque					N.m(r/min)	900/1200-1700
Travel Parameters	Max. travel speed					Km/h	40
	Turning radius	Min. turning radius				m	5.1
		Turning radius at swing table tail				m	3.53
	Min. ground clearance					mm	400
	Approach angle					°	24
	Departure angle					°	21
	Braking distance (at 30km/h)					m	≤7.7
	Max. grade ability					%	55
Main Performance Parameters	Max. total rated lifting load					t	25
	Min. rated working radius					m	3
	Max. load moment			Base boom		KN.m	1005
				Fully-extended boom		KN.m	546
				Fully-extended boom + Jib		KN.m	324
	Outrigger span			Longitudinal		m	6.08
				Lateral		m	6.5
	Lifting height			Base boom		m	9.6
				Fully-extended boom		m	27.9
				Fully-extended boom+Jib		m	36
	Boom length			Base boom		m	9.18
				Fully-extended boom		m	27.78
				Fully-extended boom+Jib		m	35.08
	Jib installation angle					°	0,30
Working Speed Parameters	Luffing time			Boom raising time		s	75
				Boom descending time		s	75
	Boom telescoping time			Boom fully-extended time		s	80
				Boom fully retracting time		s	45
	Max. swing/slewing speed					r/min	2.0
	Outriggers telescoping time		Horizontal outriggers		Extending synchronously	s	25
					Retracting synchronously	s	15
			Vertical outriggers		Extending synchronously	s	25
					Retracting synchronously	s	15
	Hoisting speed (wire rope is at the 4^th layer)		Main winch		No load	m/min	85
			Auxiliary winch		No load	m/min	90
